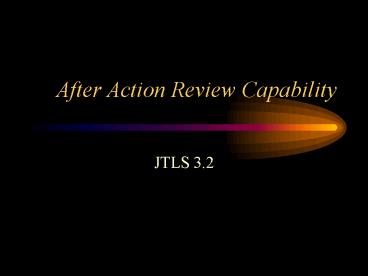

Title: After Action Review Capability


1
After Action Review Capability
  • JTLS 3.2

2
AAR Capability Goals
  • Provide a replacement for the Message Processor
    Client (MPC)
  • Provide data for AAR queries and analysis
  • Provide real time analysis of the CEP

3
AAR Capability Goals
  • Provide a replacement for the Message Processor
    Client (MPC)
  • Designed for NC3A use
  • Parsed MPP messages for relevant information
  • Used for NC3A status reporting
  • Provide data for AAR queries and analysis
  • Provide real time analysis of the CEP

4
AAR Capability Goals
  • Provide a replacement for the Message Processor
    Client (MPC)
  • Provide data for AAR queries and analysis
  • Weapon Expenditure
  • SAM/AAA Effectiveness/Threat
  • Provide real time analysis of the CEP

5
AAR Capability Goals
  • Provide a replacement for the Message Processor
    Client (MPC)
  • Provide data for AAR queries and analysis
  • Provide real time analysis of the CEP
  • Problem Solving
  • Where did these minefields come from ?
  • Reports
  • Battle Damage Assessments
  • Periodic Reports
  • Interim Mission Reports

6
AAR As a Component of theScenario Data
Repository (SDR)
Oracle Database
AARC
CEP
JODA
SDC
OEC
7
Scenario Data Repository (SDR)
AAR Client Static Records Of Objects, Object
Events, Engagements, Detections
AARC
CEP
JODA
SDC
OEC
8
Scenario Data Repository (SDR)
AARC
Scenario Data Client Dynamic Records Of
JODA Objects
CEP
JODA
SDC
OEC
9
Scenario Data Repository (SDR)
AARC
CEP
JODA
SDC
Order Entry Client Mechanism For 3RD Party
Entry Of Orders (includes order Verification)
OEC
10
AAR w/o Oracle Database
Data Files
CEP
JODA
AARC
11
AAR w/o Oracle Database
Oracle Database
Checkpoint Data Files
12
AAR Data
  • Objects
  • Object Events
  • Detections
  • Engagements

13
AAR Data
  • Objects
  • Object Events
  • Detections
  • Engagements

14
AAR Data - Objects
15
AAR Data - Objects
  • Generic Information
  • Name
  • Unique ID
  • Created by (Unique ID of creator)
  • Object Specific Information (example air mission)
  • Home Squadron
  • Time Over Target
  • Type Mission

16
AAR Data
  • Objects
  • Object Events
  • Detections
  • Engagements

17
AAR Data Object Events
  • Event Table
  • One table for each type of object
  • Time of event
  • Object Unique ID
  • Type of event
  • Associated Text
  • Associated Number (real or integer)
  • Object location (lat/lon altitude)

18
AAR Data Object Events
19
AAR Data Object Events
20
AAR Data Object Orders
  • CEP will assign current orders to some objects
  • Object Types
  • Air Missions
  • Ground Units
  • Naval Units
  • Naval Formations
  • Non-instantaneous orders
  • Provide better order history information

21
AAR Data Object Orders
22
AAR Data Object Orders
23
AAR Data
  • Objects
  • Object Events
  • Detections
  • ELINT
  • Object Detection
  • Engagements

24
AAR ELINT Detections
  • Turning On or Off an Emitting Target
  • Specific Target
  • Emitter Type
  • Jammer
  • Radar
  • ADA Fire Control
  • Emitter Subcategory Name
  • Emitter Side
  • Emitter Location (lat/lon altitude)

25
AAR Object Detections
  • Detections Filed with AAR at Time of Detection
  • Time of Report is Filed with the Detection Event
  • Some Report Times will Be Zero
  • Air Mission
  • HRU

26
AAR Object Detections
  • Detection Event Table
  • Detection Time
  • Report Time
  • Detection Type
  • Detecting Object
  • Detecting Sensor
  • Detected Object Table
  • Object ID
  • Object Capability
  • Object Location

27
AAR Object Detections
HUMINT Tactical Combat Air Air RECCE External Rada
r Sonar Visual Civil Affairs ELINT
  • Detection Event Table
  • Detection Time
  • Report Time
  • Detection Type
  • Detecting Object
  • Detecting Sensor
  • Detected Object Table
  • Object ID
  • Object Capability
  • Object Location

28
AAR Data
  • Objects
  • Object Events
  • Detections
  • Engagements

29
AAR Engagements
  • Air-Air
  • Firing Mission
  • Victim Mission
  • Locations
  • Type Weapon
  • Number of Weapons
  • Pk
  • Number of Hits/Kills
  • Surface-Air
  • Other Losses Air
  • Surface Damage

30
AAR Engagements
  • Air-Air
  • Surface-Air
  • Firing Target
  • Victim Mission
  • Locations
  • Type Weapon
  • Number Weapons
  • Pk
  • Number Hits/Kills
  • Other Losses Air
  • Surface Damage

31
AAR Engagements
  • Air-Air
  • Surface-Air
  • Other Losses Air
  • Reason
  • Victim Mission
  • Victim Location
  • Number Hits/Kills
  • Surface Damage

32
AAR Engagements
  • Air-Air
  • Surface-Air
  • Other Losses Air
  • Reason
  • Victim Mission
  • Victim Location
  • Number Hits/Kills
  • Surface Damage

Controller Crash Landing Fuel
33
AAR Engagements
  • Air-Air
  • Surface-Air
  • Other Losses Air
  • Surface Damage
  • Dual Table Structure
  • Surface Damage Event Killer Information
  • Victim Information

34
AAR Surface Engagement
  • Surface Damage Event
  • Event ID
  • Targetable Weapon
  • Number Weapons
  • Type Attrition
  • Primary Victim
  • Impact Location
  • Victim Information

35
AAR Surface Engagement
  • Surface Damage Event
  • Event ID
  • Targetable Weapon
  • Number Weapons
  • Type Attrition
  • Primary Victim
  • Impact Location
  • Victim Information

Air Strike Artillery / Missile Combat (Lanchester
/ HRU) Controller Mines Chemical Chemical
Exposure Nuclear Nuclear Exposure Disease
Failure Other (External Damage)
36
AAR Surface Engagement
  • Surface Damage Event
  • Victim Information
  • Victim ID
  • Victim Location
  • Type Damage
  • Combat System
  • Supply Category
  • Hull
  • Catapult
  • System Name
  • Potential Victims, Damaged, Killed

37
AAR Table Structure
  • No Foreign Keys
  • Bitmap Keys Will Be Added
  • Surface Engagement Type Attrition
  • Air-Air Engagement Type Weapon
  • Master Lookup Table for Unique IDS
  • Object Unique ID
  • Type Object (Air Mission, Detection Event, etc)
  • Object Name

38
AAR Collection Flag
  • AAR Collection ON by Default
  • Controller Has Ability to Turn Off
  • Turning On After a Lapse of Time Will Result in
    Disjointed Data

39
AAR Collection Flag
40
AAR Checkpoint / Recovery
  • Script to Perform AARC Checkpoints
  • Default Action is Database Dump
  • User May Modify the Script
  • If AAR Client is Not Running, Queued Data is Part
    of CEP Checkpoint

41
After Action Review
  • Whats Not Included
  • Fire Missions
  • Cruise Missiles
  • Desired Mean Point of Impact (DMPI)
  • Missed Detections
  • Logistics

42
After Action Review
  • QUESTIONS ?
