IPRO 344 Class meeting

1

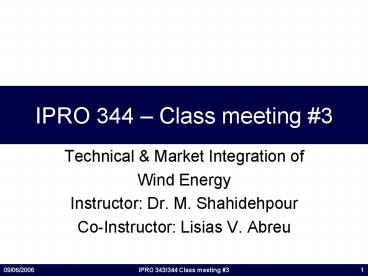

IPRO 344 Class meeting 3

• Technical Market Integration of
• Wind Energy
• Instructor Dr. M. Shahidehpour
• Co-Instructor Lisias V. Abreu

2
Outline

• Team Minutes Weekly Update
• Project Overview
• Part 1 The Wind Resource
• Part 2 Fundamentals of Wind Power Plants
• In-class Assignments Homework

3
Project Overview

• Wind power plant design
• Draw designs in AutoCAD
• Draw site in SketchUp! (Terrain contour)
• Technical Power Market Integration Assessment
• Impact on the Unit Commitment
• Impact on the Branch Congestions
• Impact on the Electricity Price
• Other impacts

4
PART 1 - The Wind Resource
5
The Nature of the Wind

• Wind is the roughly horizontal movement of air
  (as opposed to an air current) caused by uneven
  heating of the Earth's surface.
• Understanding the characteristics of a wind
  resource is critical to the wind energy
  exploitation
• Variability is the most striking characteristic
  since it is amplified by the cubic relationship
  to available energy

6
The Nature of the Wind

• Wind Energy varies with the cube of Wind Speed
• where, P ? Power from the wind
• ?a ? Air density
• AT? Rotor area
• V ? Wind velocity

7
Variability

• Spatial variability
• Latitude
• Amount of insolation
• Surface temperature
• Humidity
• Physical Geography
• Proportion of land an sea
• Size of land masses
• Presence of mountains or plains
• Top of hills have higher wind velocities than
  valleys

8
Variability

• Spatial variability (cont.)
• Type of vegetation
• Reflection or absorption of solar insolation
• Vegetation may reduce significantly wind velocity
• Urban Areas
• Buildings also reduce significantly wind velocity

9
Variability
Source T. Walter, Weather Climate Course
Notes, 2006
10
Variability
Source Nelson Science 10
11
Variability

• Temporal variability
• Wind variations may occur in five-, ten-years
  cycles or even more
• Such long-term variations are not well understood
• Seasonal variations
• Diurnal variations
• High-frequency wind fluctuations, or Turbulence

12
Variability
Source D. Hodell and R. G. Thomas., 2000
13
Turbulence

• Turbulence refers to fluctuations in wind speed
  on a fast time-scale, typically less than 10 min.
• It occurs because of
• Friction with earth topographical features such
  as hills, mountains and cities.
• Thermal effects which can cause air masses to
  move vertically
• It is a complex process, but it can be
  represented by statistical methods
• The higher it is, the lesser are the effects of
  turbulence on the wind.

14
Turbulence
Source Charles Darwin University, Australia 2006
15
Turbulence
Source Charles Darwin University, Australia 2006
16
Wind Speeds

• Wind Speed is the average rate of air motion, or
  the distance air moves in a specified unit of
  time.
• Mean wind speed is the arithmetic or graphical
  average wind speed during the period of
  observation.
• A wind gust is a sudden change in wind speed
  characterized by a variation of 10 knots between
  peak and lull.

17
Wind Speeds

• Classes of Wind Power Density

Source NWTC, 1993
18
Wind Speed
Source DOE, 1985
19
Wind Speed
Source DOE, 1985
20
Wind Speed
Source DOE, 2001
Source DOE, 1986
21
PART 2 Fundamentals of Wind Power Plants
22
Types of Wind Turbines
23
Horizontal-axis Wind Turbines

• The axis of rotation is horizontal to the ground
• It is also parallel to the wind stream
• Most commercial wind turbines
• Low cut-in wind speed
• Easy furling (rotation control)
• Relatively high power coefficient
• Generator and gearbox need to be placed at the
  top of the tower
• Need a mechanism to orient the turbine

24
Horizontal-axis Wind Turbines

• Three bladed
• Simplified design
• Most modern wind turbines are three-bladed
• Two bladed
• Saves the cost of one rotor blade and its weight
• Require higher rotational speed
• Single bladed
• Saves the cost of two rotor blades and their
  weight
• Requires higher rotational speed
• Visual impact
• Multi bladed
• Higher starting torque
• Water pumping applications

25
Single bladed wind turbines
Source Wikipedia, 2006
26
Two bladed wind turbines
Source Wikipedia, 2006
27
Three bladed wind turbines
Source Wikipedia, 2006
28
Multi-bladed wind turbines
Source Wikipedia, 2006
29
Vertical-axis Wind Turbines

• The axis of rotation is vertical to the ground
• Almost perpendicular to the wind direction
• Can receive wind from any direction
• No need of orientation mechanism
• Generator and Gearbox can be housed at the ground
  level
• Usually not self-starting
• Blades have to pass through aerodynamically dead
  zones lowering efficiency
• May require guy wires to support structure

30
Vertical-axis Wind Turbines

• Darrieous rotor
• Works due lift force from a set of airfoils
• Blades are shaped like egg beaters
• Savonius Rotor
• Two half cylindrical blades arranged in S shape
• Very simple construction
• Musgrove rotor
• H shaped blades
• Classifies as lift and drag machines

31
Darrieus wind turbine
Source Wikipedia, 2006
32
Savonius wind turbine
Source Pcon Windkraft, 2006
33
Musgrove wind turbine
Source Wikipedia, 2006
34
Wind Project Types

• Small-scale
• Can be stand alone or grid-connected
• Residential, small farm, or small business-sized
  turbines (Usually 100 kW or smaller)
• Majority of the electricity is used on site
• In many states, small wind turbines are eligible
  for net metering programs.
• Small Distributed Wind Projects
• Single or small clusters of utility-scale wind
  turbines
• Owned and operated by individual farmers,
  farmer-owned business entities, local investors,
  or large energy consumers to offset their own
  consumption.
• These projects typically interconnect to existing
  local power distribution lines.

35
Wind Project Types

• Community Wind Energy
• Various shapes and sizes
• Have some level of local or public involvement,
  equity, initiation, and control
• Examples
• School-owned wind turbines
• Farmer owned wind cooperatives
• Local public power wind projects.

36
Wind Project Types

• Large-Scale Wind Power Plants
• Large arrays of wind turbines
• Concentrated in one single area
• Single power purchase agreement
• Usually financed by large institutional investors
  based outside the local area.
• Often owned and operated by corporate entities,
  and land easements are signed with property
  owners.
• Require new transmission lines to the closest
  substation

37
Community Wind Energy
Source Spirit Lake, Iowa. DOE, 2002
38
Large-scale wind power plants
Source Kappel Wind Farm 9,6 MW, 24 turbines,
located at Lolland, Denmark Technical University
of Denmark , 2002
39
In-class Assignments Homework

• Work on Project Plan
• Use Google EarthTM or NASA World WindTM to make
  site blueprints
• For next class
• Site pictures and blueprints in digital media
• Hardcopy of Project Plan for in-class review by
  the instructor
• Bring Meetings Minutes and present weekly update
