Implicit Fairing of Arbitrary Meshes Using Diffusion and Curvature Flow

1

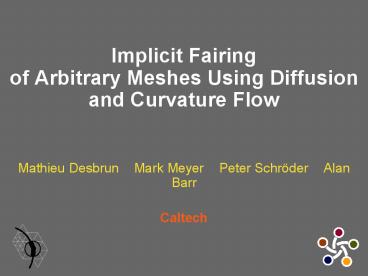

Implicit Fairing of Arbitrary Meshes Using
Diffusion and Curvature Flow

• Mathieu Desbrun Mark Meyer Peter Schröder
  Alan Barr
• Caltech

2
Smoothing Arbitrary Meshes

• Context
• Meshes often come from 3D scans
• Noisy
• Non uniform triangles
• No parameterization, just positions in space
• Smoothing removal of rough detail features
• while preserving the global shape

3
Current Smoothing Results

• OK on semi-uniform meshes, Problems
  with non uniform
• yet slow on large meshes
  meshes distortion!

4
Contributions (I)

• Implicit fairing
• Implicit integration scheme for efficiency
• Exact volume preservation
• Constraints during smoothing

5
Contributions (II)

• Two new operators
• Laplace operator that respects length scale
• Curvature normal operator, for better shape
  denoising

6
Previous Approaches (I)

• Early work (CAGD)
• Minimization of complex functionals
• Ex
• Taubin 95 (and follow-ons)
• Signal processing approach using L(M)

(low-pass filter)
7
Previous Approaches (II)

• Iterative energy minimization
• Membrane energy
• Follows the Laplacian
• Iterations of an explicit Euler scheme
•
  (Diffusion)

8
Implicit Integration (I)

• Diffusion
• Strict stability requirements
• Small time steps for explicit integration
• Implicit schemes are strongly suggested
• BW98

9
Implicit Integration (II)
Explicit Euler scheme
Implicit Euler scheme
vs.
10
Introducing Implicit Fairing

• Explicit integration

• Small time steps for large meshes

11
Introducing Implicit Fairing

• Implicit integration for larger time steps

• (PB) Conjugate Gradient for efficiency
• Equivalent to

12
Volume Preservation

• Diffusion induces shrinkage!
• Enforce exact volume preservation
• Compute volume
• Rescale after integration step(s)
• Incorporate other invariants
• Volume, surface area, ...
• Build directly into PDE

13
Constraint Enforcement

• Fixed points/Fixed regions
• Set the Laplacian to zero
• Soft constraints
• Locally adjust smoothing amount (l)
• Spray-paint the object directly
• Complex constraints BW98

14
Where are we now? (I)

• Implicit fairing
• Implicit integration scheme for efficiency
• Exact volume preservation
• Constraints during smoothing

15
Where are we now? (II)

• Two new operators
• Laplace operator that respects length scale
• Curvature normal operator, for better shape
  denoising

16
Regular Diffusion

• Problem with the umbrella operator
•
  smoothed as much as
• It assumes a regular parameterization!

17
Regular Diffusion Effects
Initial mesh
Regular fairing
18
Accurate Diffusion

• Length-scale weighted operator
• (Fujiwara operator)
• Creates scale-dependent operator
• But stability issues
• Explicit time step too small dt lt lmin2 / l
• Implicit integration a must!

19
Regular/Accurate Diffusion
Scale-dependent fairing
Initial mesh
Regular fairing
20
More Results With Diffusion
Initial mesh
21
More Results With Diffusion
After upsampling and one fairing
22
Shape Denoising

• Why diffuse the noise?
• Normal component
• Tangent component, distorting the shape!
• Alternatively curvature flow equation
  (Laplace-Beltrami)
• Problem how can we find k n reliably?

23
Discrete Curvature

• Differential geometry definition
• After derivation
• Dependent on angles and lengths
• Zero curvature ensured when flat

24
Curvature operator
Curvature visualization using false colors
25
Curvature Flow Evaluation
Initial Mesh
Regular Diffusion
Curvature Flow
Improved Diffusion
26
Results on 3D Scanned Data
Initial mesh
After one fairing
27
Results on 3D Scanned Data
28
Video
29
Conclusion

• New tools for irregular meshes
• Implicit fairing
• Adds efficiency/stability
• Improved Laplace operator
• Limits distortion on arbitrary meshes
• New curvature normal operator
• Shape denoising with curvature flow

30
Future Work

• More smoothing
• Other kinds of geometrical flow
• Edge preservation in computer vision
• Modeling
• Prescribed curvature normals
• Animation
• Applications of curvature operator
• Info? http//www.multires.caltech.edu/mathieu
