GIS for Population and Housing Census of Bhutan 2005

1

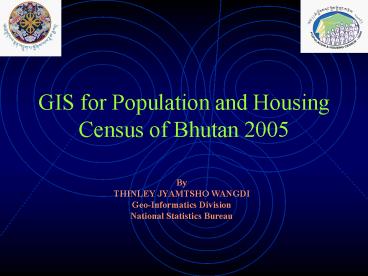

GIS for Population and Housing Census of Bhutan
2005
By THINLEY JYAMTSHO WANGDI Geo-Informatics
Division National Statistics Bureau
2
PRE-CENSUS MAPPING HOUSE LISTING

• To ensure complete coverage, the whole country
  was
• segregated into 6800 Enumeration Area maps
• exhaustively.
• Every Structure ( Temporary, Permanent, caves,
• shelters) have been coordinated with GPS
  (Global
• Positioning System) system.
• Parallel to the Mapping of Enumeration Areas,
  the house
• listing for every structure had been
  accomplished.

3
GIS for Population Housing Census 2005

• Data capture from the Topographical maps.
• Production of Enumeration Area maps both in
  digital and
• analogue forms.
• Delineation of Enumeration Area boundary through
  given
• administrative units and sub-units (Dzongkhag,
  Geog
• chiwog boundary).
• To decide the data dissemination administrative
  level.
• To decide the data analysis administrative level
  for future
• planners and policy makers.
• To set the base reference for future population
  and Housing
• census of Bhutan.

4
Objectives of GIS for PHCB-2005

• Generation of Geo-database for PHCB 2005
• To facilitate and widen the scope in the use of

• census data especially at the smaller area
  level.
• To produce the socio-economic maps using the
• census data at different categories.
• Dissemination of Census data at different level
  for
• different user organizations.
• Finally to create the bench mark data for the
  next
• population and housing census of Bhutan.

5
GIS PROCESSING
BUILD DATA
DESIGN THE DATABASE
INPUT SPATIAL DATA (DIGITIZER)
EDIT AND CREATE TOPOLOGY
INPUT ATTRIBUTE DATA
MANAGE AND MANIPULATE THE DATA
ANALYZE THE DATA
PRESENT THE RESULT OF ANALYSIS
6
REQUIREMENTS

• The GIS software used for Population and
• housing Census 2005 from ESRI products
• like Arcview or Arc info or Arcgis of latest
  version.
• The office of the census commissioner had
  procured
• the one GIS softwares as it entails huge
  budget.
• The market rate for one license Arcgis is
  about Nu.
• 1.9 million.

7
WORK METHODOLOGY

• Digitizing of the Topographical maps in
  different layers of the available Topographical
  sheets in 150000
• Mosaicing of the same layers to include in the
  administrative
• boundary
• Cropping of the mosaiced layers as per the
  existing Dzongkhag
• boundary.
• Cropping of digital layers to the geog level in
  Dzongkhag.
• Cropping of Digital layers to the Chiwog level
  in Geogs.
• Creation of Shp.file from GPS coordinates.
• Preparation of Enumeration Area Maps digitally.
• Merge EA maps into chiwog maps for further
  processing.
• Accordingly merge for geog and Dzongkhag for
  processing.

8
Mosaicing of topo sheets
9
Mosaicing of topo sheets
Clipping of topographical layers for Gasa
Dzongkhag
10
Clipped topo layer (river) for one Dzongkhag
Mosaicing of topo sheets
11
Clipped topo layer (river) for one Dzongkhag
Mosaicing of topo sheets
12
START
Aggregate EAs to chiwog
Scanning
Chiwog information
Chiwog Map
Georeferencing
.RLC
Aggregate Chiwogs to geog
Digitizing
Geog information
Geog Map
Vector files
Mosaicing
Aggregate Geogs to Dzongkhag
Adm. Boundary
Dz. cropping
Dzongkhag Map
Dzongkhag information
Geog cropping
Aggregate Dzongkhag to National level
GPS data upload
Geog Map
National information
EA delineation
13
(No Transcript)
14
Database Design

• At what level the information dissemination had
  to be done
• The information in database to be aggregated
• To calculate the statistical factors
• How to link the processed data with the map
  layers.
• The SPSS or the CSPRO softwares compatibility
  should be
• explored for data linking and matching.
• The data dissemination strategy should be
  planned well.

15
TRAININGS

• Basic concept of GIS
• Basics of GIS operations
• Spatial operations in GIS
• Statistical operations in line with spatial data
• Overlay Analysis
• More hands on exercise on analysis with emphasis
  on Population
• and Housing census
• Preparation of different thematic maps
• To extract the population indicators
• Preparation of Population Atlases
• If possible analysis using the other
  topographical conditions
• Any other exercises

16
DATA DISSEMENATION
17
ArcSDE and ArcIMS ServerPHCB 2005

• Objectives
• To set up the Window 2003 Server on New DELL 2950
  server
• To Set up and configure SQL Server and ArcSDE
  server
• To Set up and configure the ArcIMS server
• Data Migration to ArcSDE Multi-user Geodatabase
• Application Migration
• To publish selected Geog, Dzongkhag, rural
  settlements and urban
• features
• 7. Capacity Building

18
Objective-1 Window 2003 Server

• DELL 2950
• Window 2003 Server to host SQL server, ArcSDE
  and ArcIMS
• Hosted by National Statistics Bureau (NSB)
  System Network
• Network Interface Card Local IP for ArcSDE
  192.168.124.11
• Network Interface Card Global IP for ArcIMS
  203.175.8.86

19
(No Transcript)
20
Objective-2 SQL and ArcSDE Server

• SQL Server 2000 SP3
• ArcSDE 9.1
• Optimizing the Performance of ArcSDE
• Users and Database Access
• PHCB2005 ArcSDE Multi-user Geo-database
• Keywords PHCB2005_VECTOR
• Keywords PHCB2005_RASTER

21
(No Transcript)
22
Objective-3 ArcIMS Server

• Set up the ArcIMS server to publish the indicator
  maps through NSB Web Ste

23
ArcIMS Components
Window 2003 server, IIS Server, Tomcat Servlet
Engine, J2SDK
24
(No Transcript)
25
Objective-4 Data Migration

• Personal Geodatabase and Shape Files to PHCB2005
  ArcSDE Multi-user Geodatabase
• ArcView and ArcGIS Clients can access the data

26
(No Transcript)
27
Objective-5 Application Migration

• To migrate Shape File based ArcIMS website to
  ArcSDE Multi-user Geodatabase based ArcIMS Website

28
GUI Design is the same
Titles
Layers (Groups)
Tools
Index Map
Map
Query, Buffer, User Interaction
29
Internet Clients
30
Thimphu Wide Area Network (WAN)
31
Other organization
Other organization
Thimphu WAN
32
Dzongkhag Indicator Maps
Based on Published Indicator Map Atlas

• Administration
• Travel Time
• Education
• Employment
• Health
• Migration
• Roofing Materials
• Wall Materials
• Household Heads

• -Land Plots
• Media Access
• Drinking water
• Energy for lighting
• Energy for cooking
• Population
• Sanitary
• Happiness

33
Geog Indicator Maps
Based on Published Indicator Map Atlas

• Administration
• Population
• Education
• Travel Time
• Employment
• Health
• Roofing Materials
• Wall Materials
• Household Heads

• -Land Plots
• Media Access
• Drinking water
• Energy for lighting
• Energy for cooking
• Sanitary
• Happiness

34
Urban Blocks and Foot Prints
Urban Blocks Urban Foot Prints Urban Roads
35
Rural Settlements

• Individual Rural Settlements with HOH and Remark
  Attributes

36
Objective-7 Capacity Building

• How to install and configure Window 2003 Server
• How to install and configure SQL Server 2000 SP3A
• How to install, configure and optimize ArcSDE
  Server
• How to install, configure and optimize the ArcIMS
  Server
• How to work with
• - ArcIMS Author
• - ArcIMS Administrator
• - ArcIMS Designer
• - Basics of ArcXML and HTML viewers
• -Training to the users
• - How to use GUI (Half Day)
• - User Training Manual in PDF Format
  (Downloadable)

37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
(No Transcript)
51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
