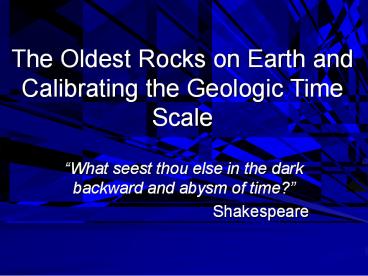

The Oldest Rocks on Earth and Calibrating the
Geologic Time Scale

• What seest thou else in the dark backward and
  abysm of time?
• Shakespeare

2
Mile Markers in Deep Time

• The fossil-based framework for Earth history is
  known as the GEOLOGIC TIME SCALE
• Units Eras, Periods, Epochs, Ages

3
What do we do with rocksthat dont contain
fossils?

• How do we determine the age of rocks that are
  too old to have abundant fossils?
• How do we determine the age of igneous and
  metamorphic rocks that do not contain fossils?
• How do we put numbers on age?
• What is the oldest rock on Earth and how do we
  know its age?

4
Oldest Rock on Earth

• Acasta Gneiss NWT, Canada
• 3.96 Ga /- 3 Ma
• How was this determined?
• Revolutions still more remote appeared in the
  distance of this extraordinary perspective. -
  Playfair

5
Oldest Minerals on Earth

• Acasta Gneiss
• 3.96 Ga /- 3 Ma
• Oldest Minerals
• Sand grains of zircon
• Dated at 4.4 Ga /- 8 Ma
• From sandstone in Australia

6
How do we know when these events happened?

• Fossils give us the relative age relationships
  (sequence of events)
• Only Radioactive Decay can be used to establish
  numerical age

7
How does it work?

• Some chemical elements are unstable
• They break down (radioactive decay) by undergoing
  changes in the nucleus
• This is a Nuclear reaction (not chemical)
• Changes in nucleus produce
• A new chemical element daughter product
• Energy in the form of radiation

8
How does it work?

• These nuclear reactions occur at a constant rate
  this is the half life
• Since rate is constant, we can know how long the
  clock has been ticking.
• Time is calculated by measuring the number of
  atoms of the daughter product and the number of
  atoms of the parent element.

9
Where do we find these parent and daughter
elements?

• Mineral crystals that are closed systems
• Minerals like zircon are ideal
• Contain small amounts of Uranium
• Very tough and durable a sealed container
• Age that is calculated is the age of
  crystallization

10
Can we measure the age of all rocks?

• Ages are typically measured for igneous rocks
  such as layers of volcanic ash, lava flows and
  cross-cutting intrusions.
• Ages may also be measured for some metamorphic
  rocks age of metamorphism.
• Ages are tied to the Geologic Time Scale which is
  based on fossils.

11
The Silurian Devonian Boundary

• Boundary is defined at the Global Stratotype at
  Klonk in the Czech Republic
• Index Fossil is the Graptolite Monograptus
  uniformis uniformis
• Auxiliary Index is the conodont Icriodus
  woschmidti woschmidti

12
SUNY Oneonta Students and Calibrating the Age of
the Silurian Devonian Boundary
13
SUNY Oneonta Students and Calibrating the Age of
the Silurian Devonian Boundary
14
Calibrating the Silurian Devonian Boundary

• Helderberg Group Silurian Devonian limestones
  in New York
• Coeymans Formation and Kalkberg Formation yield
  the index conodont I. woschmidti
• K-bentonites (volcanic ashes) in New Scotland
  Formation
• Microphenocrysts of zircon extracted from
  K-bentonite
• Uranium Lead system used to determine age of
  Helderberg ash
• Occurrence within zone of lowest Devonian index
  fossil means age of ash approximates age of
  boundary
• S-D Boundary placed at 418 Ma
• 417.6 /- 1.0 Ma (Tucker, et. al. 1998)
