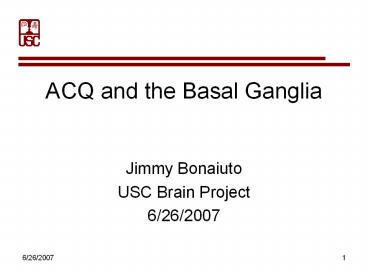

ACQ and the Basal Ganglia

1
ACQ and the Basal Ganglia

• Jimmy Bonaiuto
• USC Brain Project
• 6/26/2007

2
Actor-Critic Learning

• Actor learns action policy
• Critic learns value functions
• Different actor-critic architectures have been
  proposed for learning different value functions
• V(s) State values (most common)
• V(a) Action values
• Q(s,a) State, action pair values

3
Actor-Critic Architecture

• Core Data recording of midbrain dopaminergic
  neurons in appetitive learning tasks (Schultz,
  1992 Schultz, 1998)

(from Barto, 1995)
4
Critic V(s), V(a), or Q(s,a)?

• How do dopamine cells know about reward value?
• Largest striatum input is from cortex (Haber and
  Gdowski, 2004)
• V(s) and Q(s,a) learning may require the ventral
  striatum, SNc, and/or VTA to receive a copy of
  the same cortical projections that the dorsal
  striatum receives (state information)
• V(a) may only require a projection from the
  dorsal striatum or globus pallidus (actor) to the
  ventral striatum, SNc and/or VTA (critic)
• Largest forebrain input to dopamine neurons is
  striatum (Haber and Gdowski, 2004)
• V(a) may be more biologically plausible in terms
  of connectivity

5
Actor-Critic in the Basal Ganglia

• Dopamine targets (striatum) are site of value and
  policy learning (Suri Schultz, 2001)
• The striatum split into dorsal and ventral
  divisions (some say dorsolateral and
  ventromedial) (Voorn et al., 2004)
• Ventral striatum inputs from limbic structures
  (critic?)
• Dorsal striatum connected with motor and
  associative cortices (actor?)

6
Role of Dopamine

• (Joel Weiner, 2000) Dopamine neurons in the
  ventral tegmental area (VTA) and substantia
  nigra pars compacta (SNc)
• VTA projects to ventral striatum learning state
  values
• SNc projects to dorsal striatum policy learning

• Little difference in VTA and SNc firing (Schultz
  et al., 1993)
• Predicted by TD learning equation since the
  policy and values are both updated using TD error

7
ACQ

• Reinforcement learning should maximize total
  utility, not necessarily total reward.
  Motivations map outcomes to utilities (Niv et
  al., 2006)
• Multiple critics one for each dimension of
  interoception (hunger, thirst, etc.)
• Q(s ,a), s internal state, aaction
• Actor
• Composite policy
• Desirability based on internal state
• Executability based on environmental state
• Eligibility trace from mirror and canonical motor
  signals

i
i
8
ACQ Actor/Multiple Critics
xexecuted action xrecognized action

9
ACQ - Eligibility Trace

• executed action (from efference copy)
• recognized action (from mirror system)

Idealized situations (perfect recognition) Realist
ic implementation would have confidence values
between 0.0 and 1.0 for x and x, but the pattern
of values for e would be the same

10
ACQ - Weight Modification

• Desirability and Executability updated using same
  eligibility and reinforcement signals
• Requires different weight change rules
• Desirability
• Executability

Dont update the value of the last action unless
some action is currently recognized
Step function of eligibility trace Makes sign
of weight change depend on r(t)

Tonic dopamine level, d, added to TD error
Makes sign of weight change depend on e(t)
11
Multiple Critics Q(s ,a)
i

• Is there evidence for multiple critics gated by
  interoceptive information?
• The lateral hypothalamus does project to the SNc,
  VTA, and the ventral striatum (Saper et al.,
  1979 Fadel Deutch, 2002 Brog et al., 1993)
• The accumbens shell of the ventral striatum is
  reciprocally connected with the lateral
  hypothalamus and has been called a sensory
  sentinel or visceral striatum (Kelley, 1999,
  2004)
• Motivational state, such as food deprivation can
  influence the magnitude of dopamine release in
  the ventral striatum (Wilson et al., 1995 Ahn
  Phillips, 1999)
• Sexual satiety is signaled by serotonin from the
  lateral hypothalamus to the ventral striatum,
  which reduces dopamine levels (Lorrain et al.,
  1999)

12
Internal State-Dependent Policy

• Is there evidence for internal state-dependent
  policies? (Kelley et al., 2005)
• Information from the lateral hypothalamus reaches
  the dorsal striatum through the paraventricular
  nucleus
• Hypothalamic-midline thalamic-striatal
  projections carry internal state information to
  cholinergic interneurons of the dorsal striatum
• These are thought to modulate dorsal striatal
  output neurons

13
Eligibility Trace from the Mirror System

• What is the evidence for an eligibility signal
  from mirror neurons?
• People can implicitly learn sequences through
  action observation (Bird et al., 2005)
• The striatum is consistently implicated in
  implicit sequence learning and the magnitude of
  activation is correlated with reaction time
  improvement (Rauch et al., 1997, 1998)
• The basal ganglia is active during action
  observation (Frey Gerry, 2006)
• Projection from ventral premotor cortex
  (including the arcuate sulcus) to dorsal and
  ventral striatum in the macaque (McFarland
  Haber, 2000)

14
References

• Ahn S, Phillips AG (1999) Dopaminergic Correlates
  of Sensory-Specific Satiety in the Medial
  Prefrontal Cortex and Nucleus Accumbens of the
  Rat. The Journal of Neuroscience, 19RC291-6.
• Bird G, Osman M, Saggerson A, Heyes C (2005)
  Sequence learning by action, observation and
  action observation. British Journal of
  Psychology, 96 371388.
• Brog JS, Salyapongse A, Deutch AY, Zahm DS (1993)
  The patterns of afferent innervation of the core
  and shell in the Accumbens part of the rat
  ventral striatum Immunohistochemical detection
  of retrogradely transported fluoro-gold. The
  Journal of Comparative Neurology, 338(2)
  255-278.
• Fadel J, Deutch AY (2002) Anatomical Substrates
  of Orexin-Dopamine Interactions Lateral
  hypothalamic projections to the ventral tegmental
  area. Neuroscience, 111(2) 379-387.
• Frey SH, Gerry VE (2006) Modulation of Neural
  Activity during Observational Learning of Actions
  and Their Sequential Orders. The Journal of
  Neuroscience, 26(51)13194-13201.
• Haber SN, Gdowski MJ (2004) The basal ganglia.
  In The human nervous system (Paxinos G, Mai JK,
  eds) Ed 2 pp. 676738. New York Elsevier
  Academic.
• D. Joel and I. Weiner. The connections of the
  dopaminergic system with the striatum in rats and
  primates An analysis with respect to the
  functional and compartmental organization of the
  striatum. Neuroscience, 96451474, 2000.
• Kelley AE (1999) Functional Specificity of
  Ventral Striatal Compartments in Appetitive
  Behaviors. Annals New York Academy of Sciences.
• Kelley AE (2004) Ventral striatal control of
  appetitive motivation role in ingestive behavior
  and reward-related learning. Neurosci Biobehav
  Rev, 27 765-776.
• Kelley AE, Baldo BA, Pratt WE (2005) A proposed
  hypothalamic-thalamic-striatal axis for the
  integration of energy balance, arousal, and food
  reward. J Comp Neurol. 493(1)72-85.

15
References

• Lorrain DS, Riolo JV, Matuszewich L, Hull EM
  (1999) Lateral Hypothalamic Serotonin Inhibits
  Nucleus Accumbens Dopamine Implications for
  Sexual Satiety. The Journal of Neuroscience,
  19(17)7648-7652.
• McFarland NR, Haber SN (2000) Convergent Inputs
  from Thalamic Motor Nuclei and Frontal Cortical
  Areas to the Dorsal Striatum in the Primate. The
  Journal of Neuroscience, 20(10) 37983813.
• Niv Y, Joel D, Dayan P (2006) A normative
  perspective on motivation. Trends in Cognitive
  Sciences, 10(8) 375-381.
• Rauch SL, Whalen PJ, Savage CR, Curran T,
  Kendrick A, Brown HD, Bush G, Breiter HC, Rosen
  BR (1997) Striatal Recruitment During an Implicit
  Sequence Learning Task as Measured by Functional
  Magnetic Resonance Imaging. Human Brain Mapping
  5124132.
• Rauch SL, Whalen PJ, Curran T, McInerney S,
  Heckers S, Savage CR (1998) Thalamic deactivation
  during early implicit sequence learning a
  functional MRI study. NeuroReport, 9 865870.
• Saper, C.B. Swanson, L.W. Cowan, W.M. (1979) An
  autoradiographic study of the efferent
  connections of the lateral hypothalamic area in
  the rat. J Comp Neurol., 183(4) 689-706.
• W. Schultz. Activity of dopamine neurons in the
  behaving primate. Seminars in the Neurosciences,
  4129138, 1992.
• W. Schultz. Predictive reward signal of dopamine
  neurons. Journal of Neurophysiology, 80127,
  1998.
• W. Schultz, P. Apicella, and T. Ljungberg.
  Responses of monkey dopamine neurons to reward
  and conditioned stimuli during successive steps
  of learning a delayed response task. Journal of
  Neuroscience, 13900913, 1993.
• R. E. Suri and W. Schultz. Temporal difference
  model reproduces predictive neural activity.
  Neural Computation, 13841862, 2001.
• P. Voorn, L. J. Vanderschuren, H. J. Groenewegen,
  T. W. Robbins, and C. M. Pennartz. Putting a spin
  on the dorsal-ventral divide of the striatum.
  Trends in Neuroscience, 27468474, 2004.
• Wilson C, Nomikos GG, Collu M, Fibiger HC (1995)
  Dopaminergic correlates of motivated behavior
  importance of drive. Journal of Neuroscience, 15
  5169-5178.
