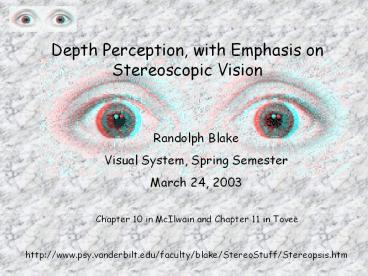

Depth Perception, with Emphasis on Stereoscopic
Vision
Randolph Blake Visual System, Spring
Semester March 24, 2003
Chapter 10 in McIlwain and Chapter 11 in Tovee
http//www.psy.vanderbilt.edu/faculty/blake/Stereo
Stuff/Stereopsis.htm
2
Specifying 3D shape and depth relations
motion
3
Specifying 3D shape and depth relations
motion
4
Specifying 3D shape and depth relations
motion
5
Specifying 3D shape and depth relations
motion
size
6
Specifying 3D shape and depth relations
motion
size
perspective
7
Specifying 3D shape and depth relations
motion
size
perspective
8
Specifying 3D shape and depth relations
motion
size
perspective
9
Specifying 3D shape and depth relations
motion
size
perspective
texture perspective
10
Specifying 3D shape and depth relations
motion
size
perspective
texture perspective
occlusion
11
Specifying 3D shape and depth relations
motion
size
perspective
texture perspective
occlusion
shading
12
Specifying 3D shape and depth relations
motion
size
perspective
texture perspective
occlusion
shading
13
Specifying 3D shape and depth relations
motion
size
perspective
texture perspective
occlusion
shading
14
(No Transcript)
15
Sir Charles Wheatstones Famous Invention
16
Stereograms (anaglyphs)
17
Stereograms (Magic Eye)
18
Stereopsis (literally, seeing solid)- 3D vision
resulting from slight differences in left and
right eye images, arising because the two eyes
view the world from slightly different
perspectives
Disparity - slight differences in positions of
features in left and right eye views
crossed disparity
uncrossed disparity
zero disparity
19
Magnitude of Disparity Signifies Depth Difference
20
Disparity Magnitude Also Varies with Viewing
Distance
stereopsis works only within 10 - 20 ft of the
observer once the visual axes are parallel,
objects beyond the point of fixation provide no
disparity
21
Magnitude of Disparity Depends on IPD
ipd interpupillary distance (averages 6.5 cm
in humans)
22
Random-dot Stereograms (Julesz, 1971)
23
How Theyre Made
24
How Theyre Made
25
How Theyre Made
26
(No Transcript)
27
(No Transcript)
28
How Does the Brain Solve This Problem?
29
What features does the brain match for
stereopsis?
original images
low spatial frequencies
high spatial frequencies
30
What Happens When Binocular Matches Cannot Be
Found?
left eye
right eye
31
Binocular Rivalry
32
Neural Bases of Disparity Registration
33
Neural Bases of Disparity Registration
34
Neural Bases of Disparity Registration
zero disparity
35
Neural Bases of Disparity Registration
uncrossed disparity
36
Neural Bases of Disparity Registration
uncrossed disparity
37
Neural Bases of Disparity Registration
38
Neural Bases of Disparity Registration
crossed disparity
39
Neural Bases of Disparity Registration
crossed disparity
40
NO! Disparity must be scaled for distance.
(Recall that a given disparity can be associated
with different depth intervals, depending on
viewing distance and on IPD.)
Neurons in visual cortex can match features
between the two eyes and can compute retinal
disparity. Is the problem of stereopsis solved?

• Non-stereoscopic cues required for this depth
  scaling

41
http//www.3d-web.com/index.html
http//www.stereographics.com/
http//www.psy.vanderbilt.edu/faculty/blake/Stereo
Stuff/Stereopsis.htm
