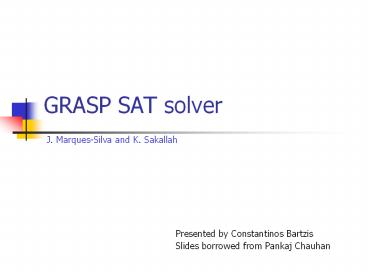

GRASP SAT solver

1
GRASP SAT solver
J. Marques-Silva and K. Sakallah

• Presented by Constantinos Bartzis
• Slides borrowed from Pankaj Chauhan

2
What is SAT?

• Given a propositional formula in CNF, find an
  assignment to boolean variables that makes the
  formula true
• E.g.

?1 (x2 ? x3) ?2 (?x1 ? ?x4) ?3 (?x2 ?
x4) A x10, x21, x30, x41
SATisfying assignment!
3
Why is SAT important?

• Fundamental problem from theoretical point of
  view
• Numerous applications
• CAD, VLSI
• Optimization
• Model Checking and other kinds of formal
  verification
• AI, planning, automated deduction

4
Terminology

• CNF formula ?
• x1,, xn n variables
• ?1,, ?m m clauses
• Assignment A
• Set of (x,v(x)) pairs
• A lt n ? partial assignment (x1,0), (x2,1),
  (x4,1)
• A n ? complete assignment (x1,0), (x2,1),
  (x3,0), (x4,1)
• ?A 0 ? unsatisfying assignment (x1,1), (x4,1)
• ?A 1 ? satisfying assignment (x1,0), (x2,1),
  (x4,1)
• ?A X ? unresolved (x1,0), (x2,0), (x4,1)

?1 (x2 ? x3) ?2 (?x1 ? ?x4) ?3 (?x2 ?
x4) A x10, x21, x30, x41
5
Terminology

• An assignment partitions the clause database into
  three classes
• Satisfied
• Unsatisfied
• Unresolved
• Free literals unassigned literals of a clause
• Unit clause unresolved with only one free
  literal

6
Basic Backtracking Search

• Organize the search in the form of a decision
  tree
• Each node is an assignment, called decision
  assignment
• Depth of the node in the decision tree ? decision
  level ?(x)
• xv_at_d ? x is assigned to v at decision level d

7
Basic Backtracking Search

• Iteration
• Make new decision assignments to explore new
  regions of search space
• Infer implied assignments by a deduction process.
• May lead to unsatisfied clauses, conflict. The
  assignment is called conflicting assignment.
• If there is a conflict backtrack

8
DPLL in action










































































































x1 0_at_1
?1 (?x1 ? x2 ? x3 ? x4) ?2 (?x1 ? x3 ?
x4) ?3 (x1 ? x2 ? x3) ?4 (?x3 ? x4) ?5
(?x4 ? x1 ? ? x3) ?6 (?x2 ? x4) ?7 (?x2 ? ?x4
)
?
?
U
/
/
?
U
/
?
x2 0_at_2
?
/
/
/
?
? x3 1_at_2
?
? x4 1_at_2
conflict
9
DPLL in action










































































































x1 0_at_1
?1 (?x1 ? x2 ? x3 ? x4) ?2 (?x1 ? x3 ?
x4) ?3 (x1 ? x2 ? x3) ?4 (?x3 ? x4) ?5
(?x4 ? x1 ? ? x3) ?6 (?x2 ? x4) ?7 (?x2 ? ?x4
)
?
?
/
?
x2 0_at_2
/
x2 1_at_2
/
?
U
? x3 1_at_2
? x4 1_at_2
?
/
/
? x4 1_at_2
conflict
conflict
10
DPLL in action










































































































x1 0_at_1
?1 (?x1 ? x2 ? x3 ? x4) ?2 (?x1 ? x3 ?
x4) ?3 (x1 ? x2 ? x3) ?4 (?x3 ? x4) ?5
(?x4 ? x1 ? ? x3) ?6 (?x2 ? x4) ?7 (?x2 ? ?x4
)
/
/
?
x1 1_at_1
/
?
?
?
x2 0_at_2
x2 0_at_2
?
x2 1_at_2
?
? x3 1_at_2
? x4 1_at_2
?
? x4 1_at_2
x4 1_at_2
conflict
conflict
(x1,1), (x2,0), (x4,1)
11
DPLL Algorithm
Deduction
Decision
Backtrack
12
GRASP

• GRASP stands for Generalized seaRch Algorithm for
  the Satisfiability Problem (Silva, Sakallah, 96)
• Features
• Implication graphs for BCP and conflict analysis
• Learning of new clauses
• Non-chronological backtracking

13
GRASP search template
14
GRASP Decision Heuristics

• Procedure decide()
• Which variable to split on
• What value to assign
• Default heuristic in GRASP
• Choose the variable and assignment that
  directly satisfies the largest number of clauses
• Other possibilities exist

15
GRASP Deduction

• Boolean Constraint Propagation using implication
  graphs
• E.g. for the clause ? (x ? ?y), if y1, then
  we must have x1
• For a variable x occuring in a clause, assignment
  0 to all other literals is called antecedent
  assignment A(x)
• E.g. for ? (x ? y ? ?z),
• A(x) (y,0), (z,1), A(y) (x,0),(z,1),
  A(z) (x,0), (y,0)
• Variables directly responsible for forcing the
  value of x
• Antecedent assignment of a decision variable is
  empty

16
Implication Graphs

• Nodes are variable assignments xv(x)
• (decision or implied)
• Predecessors of x are antecedent assignments A(x)
• No predecessors for decision assignments!
• Special conflict vertices ? have A(?)
  assignments to variables in the unsatisfied
  clause
• Decision level for an implied assignment is
• ?(x) max?(y)(y,v(y))?A(x)

17
Example Implication Graph
Current truth assignment x90_at_1 ,x100_at_3,
x110_at_3, x121_at_2, x131_at_2 Current decision
assignment x11_at_6
?1 (?x1 ? x2) ?2 (?x1 ? x3 ? x9) ?3 (?x2 ?
?x3 ? x4) ?4 (?x4 ? x5 ? x10) ?5 (?x4 ? x6 ?
x11) ?6 (?x5 ? ?x6) ?7 (x1 ? x7 ? ?x12) ?8
(x1? x8) ?9 (?x7 ? ?x8 ? ? x13)
x100_at_3
x11_at_6
x90_at_1
x110_at_3
18
GRASP Deduction Process
19
GRASP Conflict Analysis

• After a conflict arises, analyze the implication
  graph at current decision level
• Add new clauses that would prevent the occurrence
  of the same conflict in the future ? Learning
• Determine decision level to backtrack to, might
  not be the immediate one ? Non-chronological
  backtracking

20
Learning

• Determine the assignment that caused conflict ?
• Backward traversal of the IG, find the roots of
  the IG in the transitive fanin of ?
• This assignment is necessary condition for ?
• Negation of this assignment is called conflict
  induced clause ?C(?)
• Adding ?C(?) to the clause database will prevent
  the occurrence of ? again

21
Learning
x100_at_3
x11_at_6
x90_at_1
x110_at_3
?C(?) (?x1 ? x9 ? x10 ? x11)
22
Learning

• For any node of an IG x, partition A(x) into
• ?(x) (y,v(y)) ?A(x)?(y)lt?(x)
• ?(x) (y,v(y)) ?A(x)?(y)?(x)
• Conflicting assignment AC(?) causesof(?), where

23
Learning

• Learning of new clauses increases clause database
  size
• Increase may be exponential
• Heuristically delete clauses based on a user
  provided parameter
• If size of learned clause gt parameter, dont
  include it

24
Backtracking

• Failure driven assertions (FDA)
• If ?C(?) involves current decision variable, a
  different assignment for the current variable is
  immediately tried.
• In our IG, after erasing the assignment at level
  6, ?C(?) becomes a unit clause ?x1
• This immediately implies x10

25
Example Implication Graph
Current truth assignment x90_at_1 ,x100_at_3,
x110_at_3, x121_at_2, x131_at_2 Current decision
assignment x11_at_6
?1 (?x1 ? x2) ?2 (?x1 ? x3 ? x9) ?3 (?x2 ?
?x3 ? x4) ?4 (?x4 ? x5 ? x10) ?5 (?x4 ? x6 ?
x11) ?6 (?x5 ? ? x6) ?7 (x1 ? x7 ? ?x12) ?8
(x1? x8) ?9 (?x7 ? ?x8 ? ? x13) ?C(?)(?x1 ?
x9 ? x10 ? x11)
x100_at_3
x11_at_6
x90_at_1
x110_at_3
26
Example Implication Graph
Current truth assignment x90_at_1 ,x100_at_3,
x110_at_3, x121_at_2, x131_at_2 Current decision
assignment x10_at_6
?1 (?x1 ? x2) ?2 (?x1 ? x3 ? x9) ?3 (?x2 ?
?x3 ? x4) ?4 (?x4 ? x5 ? x10) ?5 (?x4 ? x6 ?
x11) ?6 (?x5 ? x6) ?7 (x1 ? x7 ? ?x12) ?8
(x1? x8) ?9 (?x7 ? ?x8 ? ? x13) ?C(?) (?x1 ?
x9 ? x10 ? x11)
x90_at_1
?C(?)
x100_at_3
x10_at_6
?C(?)
?C(?)
x110_at_3
27
Non-chronological backtracking
x81_at_6
x90_at_1
?8
?C(?)
?9
x100_at_3
?
x131_at_2
x10_at_6
?C(?)
?9
?9
?7
?C(?)
x110_at_3
x71_at_6
?7
x121_at_2
AC(?) x9 0_at_1, x10 0_at_3, x11 0_at_3, x121_at_2,
x131_at_2 ?C(?) (x9 ? x10 ? x11 ? ? x12 ? ?
x13)
28
Backtracking

• Backtrack level is given by
• ? d-1 chronological backtrack
• ? lt d-1 non-chronological backtrack

? max?(x)(x,v(x))?AC(?)
29
Procedure Diagnose()
30
Whats next?

• Reduce overhead for constraint propagation
• Better decision heuristics
• Better learning, problem specific
• Better engineering

Chaff
