Status of AROME Physics

1

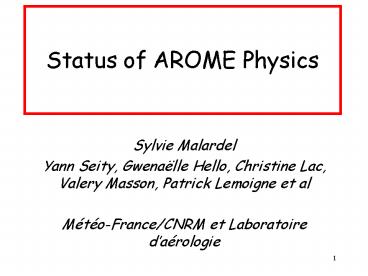

Status of AROME Physics

• Sylvie Malardel
• Yann Seity, Gwenaëlle Hello, Christine Lac,
  Valery Masson, Patrick Lemoigne et al
• Météo-France/CNRM et Laboratoire daérologie

2
AROME
Aladin dynamical core
3
AROME Physics

• Current ECMWF radiation scheme called every 15
  min (F.M. for SW and RRTM for LW)
• Microphysics (vapor5 hydrometeors)
• Turbulence (CBR, pronostic TKE)
• Shallow convection (KFB)
• a subgrid representation of clouds
• Externalised surface
• Isba
• Simple schemes for sea and lakes
• TEB

4
The Daily Arome prototype
This Arome is running every day on
different domains

• MIDPYR since june 2005,
• SUDE since september 2005
• Replaced by NORE this winter
• (plots on ALADIN2 WebSite)

5
AROME domains over FRANCE
6
Deep Clouds

• Microphysics
• Coupling with the dynamics

7
An AROME good forecast 21 June 2005
8
21 June 2005 Case
Inst. AROME rainfalls
L41 AROME wind
9
21 June 2005 Case
15 TU
AROME coupled with Aladin 3DVAR
AROME coupled with Aladin oper
10
Microphysical retrievals IOP 2A (intense
convection)
12 km
(x) hail graupel
(o) hail
( ) rain
(x) hail graupel
(o) hail
( ) rain
100 km
Tabary, 2002
11
Microphysical retrievals IOP 3 (moderate
convection)
1810 UT
dry snow
hail graupel
rain
1830 UT
Pujol et al., 2005
12
Quasi-stationnary MCS 13-14 Oct. 1995
MESO-NH, ?x10km
OBSERVATIONS
m
mm
max 25 mm
max 135 mm
Initial conditions ARPEGE analysis at 18UTC
Cumulated precipitation 01 UTC to 06 UTC the
14th Oct. 1995
(Ducrocq et al, 2002)
13

• As Méso-NH, Arome is able to simulate correctly
  the organisation of mesoscale convective
  organisation
• Sensitivity to coupling and initial condition

For AROME in 2006

• Use diagnostics to evaluate more objectively
  and statisticaly precipitating events
• Adaptation of numerical aspects of the
  sedimentation parametrization (time splitting) to
  longer time steps (gt 60s)

14
Fog (and low clouds)

• Microphysics
• Radiation
• Vertical resolution
• Turbulence in stable layers

15
First case of Fog 7 January 2005
AROME 2 last levels cloud cover
09 TU
16
First case of Fog 7 January 2005
AROME 2 last levels cloud cover
15 TU
17
just a few studies with Meso-NH
But A PRIORITY for
AROME
Bergot et al., 2005, submitted Intercomparison
of 1D numerical models for prediction of the
fog (? mp, ?turbulence, ?Dz) 2 events at
Paris-CdG. 4 sets of initial conditions (RS)
18UTC (onset), 21 (thickening), 00 (mature) and
03 (disspation)
18
Initialization at 03UTC
Bergot et al., 2005, submitted
19
For AROME in 2006

• Microphysics Implementation of the
  sedimentation for small droplets
• Tests on the sensitivity to vertical resolution ?
  Additional levels to L41 ? (Cobel-Isba with L41
  shows degradation)
• Evaluation on CAPITOUL and on several
  international airports. Run of AROME on
  Ile-de-France on winter 2005 and in 1D on
  Casablanca and Varsovie (to be confirmed)

20
Convective boundary layersand stratocumulus

• Shallow convection
• Turbulence
• Subgrid clouds
• Microphysics
• Surface

21
2005/08/20
09 TU
AROME
Meso-NH with SUBGRID COND SHALLOW 30min
Adjustment time of 30min
Meso-NH with SUBGRID COND SHALLOW Adjustment
time of 3h in the closure
Coupling with Aladin oper (r0)
22
Bomex
LES
23
ARM
LES
24
ARM cloud mixing ratio
LES
25
For AROME in 2006

• Modification of the KFB closure (w, Grant et al,
  1999)
• Improvement of subgrid cloud representation
  (Bechtold et al, 1995, Lenderink and Siebesma,
  2000)
• Test of EDMF scheme in Meso-NH (P.Soares)

26
Stratocumulus Whats about the resolutions of
AROME ?
I.Sandu
27
Liquid Water Path
I. Sandu
28
Preliminary tests in Meso-NH at the resolutions
of AROME

• Diurnal cycle of Sc is maintained at the
  resolution of Arome
• LWC more sensitive to lower Dz than lower Dx
• Main impact of Dz at the top of Sc (entrainment)
  than beneath

For Arome , second part of 2006

• Sensitivity tests on vertical resolution for
  cloud-top entrainment?Additional levels to L41?
• Interest of an entrainment parametrization
  (Lock, 2001, 2004. ARPEGE-Climat).

29
Evaluation CARBOEUROPE
Forecasts of Meso-NH (8km) in an operational mode
during the experiment
30
BUT limitations are well-known, inherent to
Eddy-diffusivity

• The K-diffusion doesnt take into account
  countergradient.
• Entrainment is not treated explicitly in the
  K-diffusion approach.
• But diffusion remains necessary, for transition
  to neutral or stable BL.

31
1. Countergradient with Third order moments
32
For AROME in 2006

• TOMs on heat momentum fitted on LES already
  implemented in Meso-NH ? evaluation of the impact
  for AROME on CBL (needs of evaluation on test
  cases, impact on unreal rolls ?)
• EDMF scheme evaluation of the impact in Meso-NH
  during the 1st sem.2006 (In collaboration with
  P.Soares)
• Comparison EDMF/TOMS on the same cases

33
Summary

• An Arome daily prototype has been running for 6
  months (without any blow up)
• Some good forcasts and some less good (but only
  qualitative and episodic validation)
• Some imperative improvement have to be done
  quickly on the physics before more serious
  validation
• Shallow convection and subgrid clouds
• Fog dissipation
• Numerical improvement SL sedimentation
• Other preoccupations Sc, Dry BL etc
