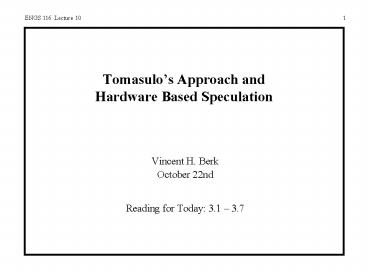

Tomasulos Approach and Hardware Based Speculation

1
Tomasulos Approach andHardware Based Speculation

• Vincent H. Berk
• October 22nd
• Reading for Today 3.1 3.7

2
Hardware Schemes for ILP

• Why in hardware at run time?
• Works when dependence is not known at run time
• Simplifies compiler
• Allows code for one machine to run well on
  another
• Key idea Allow instructions behind stall to
  proceed
• DIVD F0, F2, F4
• ADDD F10, F0, F8
• SUBD F12, F8, F14
• Enables out-of-order execution ? out-of-order
  completion
• ID stage checks for both structural hazards and
  data dependences

3
Hardware Schemes for ILP

• Out-of-order execution divides ID stage
• 1. Issue decode instructions, check for
  structural hazards
• 2. Read operands wait until no data hazards,
  then read operands

4
Tomasulos Algorithm

• For IBM 360/91 about 3 years after CDC 6600
• Goal High performance without special compilers
• Differences between IBM 360 CDC 6600 ISA
• IBM has only 2 register specifiers/instruction
  vs. 3 in CDC 6600
• IBM has 4 FP registers vs. 8 in CDC 6600
• Differences between Tomasulos Algorithm
  Scoreboard
• Control buffers (called reservation stations)
  distributed with functional units vs. centralized
  in scoreboard
• Registers in instructions replaced by pointers to
  reservation station buffer
• HW renaming of registers to avoid WAR, WAW
  hazards
• Common data bus (CDB) broadcasts results to
  functional units
• Load and stores treated as functional units as
  well
• Alpha 21264, HP 8000, MIPS 10000, Pentium III,
  PowerPC 604, ...

5
Three Stages of Tomasulo Algorithm

• 1. Issue Get instruction from FP operation
  queue
• If reservation station free, issues instruction
  sends operands (renames registers).
• 2. Execution Operate on operands (EX)
• When operands ready then execute if not ready,
  watch common data bus for result.
• 3. Write result Finish execution (WB)
• Write on common data bus to all awaiting units
  mark reservation station available.
• Common data bus data source (come from bus)

6
Tomasulo Organization
From Instruction Unit
FP Registers
From Memory

Load Buffers
FP Op Queue
Store Buffers
Operand Bus
To Memory
Operation Bus
FP Mul Res. Station
FP Add Res. Station
Reservation Stations
FP Adders
FP Multipliers
Common data bus (CDB)
7
Reservation Station Components

• Op Operation to perform in the unit (e.g., or
  )
• Qj, Qk Reservation stations producing source
  registers
• Vj, Vk Value of source operands
• Rj, Rk Flags indicating when Vj, Vk are ready
• Busy Indicates reservation station and FU is
  busy
• Register result status Indicates which
  functional unit will write each register, if one
  exists. Blank when no pending instructions will
  write that register.

8
Tomasulo Example Cycle 1
9
Tomasulo Example Cycle 2
10
Tomasulo Example Cycle 3
Register names are renamed in reservation
stations Load1 completing who is waiting for
Load1?
11
Tomasulo Example Cycle 4
Load2 completing who is waiting for it?
12
Tomasulo Example Cycle 5
13
Tomasulo Example Cycle 6
14
Tomasulo Summary

• Reservation stations renaming to larger set of
  registers buffering source operands
• Prevents registers as bottleneck
• Avoids WAR, WAW hazards of scoreboard
• Allows loop unrolling in HW
• Not limited to basic blocks
• (integer units get ahead, beyond branches)
• Lasting Contributions
• Dynamic scheduling
• Register renaming
• Load/store disambiguation
• 360/91 descendants are Pentium III PowerPC 604
  MIPS R10000 HP-PA 8000 Alpha 21264

15
Hardware-Based Speculation

• Instead of just instruction fetch and decode,
  also execute instructions based on prediction of
  branch.
• Execute instructions out of order as soon as
  their operands are available.
• Wait with instruction commit until branch is
  decided.
• Re-order instructions after execution and commit
  them in order
• reorder buffer or ROB
• register file not updated until commit
• Do not raise exceptions until instruction is
  committed
• ROB holds and provides operands until commit.

16
Tomasulo with Speculation

• Issue Empty reservation station and an empty
  ROB slot. Send operands to reservation station
  from register file or from ROB. This stage is
  often referred to as dispatch
• Execute Monitor CDB for operands, check RAW
  hazards. When both operands are available, then
  execute.
• Write Result When available, write result to
  CDB through to ROB and any waiting reservation
  stations. Stores write to value field in ROB.
• Commit Three cases
• Normal Commit write registers, in order commit
• Store update memory
• Incorrect branch flush ROB, reservation
  stations and restart execution at correct PC

17
(No Transcript)
18
Problems with speculation

• Multi Issue Machines
• Must be able to commit multiple instructions from
  ROB
• More registers, more renaming
• How much speculation
• How many branches deep?
• What to do on a cache miss?
• TLB miss?
• Cache interference due to incorrect branch
  prediction

19
Figure 3.41 Number of registers available for
renaming.
20
Figure 3.45 Window size the number of
instructions the issue unit may look ahead and
schedule from.
21
ILP Software Approaches 2
22
HW Support for More ILP

• Avoid branch prediction by turning branches into
  conditionally executed instructions
• If (X) then A B op C else NOP
• If false, then neither store result nor cause
  exception
• Expanded ISA of Alpha, MIPS, PowerPC, SPARC have
  conditional move PA-RISC can annul any
  following instruction.
• IA-64 61 1-bit condition fields selected so
  conditional execution of any instruction
• Drawbacks to conditional instructions
• Still takes a clock even if annulled
• Stall if condition evaluated late
• Complex conditions reduce effectiveness
  condition becomes known late in pipeline

X
A B op C
23
Software Pipelining

• Observation if iterations from loops are
  independent, then can get more ILP by taking
  instructions from different iterations
• Software pipelining reorganizes loops so that
  each iteration is made from instructions chosen
  from different iterations of the original loop

Software-
iteration
24
SW Pipelining Example
1 LD F0, 0 (R1) LD F0, 0 (R1) 2 ADDD F4, F0,
F2 ADDD F4, F0, F2 3 SD 0 (R1), F4 LD F0, 8
(R1) 4 LD F6, 8 (R1) 1 SD 0 (R1), F4 Stores
Mi 5 ADDD F8, F6, F2 2 ADDD F4, F0, F2 Adds to
Mi-1 6 SD 8, (R1), F8 3 LD F0, 16 (R1) Loads
Mi-2 7 LD F10, 16 (R1) 4 SUBI R1, R1,
8 8 ADDD F12, F10, F2 5 BNEZ R1, LOOP 9 SD 16
(R1), F12 SD 0 (R1), F4 10 SUBI R1, R1,
24 ADDD F4, F0, F2 11 BNEZ R1, LOOP SD 8
(R1), F4
Read F4 Read F0 SD IF ID EX Mem WB Write
F4 ADD IF ID EX Mem WB LD IF ID EX Mem WB
Write F0
25
SW Pipelining Example

• Symbolic Loop Unrolling
• Smaller code space
• Overhead paid only once vs. each iteration in
  loop unrolling
• 100 iterations 25 loops with 4 unrolled
  iterations each

Software Pipelining
Number of overlapped operations
(a) Software pipelining
Time
Loop Unrolling
Number of overlapped operations
Time
(b) Loop unrolling
26
Trace Scheduling

• Focus on critical path (trace selection)
• Compiler has to decide what the critical path
  (the trace) is
• Most likely basic blocks are put in the trace
• Loops are unrolled in the trace
• Now speed it up (trace compaction)
• Focus on limiting instruction count
• Branches are seen as jumps into or out of the
  trace
• Problem
• Significant overhead for parts that are not in
  the trace
• Unclear if it is feasible in practice

27
Superblocks

• Similar to Trace Scheduling but
• Single entrance, multiple exits
• Tail duplication
• Handle cases that exited the superblock
• Residual loop handling
• Could in itself be a superblock
• Problem
• Code size
• Worth the hassle?

28
(No Transcript)
29
Conditional instructions

• Instruction that is executed depending on one of
  its arguments
• Instruction is executed but results are not
  always written.
• Should only be used for very small sequences,
  else use normal branch.

BNEZ R1, L ADDU R2, R3, R0 L CMOVZ R2,
R3, R1
30
Speculation

• Compiler moves instructions before branch if
• Data flow is not affected (optionally with use of
  renaming)
• Preserve exception behavior
• Avoid load/store address conflicts (no renaming
  for memory loc.)
• Preserving exception behavior
• Mechanism to indicate an instruction is
  speculative
• Poison bit raise exception when value is used
• Using Conditional instructions
• Requires In-Order instruction commit
• Register renaming
• Writeback at commit
• Forwarding
• Raise exceptions at commit

31
Speculation
if (A0) AB else AA4 LD R1, 0(R3)
load A BNEZ R1, L1 test A LD R1, 0(R2)
then J L2 skip else L1 DADDI R1, R1, 4
else L2 SD R1, 0(R3) store A
LD R1, 0(R3) load A LD R14, 0(R2) load B
(speculative) BEQZ R1, L3 branch
if DADDI R14, R1, 4 else L3 SD R14, 0(R3)
store A
