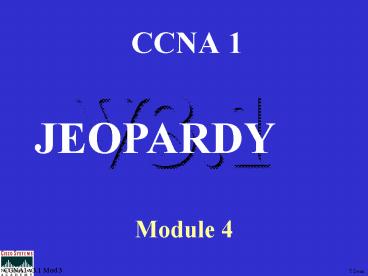

JEOPARDY

• Module 4

T Dean
2
Router Modes
WAN Encapsulation
WAN Services
Router Basics
Router Commands
Router Modes
WAN Encapsulation
WAN Services
Router Basics
Router Commands
Acronyms
Waves
Measures
Problems
X Talk
Testing
? ? ? F i n a l J e o p a r d y ? ? ?
100
100
100
100
100
100
100
100
200
200
200
200
200
200
200
200
300
300
300
300
300
300
300
300
400
400
400
400
400
400
400
400
500
500
500
500
500
500
500
500
3
Acronyms100
DB
A What is Decibel?
4
Acronyms200
RFI
A What is Radio Frequency Interference?
5
Acronyms300
EMI
A What is Electromagnetic Interference?
6
Acronyms400
NEXT
A What is Near End Crosstalk?
7
Acronyms500
TDR
A What is the Time Domain Reflectometer?
8
Waves 100
The two states of a digital signal.
A What are ON and OFF?
9
Waves 200
Analog signals travel in this pattern.
A What are Sine Waves?
10
Waves 300
Digital signals travel in this pattern.
A What are Square Waves?
11
Waves 400
Amplitude of an electrical signal in measured in
these units.
A What are Volts?
12
Waves 500
This term describes the time to complete one wave
cycle.
A What is a Period?
13
Measures 100
The three numbering systems used in networking.
A What are Binary, Decimal and Hexadecimal?
14
Measures 200
These units are used to measure the gain or loss
of power in a signal.
A What are decibels?
15
Measures 300
Analog bandwidth is measured in these units.
A What are Hertz or Cycles per Second?
16
Measures 400
Digital Bandwidth is measured in this unit or
multiples of this unit.
A What is a bits per seconds?
17
Measures 500
When properly grounded, this reference level
measurement should be zero volts.
A What is the signal ground or signal reference
ground?
18
Problems 100
This term describes a problem where echos are
received at different intervals.
A What is jitter?
19
Problems 200
The decrease in signal amplitude (strength) as
the signal travels to its destination.
A What is attenuation?
20
Problems 300
The better attenuation measurement -12dB or
-62dB?
A What is -12dB?
21
Problems 400
Noise affecting all transmission frequencies.
A What is White Noise?
22
Problems 500
This condition causes a signal to be reflected
back toward the source.
A What is Impedance Discontinuity?
23
X Talk 100
Transmission of a signal from one wire to a
nearby wire.
A What is crosstalk?
24
X Talk 200
Transmission of a signal from one cable to a
separate cable.
A What is Alien Cross Talk?
25
X Talk 300
The cumulative measure of crosstalk on a wire
pair from signals sent on the other three wire
pairs in a cable.
A What are Power Sum NEXT or PSNEXT?
26
X Talk 400
Crosstalk that occurs away from the cable tester
and attenuates as it approaches the tester.
A What is Far End Crosstalk or FEXT?
27
X Talk 500
The ratio of voltage amplitude between the test
signal and the crosstalk signal when measured
from the same end of the link.
A What is Near End Cross Talk or NEXT?
28
Testing 100
A NIC receives a signal on these two pins.
A What is Pins 3 and Pins 6?
29
Testing 200
This is used to verify that all eight wires are
connected to the correct pins.
A What is a Wire Test Map?
30
Testing 300
A TDR test measures not only the cable length,
but also the location of these.
A What are Shorts and Opens?
31
Testing 400
This type of cable must be capable of carrying a
250mHz signal with low levels of cross talk.
A What is Cat 6 cable?
32
Testing 500
This is the main cause of signal loss in any type
of cable.
A What are improperly installed connectors?
33
Final Jeopardy
These are the two standards for the order of
wires developed by the TIA/EIA.
A What are TIA/EIA/ANSI 568A and T568B?
