BIO plus Nanotechnology Newcastle, UK

1

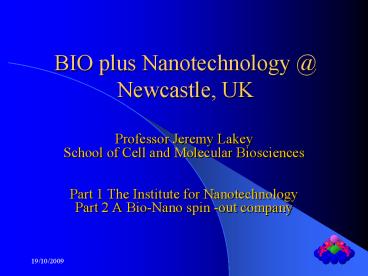

BIO plus Nanotechnology _at_ Newcastle, UK

• Professor Jeremy Lakey
• School of Cell and Molecular Biosciences
• Part 1 The Institute for Nanotechnology
• Part 2 A Bio-Nano spin -out company

2
MST / Nanotechnology at Newcastle

• Multidisciplinary Institute for Nanotechnology
• 15 research groups from Faculties of Medicine,
  Engineering Science (most RAE 5/5 in 2001,
  12M in current peer reviewed research grants,
  6.7M SRIF, DTI RDA funding in 2001/2)
• One of a small number of large cross-disciplinary
  strategic research initiatives in the university
• Strong biomedical focus
• Medical School is number two in the country in
  RAE/breadth terms
• Large market for nanotechnology
• Lead component of the DTI-funded University
  Innovation Centre for Nanotechnology
• One of three large DTI-funded nanotechnology
  initiatives
• Close working relationship with ONE NorthEast
  Inward Investment Team (ITS, Invest UK etc) and
  Cluster Development Initiatives

3
Facilities

• 2500 m2 facility (with 230 m2 cleanroom)
  supporting
• silicon, glass, polymer bio-hybrid device RD,
  fabrication, packaging and evaluation
• prototype development small-series production
• training
• licensing spin-off activity
• external partners and customers
  (academic/industry, regional, national and
  international)

4
(No Transcript)
5
Convergence at the small scale

• Sub-nanometer precision figuring polishing
• Self-organised nanowire arrays
• Multi-axis gyros
• Micro-reactor technology
• Nanoparticles tissue engineering
• Biosensors, diagnostic devices, arrays
• Biological/physical interface

6
Precision Figuring Polishing(Prof. Ken Snowdon)

• Figuring
• nm-precision ion beam erosion (e.g. Zeiss)
• Polishing
• CaF2, final rms 1.2 Å (?5 improvement over
  mechanical polishing)

7
2. Self-Organised Nanowire Arrays(Prof. Ken
Snowdon)

• Directed stress-field induced self-ordering
  (lattice mismatch glancing incidence ion beam
  irradiation)
• Exceptional long range order (constant
  separation perfect wire alignment, gt50
  oscillations visible in ACF)
• Applications as notch filters, nanoelectrodes,
  atom-optics, cross-wire array architectures
• Spin-off Jan. 2001

49?49 ?m2
8
3. Multi-Axis Gyros(Prof. Jim Burdess Dr Alun
Harris)

• Exploits coriolis coupling between the in-plane
  out-of-plane modes (3-axis)
• Pyrex-Si-Pyrex bonded sandwich, lt111gt Si ring
• Ring radius 4 mm

9
4. Micro-Reactor Technology(Prof. Colin Ramshaw)

• Capillary reactors for e.g. point-of-use chemical
  manufacture (utilise rapid heat and mass transfer
  inside narrow sub-mm channels to provide
  intensified regimes for mass transfer limited
  processes).
• Compact spinning disk reactors for the
  point-of-use manufacture of liquid and solid
  (nanoparticulate) products composites.
• Spin-off - Protensive

10
5. Nanoparticles Tissue Engineering(Prof.
Galip Akay)

• Use of a cold-flow induced phase inversion
  technique to produce a novel porous organic
  material with a narrow pore-size distribution
• template for tissue growth (bone, cartilage,
  macrophage, etc. cells)
• nanoparticle self-assembly
• scaffold

11
6a. Biomolecular Electronics(Drs Ben Horrocks
Andrew Houlton)

• Integration of (bio)molecular compounds with
  semiconductor materials for applications in
  sensing, molecular electronics and
  nanotechnology.
• Significant development has been synthesis of
  artificial DNA directly onto non-oxidised silicon
  allows direct read-out via electron transfer to
  Si.

12
6b. Cell Chips(Prof. Calum McNeil)

• Detect transient changes in cell membrane
  potentials
• Monitor real-time response of cell systems to
  external physical or chemical stimuli
• e.g. influence of drugs on cardiac frequency
  (recorded in minutes)
• Drug screening applications

13
7. Nanoengineered Biological-Physical-Information
Interface

• Robust fully communicating interface between
  physical, information and biological environments
• Platform with exciting applications in e.g.
  health, environmental, process monitoring,
  communications, leisure and defence sectors.

14
Integration of Sensors, IT Comms Super
Technology
Source NTT
15
Summary

• Comprehensive facilities and people (most RAE
  5/5 in 2001) with breadth of RD activity
• NST/MST (device and process development in both
  conventional and unconventional materials)
• Hybrid device and process development
• Self-assembly and self-organisation process
  development and integration with top-down
  fabrication technologies
• Integrated ST and commercialisation model
• gt50 industry usage of facilities, plus spin-offs
• Offer base for private-sector exploratory and
  new-product development activity and small batch
  production
• Strong biomedical focus

16
Part 2. A Bio-Nano spin out company. Interfacing
biology and physical science throughnanoscale
engineering
17
The Dynamic Interface
Aqueous Environment Diagnostic/therapeutic Bio
molecules, Cells in culture, Living tissue
The BIO- interface
Physical Devices semi-conductors,
optoelectronics, biosensors, biomimetics,
implanted materials
18
Self-assembly soluble proteins
19
Nature
Nanotech
20
Self-assembly .outer membrane proteins
and phospholipids
21
Integrating biological systems and physical
devices through engineered protein interfaces

• The ideal biological interface should exhibit
• Self-assembly
• Functional biochemical sites presented at a
  nano-scale
• A truly biomimetic surface
• Capable of industrial manufacture (robustness,
  compatibility, reproducibility)
• Show stability at the physical interface

Orla is harnessing nature for the solution
through use of membrane protein scaffolds
22
Core Technology Engineered protein interface
23
Markets and Application areas
24
Some Omp are pore -forming proteins
-

105-108 ions per second per pore !
25
(No Transcript)
26
Orla Protein Technologies LtdNanotechnology
Centre,Herschel Building,Newcastle Upon
Tyne,NE1 7RUTel (0) 191 243 0683Fax (0)
191 222 3528enquiries_at_orlaproteins.com
27

• Newcastle
• Graeme Bainbridge
• Qi Hong
• Dave Chalton
• Neil Keegan
• Virak Visudtipole

• Glasgow
• Alan Cooper
• Lausanne
• Horst Vogel
• Thierry Stora
• Samuel Terretaz,
• Claus Duschl

28
THE END

• THE BASIC SCIENCE WAS SUPPORTED BY
• BBSRC, EPFL
• AND THE UNIVERSITY OF NEWCASTLE
