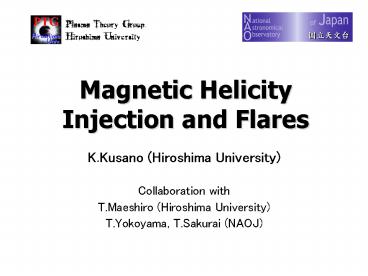

Magnetic Helicity Injection and Flares

1
Magnetic Helicity Injection and Flares
Plasma Theory Group, Hiroshima University

• K.Kusano (Hiroshima University)
• Collaboration with
• T.Maeshiro (Hiroshima University)
• T.Yokoyama, T.Sakurai (NAOJ)

2
Contents

• Introduction
• What is helicity? Why helicity?
• Measurement of helicity?
• A new method
• Demonstration (AR8100)
• Helicity in the active region
• Relation between Helicity and Flares
• A New Model
• Numerical Simulation

3
Magnetic Helicity

• Magnetic Linkage
• Conserved in ideal-MHD
• Associated with Magnetic Free Energy
• Source of the MHD energy relaxation
• Stability Criterion

free energy
magnetic energy
potential field energy
magnetic helicity
4
Measurement of Helicity

• Morphology (sigmoid)
• Extrapolation
• Magnetic Shear
• (current helicity)
• Helicity Flux (Kusano et al. 2002)

new
5
Helicity Flux

• Relative Helicity (Berger, Field 1984)
• Helicity flux

flux
photosphere
S
Shear Twist Motion
Emergence of Sheared Flux
6
Reconstruction of Inductive Velocity
solution
Correlation tracking
Kusano et al. 2002, ApJ 577501-512.
7
Helicity Energy Flux (AR8100)
energy flux
helicity flux
magnetic energy
magnetic helicity
total
free energy
total
potential
shear
8
Helicity Flux Density
emergence
shear
11/3/0 UT
11/3/23 UT
9
Helicity Flux in Flare Site
10
Flares and Helicity Reversal

• Sheared Field
• Helicity sign is sharply reversed in any flare
  sites.

11
Helicity and Reconnection

• Ejection

• Annihilation

12
3D MHD Simulation
13
Helicity Annahilation Model

• Injection of Magnetic Helicity
• Injection of Counter Helicity
• Formation of Helicity Inversion
• Tearing mode instability
• Nonlinear instability
• Reconnection (annihilation)
• Plasma circulation
• Reconnection (ejection)

A condition for flare
Competitive process (pre-flare phase)
trigger
14
Ha ribbons on Helicity Reversal
15
Summary

• New methodology to measure the helicity flux was
  developed.
• Helicity structure in the active region is more
  complicated than previous thought.
• Flares tend to occur at the helicity inversion
  line.
• We propose that helicity annihilation triggers
  flares.

16
What we can do with Solar-B?

• Continuous observation of vector field.
• ? Merging of Observation and Numerical
  Simulation.

induction equation for Bn
self-consistent solution
3D MHD Equations
induction equation for Bt
observation
17
Numerical Corona Project (NCP)
observations
Numerical Corona
Virtual reality
3D MHD solver B V in corona
Boundary Condition Bn,Bt,Vn,Vt on solar surface
