Forecasting Streamflow with the UW Hydrometeorological Forecast System

1

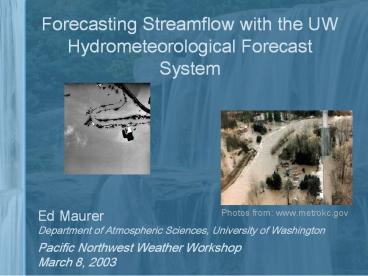

Forecasting Streamflow with the UW
Hydrometeorological Forecast System
Ed Maurer Department of Atmospheric Sciences,
University of Washington Pacific Northwest
Weather Workshop March 8, 2003
Photos from www.metrokc.gov
2
UW Hydromet System and Water Resource Time Scales
Weather floods, drainage, operations Seasonal/In
terannual water supply planning,
droughts Climate climate change, urbanization
Ref A Plan for a New Science Initiativeon the
Global Water Cycle, www.usgcrp.gov
3
Temporal and Spatial Scales of Hydrologic
Variability
Ref A Plan for a New Science Initiativeon the
Global Water Cycle, www.usgcrp.gov
4
MM5-DHSVM Streamflow Forecast System
UW Real-time MM5
DHSVM
Distributed-Hydrology-Soil-Vegetation Model
Completely automated In use since WY 1998 For
details Westrick, K.J., P. Storck, and C.F.
Mass, Description and Evaluation of a
Hydrometeorological Forecast System for
Mountainous Watersheds, Weather and Forecasting
17 250-262, 2002.
Streamflow and other forecasts
5
Penn State/NCAR Mesoscale Model MM5
Used throughout the world for both research and
operational forecasting 48-hour (and some 72-hour
and longer) forecasts run twice daily at the
University of Washington High-resolution model
(4-km) capable of capturing the complex orography
of the region, including lee shading and windward
precipitation enhancement
FOR MORE INFO...
http//www.atmos.washington.edu/mm5rt/
6
DHSVM land surface hydrology model

• Physically-based, distributed model
• Solves a water balance at each grid cell at each
  time step
• Horizontal scales typically 30m to 150m
• Designed for and extensively tested in complex
  terrain

Details on DHSVM at http//www.hydro.washington.e
du/
7
DHSVM Calibration

• Calibration at 2 sites in Snohomish River Basin
• Used all available meteorological observations
  (50sites), 1987-1991
• Used flow observations at two USGS gauges
• Skykomish R. near Gold Bar
• Snoqualmie R. at Carnation

Snoqualmie R. at Carnation
Peaks flows and average water balance are well
simulated by DHSVM when forced by observed
meteorology
8
UW Hydromet Domain - 2003
26 basins 60 USGS Gauge Locations 48,896
km2 2,173,155 pixels DHSVM _at_ 150 m
resolution MM5 _at_ 4 12 km
http//hydromet.atmos.washington.edu
9
Web Site for Forecast Dissemination

• Automatically updated twice daily
• Graphic display indicates forecasted flood status
• Click through to
• Hydrographs
• Snow state (maps and points)
• Point weather forecasts

10
Performance of Hydromet System
Sauk
Snoqualmie
Observed
MM5-DHSVM
NWRFC
11
Using the Hydromet system for MM5 diagnosis

• One exceptionally bad forecast for the Cedar R.,
  events from January 25 to Feb 4, 2003
• Second peak
• Forecast1200 cfs
• Observed 3700 cfs
• Flood stages above bankfull occurred, and were
  not forecast

12
Representative Meteorological Station Mt.
Gardner
Avg. Precipitation from 1/24 - 2/7 Observed 1.0
mm/h Simulated 0.7 mm/h Total difference 100 mm
Precip
13
Opportunity for Improving UW Hydromet Forecasts
1 Precipitation/Temperature Bias
Correction Remove systematic biases in P, T, at
land surface 2 IMPROVE-2 Take advantage of the
IMPROVE-2 experiment to examine the interplay
between observation density and bias correction
performance 3 Initial State Updating
Assimilation of snow and soil moisture
information from an observationally constrained
data set.
14
Snow State Updating with Observations
Use ground observations (SNOTEL sites) to adjust
the basin snow state
Challenge 45-50 snow water observations for
48,000 km2 domain low density places high
dependence on interpolation assumptions
15
Expansion of Forecast Products
16
Summary

• UW Hydrometeorological Forecast System provides
  accurate streamflow and snowpack predictions when
  forced with accurate meteorology and when
  properly initialized
• Improvements in both initialization and
  meteorological forecasts are ongoing, by
  analyzing current flood events and retrospective
  analysis
• The capabilities of the system are being expanded
  to include both probabilistic forecasts using
  ensembles, and to include landslide hazard
  evaluation

17
Acknowledgments
18
Current Streamflow Forecasts

• NWRFC provides river flow and stage forecasts at
  strategic points in Puget Sound region
• Use point forecasts of precipitation and
  temperature
• Streamflow produced by a lumped parameter
  hydrologic model (does not produce spatially
  distributed water balance estimates)

www.nwrfc.noaa.gov
19
Original Motivation for Developing UW Hydromet
System

• Integrated modeling over a variety of spatial and
  temporal scales to examine
• Regionally consistent modeling of weather and
  land surface hydrology, avoid site-specific
  calibration
• Capture topographically-driven spatial variation
  in precipitation, temperature, and wind fields
• Produce experimental streamflow forecasts to
  investigate skill in a coupled model setting
• Use hydrometeorological forecasts as a diagnostic
  tool for mesoscale atmospheric model
