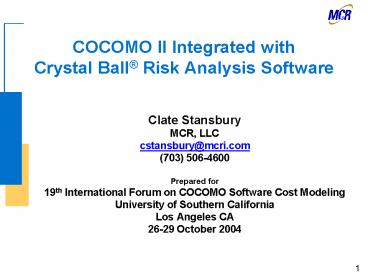

COCOMO II Integrated with Crystal Ball Risk Analysis Software

1
COCOMO II Integrated withCrystal Ball Risk
Analysis Software

• Clate Stansbury
• MCR, LLC
• cstansbury_at_mcri.com
• [phone]
• Prepared for
• 19th International Forum on COCOMO Software Cost
  Modeling
• University of Southern California
• Los Angeles CA
• 26-29 October 2004

2
Contents

• Purpose Describing Uncertainty
• Representing Uncertain Inputs
• Simulating Costs
• Correlating Inputs and Costs
• Summary

3
Estimators Must Describe Uncertainty

• Report Cost As a Statistical Quantity, Not a
  Point
• Cost of Any Incomplete Program Is Uncertain
• Estimator Must Report That Uncertainty as Part of
  His or Her Delivered Estimate
• Cost-risk Analysis Allows Estimator to Report
  Cost As a Probability Distribution, So
  Decision-maker Is Made Aware of
• Expected Cost (Mean)
• 50th Percentile Cost (Median)
• 80th Percentile Cost
• Overrun Probability of Project Budget

4
Representing Uncertain Inputs Using Triangular
Distributions
5
Triangular Distribution of Element Cost,
Reflecting Uncertainty in Best Estimate
Best-Estimate Cost (Mode Most Likely)
Cost Implication of Technical, Programmatic
Assessment
Optimistic Cost
6
COCOMO Cost Drivers as Triangular Distributions

• For Each COCOMO II Input
• Input Request Interpreted as a Triangular
  Distribution
• User Estimates Optimistic, Most Likely, and
  Pessimistic Values (which may not always be all
  different from each other)

Most Likely (mode)
Probability
Optimistic
Pessimistic
Cost
User provides three values for each COCOMO II
input, as though there were three separate
projects.
7
COCOMO Cost Drivers as Triangular Distributions
0.90
1.14
8
COCOMO Cost Drivers as Triangular Distributions

• Why triangular distribution?
• Triangular Distribution is Simple and Malleable
• Parameters (Optimistic, Most Likely, Pessimistic)
  Are Easy to Define and Explain
• Could Have User Provide Parameters for Normal,
  Lognormal, Exponential, Uniform, or Beta
  Distributions, for Example, if More is known
  about the distributions
• Good Topic for Further Research.

9
Processing Uncertainty Using Simulations
10
How to Process Triangular Distributions?

• Taking the Product of Effort Multipliers When
  Each EM is a Triangular Distribution?
• How to Compute Rest of COCOMO II Algorithm?
• How to Sum Code Counts for All CSCIs?

11
Traditional Roll-Up Method (Too Simple)

• Define Best Estimate of Each Cost Element to be
  the Most Likely Cost of that Element
• List Cost Elements in a Work-Breakdown Structure
  (WBS)
• Calculate Best Estimate of Cost for Each
  Element
• Sum All Best Estimates
• Define Result to be Best Estimate of Total
  Project Cost
• Unfortunately, It Turns Out That Things are Not
  as Simple as They Seem There are a Lot of
  Problems with This Approach

12
Why Roll-up Doesnt Work
13
What Information a Cost Estimate Should Provide

• Statistical Information Output About the Cost
• Probability Density (Frequency Distribution or
  Histogram)
• S-curve (Cumulative Probability Distribution)
• Percentiles
• Min, Max, Mode, Mean

14
What a Cost Estimate Should Look Like
(Crystal Ball? Outputs)
S-Curve
15
Cost-Risk Analysis Works by Simulating System Cost

• In Engineering Work, Computer Simulation of
  System Performance is Standard Practice, with Key
  Performance Characteristics Modeled by Monte
  Carlo Analysis as Random Variables, e.g.
• Data Throughput
• Time to Lock
• Time Between Data Receipt and Delivery
• Atmospheric Conditions
• Cost-Risk Analysis Enables the Cost Analyst to
  Conduct a Computer Simulation of System Cost
• WBS-element Costs Are Modeled As Random Variables
• Total System Cost Distribution is Determined by
  Monte Carlo Simulation
• Cost is Treated as a Performance Criterion

16
Crystal Ball? Risk- Analysis Software

• Commercially Available Third-Party Software
  Add-on to Excel, Marketed by Decisioneering,
  Inc., 2530 S. Parker Road, Suite 220, Aurora, CO
  80014, [phone]
• Inputs
• Parameters Defining WBS-Element Distributions
• Rank Correlations Among WBS-Element Cost
  Distributions
• Mathematics
• Monte-Carlo (Random) or Latin Hypercube
  (Stratified) Statistical Sampling
• Virtually All Probability Distributions That Have
  Names Can Be Used
• Suggests Adjustments to Inconsistent Input
  Correlation Matrix
• Outputs
• Percentiles and Other Statistics of Program Cost
• Cost Probability Density and Cumulative
  Distribution Graphics

17
How CB Simulations Work
Trial 2
Trial 5000
Trial 1
Assumption Cell G5
Total Cost
SUM(G4G8)
Forecast
18
Representing Correlations Among Risks
19
Risks are Correlated

• Resolving One WBS Elements Risk Issues by
  Spending More Money on It Often Involves
  Increasing Cost of Several Other Elements as Well
• For Example, Excessive Complexity in One CSCI
  Impacts Effort Required to Develop Other CSCIs
  that Interface with It
• Schedule Slippage Due to Problems in One CSCI
  Lead to Cost Growth and Schedule Slippage in
  Other Elements (Standing Army Effect)
• Hardware Problems Discovered Late in Program
  Often Have to Be Circumvented by Making
  Expensive Last-minute Fixes to the Software
• As We Will Soon See, Inter-Element Correlation
  Tends to Increase the Variance of the Total-Cost
  Probability Distribution
• Numerical Values of Inter-WBS-Element
  Correlations are Difficult to Estimate, but
  Thats Another Story

20
Maximum Possible Underestimation of Total-Cost
Sigma

• Percent Underestimated When Correlation Assumed
  to be 0 Instead of r (n of WBS elements)

21
Selection of Correlation Values

• Ignoring Correlation Issue is Equivalent to
  Assuming that Risks are Uncorrelated, i.e., that
  All Correlations are Zero
• Square of Correlation (namely, R2) Represents
  Percentage of Variation in one WBS Elements Cost
  that is Attributable to Influence of Anothers
• Reasonable Choice of Nonzero Values Brings You
  Closer to Truth
• Most Elements are, in Fact, Pairwise Correlated
• 0.2 is at Knee of Curve on Previous Charts,
  thereby Providing Most of the Benefits at Least
  Commitment

22
Determining Correlations Among COCOMO II Cost
Drivers

• Default Correlations
• Correlations of Intra-CSCI Inputs to Default to
  0.5
• Correlations of Inter-CSCI Efforts to Default to
  0.2
• More Detailed Default Correlations?
• Higher Correlation Between RELY and DOCU?
• COCOMO II Security Extension Cost Driver Related
  to Existing Cost Drivers

23
Summary

• Estimator Must Model Uncertainty
• Describe Uncertainty by Representing COCOMO
  Inputs as Triangular Distributions
• Calculate Implications of Uncertainty by Using
  Monte Carlo or Latin Hypercube Simulations to
  Perform COCOMO II Algorithm
• Consider Correlation Among CSCI Risks and Costs
• Professional Software, e.g., Crystal Ball, is
  Available to do Computations

24
Acronyms

• AA Assessment and Assimilation
• AT Automatically Translated code
• CB Crystal Ball
• CM Percent of Code Modified
• COCOMO Constructive Cost Model
• CSCI Computer Software Cost Integrator
• DM Percent of Design Modified
• EI External Input
• EIF External Interface File
• EO External Output
• EQ External Inquiry
• ILF Internal Logical File
• IM Effort for Integration
• KSLOC Thousands of Source Lines of Code
• MS Microsoft
• O,M,P Optimistic, Most Likely, Pessimistic
• SCED Schedule compression/expansion rating
• SLOC Source Lines of Code
• SU Software

25
Backup Slides
26
Correlation Matters

• Suppose for Simplicity
• There are n Cost Elements
• Each
• Each Corr(Ci ,Cj ) ? lt 1
• Total Cost

27
Cost Estimate Frequency Chart

• Approximation of Cost-Probability Distribution

28
Cost Estimate Cumulative-Probability Function

• Probability of Cost Being Less Than x

29
Cost Estimate Statistics

• Statistical Information
• Trials 1500
• Mean 190.12
• Median 189.36
• Mode ---
• Standard Deviation 13.96
• Variance 195.01
• Skewness 0.15
• Kurtosis 2.84
• Coeff. of Variability 0.07
• Range Minimum 152.86
• Range Maximum 237.42
• Range Width 84.56
• Mean Std. Error 0.36

Confidence Levels
Percentile Effort 55 191.11 60 193.12 65 195.36
70 197.51 75 199.69 80 202.34 85 204.86 90 2
08.09 95 213.71 100 237.42
Percentile Effort 0 152.86 5 167.41 10 171.84 1
5 175.86 20 178.55 25 180.77 30 182.66 35 184
.49 40 185.99 45 187.57 50 189.36
30
Correlation Matrices Allow User to Adjust
Correlations

• One Matrix for Each CSCI Allows Estimator to Set
  Correlations Among Cost Drivers for that CSCI
