CTMS Metadata Project Challenges and Issues

1

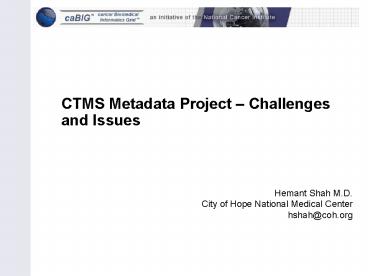

CTMS Metadata Project Challenges and Issues

• Hemant Shah M.D.
• City of Hope National Medical Center
• hshah_at_coh.org

2
Original Metadata Project

• The Scope
• Create data elements for the CTMS workspace
• Approach
• Use Information Models available if none
  available create one
• Manual extraction of data elements
• Manual mapping of data element components to
  vocabulary

3
Need for Metadata Project Revision

• Models started evolving rapidly
• Tools were developed
• Processes were defined

4
Revised Metadata Project Principles

• Create CDEs for focused areas
• Utilize the existing models - Work within the
  ambit of caAERS-BRIDG harmonization effort
• Enhance the areas in the models if required
• Follow the caCORE SDK process
• Review by the caBIG community

5
Steps for Revised Metadata Project

• Step 1 Selection and Prioritization of Areas
• Step 2
• Step 2 A Selection of the Base Representation
• Step 2 B Creation of Metadata Appropriate
  Representation
• Step 3 caCORE SDK Process
• Step 4 VCDE Review Process

6
Step 1 Selection and Prioritization of Areas

• Definition of Area
• A class or a set of closely related classes
  representing a facet or a feature of the domain
• Selection / Prioritization Criteria
• Classes that are or should be represented in both
  models (BRIDG and caAERS)
• Classes that are likely to be of interest to
  other sub-domains
• Classes that are more stable in the reference
  model

7
Initial Selected Areas

• Organization
• Person
• Study Subject
• Product
• Location
• Device
• Material
• Product

• Drug
• Ingredient
• Participation
• Observation
• Clinical Study
• Protocol
• Procedure
• Treatment

8
Modeling Effort Step 2 A Selection of the
Base Representation

• The representation that is closest to being a
  metadata appropriate representation will be
  selected
• Additional criteria for Base representation
• Expressivity/Comprehensibility
• Flexibility
• Practicality
• Reusability

9
Modeling Effort Step 2 B Creation of Metadata
Appropriate Representation

• Definition of Metadata Appropriate
  Representation
• A UML static model that
• Meets the caCORE SDK requirements for the
  Semantic Connector and UML loader tools
• Will generate data elements that are
• Semantically appropriate and connected to
  concepts in NCI Thesaurus
• Compatible with the existing caBIG Data Standards
  already approved by VCDE

10
Modeling Effort Step 2 B Additional Goals

• The representation should
• Be semantically and syntactically compatible with
  the reference models/larger domain models like
  HL7 RIM and BRIDG
• Be comprehended by the domain personnel
• Lead to data elements that are easily understood
  by the domain personnel
• Be suitable for being used/adapted by sub-domains
• Meet the caCORE SDK Code Generator expectations
• Retain the best features from both representations

11
Stratagem - Examples

• Intermediate Representation (Buffer Zone)
• Inheritance for Reuse Vs. Composition for Reuse
• Façade design pattern

12
Stratagems Intermediate Representation
Reference Model
Sub-Model
13
Stratagems Intermediate Representation
Reference Model
Buffer Model
Sub-Model
14
Stratagems Intermediate Representation
Reference Model
Buffer Zone
Sub-Model
15
Stratagems Intermediate Representation
Reference Model
Buffer Zone
Sub-Model
16
Stratagems Intermediate Representation
Advantages

• A representation that is more implementation
  oriented but retains semantic links with the
  implementation independent model
• Delineates clearly the area where we contributed
• Creates a representation that the other
  sub-domain models/implementations can utilize if
  suitable
• The authors of the reference model may consider
  the intermediate representation when they revise
  the model
• If changes occur in either models the linkage can
  still be maintained by making changes only in the
  intermediate representation

17
Stratagems Reuse by Inheritance Vs. Reuse by
Composition
Option 1 Reuse by Composition

• Problem
• Cannot get intuitive data elements like
• Subject First Name
• Subject Last Name
• But Names like
• Person Name First Name
• Person Name Last Name

18
Stratagems Reuse by Inheritance Vs. Reuse by
Composition
Option 2 No Reuse

• Problem
• Each class will have to have the same attributes
  repeated

19
Stratagems Reuse by Inheritance Vs. Reuse by
Composition
Option 3 Reuse by Inheritance

• Each class can have the same set of attributes
  without the need to repeat and the data elements
  generated will be intuitive e.g., Subject First
  Name, Data Manager Last Name etc.

20
Stratagems Façade design pattern

• Definition
• A Class or Object provides a single point of
  entry for services of a subsystem
• Aim is to hide a complex system of objects behind
  a single object

21
Stratagems Façade design pattern
HL7 RIM Organization Related Classes
22
Stratagems Façade design pattern
Transformed View of HL7 RIM Related Classes
23
Stratagems Façade design pattern
24
Stratagems Façade design pattern
25
Step 3 caCORE SDK Process
COH
NCICB
1
Generate XMI
1 Day
2
Generate Semantic Report Using Semantic Connector
3
4
Review Annotate Semantic Report
Review Annotate Semantic Report
1 Week
3 Days
5
Generate Annotated XMI
1 Day
7
6
Generate load CDEs using UML Loader
Create submission Package
1 Day
8
CDE curation in caDSR
1 Week
26
Step 4 VCDE Review Process

• The caBIG community and VCDE WS will be invited
  to comment at every stage
• The data elements will be submitted for the
  formal VCDE review process

27
(No Transcript)
28
Miscellaneous Issues

• Complex datatypes
• HL7 datatypes
• Units of Measure
• Use of LOINC

29
Problems with the Standard Data Elements Approach

• Fragility
• Every time the model undergoes a change, the DEs
  have to be changed
• The applications have to deal with two kinds of
  changes the model changes, the DE changes
• The domain experts spend their times deciding
  validity twice
• At the model level
• At the data standard level
• Potential of conflict at the two levels
• DEs are only a tunnel view of a larger picture

30
Too Many Dependencies
Models
Application
Vocabulary/Ontology
Data Elements
31
Common Model Repository Approach

• Have a caMSR instead of caDSR
• The application developers only identify the
  attributes from the model the extent of context
  information they want to include
• The repository should allow negotiation of models
  in a graphical manner
• The data elements would be generated on-the-fly
  by the client end components, from the models
• New Developer tools
• Closely integrated with Enterprise Architect
• With the current functionality of SIW
• With the ability to interact directly with the
  caMSR

32
Common Model Repository Approach
Application
Vocabulary/Ontology
