Inversion of reflection coefficients

1

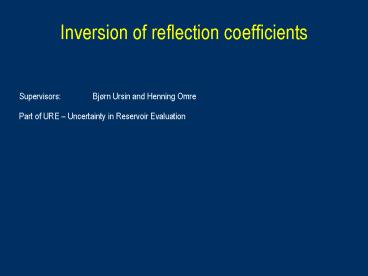

Inversion of reflection coefficients
Supervisors Bjørn Ursin and Henning Omre Part
of URE Uncertainty in Reservoir Evaluation
2
Vp and Vs
Dan Russell
Dan Russell
3
Wave propagation

• isotropic 3 parameters
• generally anisotropic 22 parameters
• transversely isotropic 5 parameters

4
Exact reflection coefficients

• Snells law
• Zoeppritz equations- angles- medium parameters
  in both layers- non-linear and complicated

5
Approximated reflection coefficients

• second order
• transversely isotropic
• reduced number of unknowns

6
Inversion of P-waves

• forward model rPP cm mTCm
• Jacobian J c (CCT)m
• least square solution
• statistical approach

7
Why inversion?

• link between geology and seismic
• P- and S-wave velocities are important rock
  properties
• substitution model in 4D seismic

8
Why anisotropic and second order?

• subsurface not isotropic
• valid for larger reflection angles
• valid for larger contrasts

9
(No Transcript)
