Hydrodynamic Slip Boundary Condition for the Moving Contact Line

1

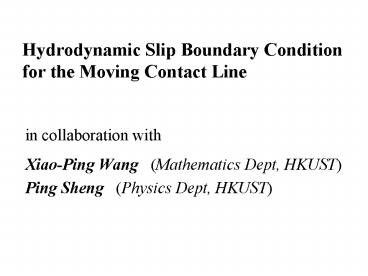

Hydrodynamic Slip Boundary Condition for the
Moving Contact Line

• in collaboration with
• Xiao-Ping Wang (Mathematics Dept, HKUST)
• Ping Sheng (Physics Dept, HKUST)

2
?
No-Slip Boundary Condition
3
from Navier Boundary Conditionto No-Slip
Boundary Condition
shear rate at solid surface

• slip length, from nano- to micrometer
• Practically, no slip in macroscopic flows

4
(No Transcript)
5
(No Transcript)
6
No-Slip Boundary Condition ?

• Apparent Violation seen from
• the moving/slipping contact line
• Infinite Energy Dissipation
• (unphysical singularity)

Are you able to drink coffee?
7
Previous Ad-hoc models No-slip B.C. breaks down

• Nature of the true B.C. ?
  (microscopic slipping mechanism)
• If slip occurs within a length scale S in the
  vicinity of the contact line, then what is the
  magnitude of S ?

8
Molecular Dynamics Simulations

• initial state positions and velocities
• interaction potentials accelerations
• time integration microscopic trajectories
• equilibration (if necessary)
• measurement to extract various continuum,
  hydrodynamic properties
• CONTINUUM DEDUCTION

9
Molecular dynamics simulationsfor two-phase
Couette flow

• Fluid-fluid molecular interactions
• Wall-fluid molecular interactions
• Densities (liquid)
• Solid wall structure (fcc)
• Temperature
• System size
• Speed of the moving walls

10
Modified Lennard-Jones Potentials
for like molecules
for molecules of different species
for wetting property of the fluid
11
fluid-2
fluid-1
fluid-1
dynamic configuration
f-1
f-2
f-1
f-1
f-2
f-1
symmetric
asymmetric
static configurations
12
boundary layer
tangential momentum transport
13
The Generalized Navier B. C.
when the BL thickness shrinks down to 0
viscous part
non-viscous part Origin?
14
uncompensated Young stress
nonviscous part
viscous part
15
Uncompensated Young Stressmissed in Navier B. C.

• Net force due to hydrodynamic deviation from
  static force balance (Youngs equation)
• NBC NOT capable of describing the motion of
  contact line
• Away from the CL, the GNBC implies NBC for single
  phase flows.

16
Continuum Hydrodynamic ModelingComponents

• Cahn-Hilliard free energy functional retains the
  integrity of the interface (Ginzburg-Landau type)
• Convection-diffusion equation (conserved
  order parameter)
• Navier - Stokes equation (momentum
  transport)
• Generalized Navier Boudary Condition

17
Diffuse Fluid-Fluid Interface Cahn-Hilliard free
energy (1958)
18
capillary force density
is the chemical potential.
19
tangential viscous stress uncompensated
Young stress
Youngs equation recovered in the static case by
integration along x
20
for boundary relaxation dynamics

first-order generalization from
in equilibrium, together with


21
Comparison of MD and Continuum Hydrodynamics
Results

• Most parameters determined from MD directly
• M and optimized in fitting the MD results
  for one configuration
• All subsequent comparisons are without adjustable
  parameters.

22
molecular positions projected onto the xz plane
23
near-total slip at moving CL
Symmetric Coutte V0.25 H13.6
no slip
24
profiles at different z levels

symmetric Coutte V0.25 H13.6
asymmetricCoutte V0.20 H13.6
25
symmetricCoutte V0.25 H10.2
symmetricCoutte V0.275 H13.6
26
asymmetric Poiseuille gext0.05 H13.6
27
The boundary conditions and the parameter values
are bothlocal properties, applicable to flows
with different macroscopic/external conditions
(wall speed, system size, flow type).
28
Summary

• A need of the correct B.C. for moving CL.
• MD simulations for the deduction of BC.
• Local, continuum hydrodynamics formulated from
  Cahn-Hilliard free energy, GNBC, plus general
  considerations.
• Material constants determined (measured) from
  MD.
• Comparisons between MD and continuum results show
  the validity of GNBC.

29
Large-Scale Simulations

• MD simulations are limited by size and velocity.
• Continuum hydrodynamic calculations can be
  performed with adaptive mesh
  (multi-scale computation by Xiao-Ping Wang).
• Moving contact-line hydrodynamics is multi-scale
  (interfacial thickness, slip length, and
  external confinement length scale).
