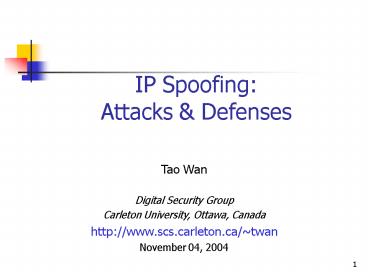

IP Spoofing Attacks Defenses
Tao Wan Digital Security Group Carleton
University, Ottawa, Canada http//www.scs.carleton
.ca/twan November 04, 2004
2
Outline

• Introduction
• IP Spoofing Attacks
• IP Spoofing Defenses
• Concluding Remarks

3
Introduction
4
An Example of Communication
1.1.2.0
1.1.1.0
5
Protocol Stacks (1)
HTTP
SNMP
802.3
802.11
others
OSI Model
6
Protocol Stacks (2)
HTTP
SNMP
802.3
802.11
others
7
Data Transmissions
Application
data
data
Application
TCP UDP
TCP UDP
IP
IP
routing
Data link/physical
Data link/physical
A
B
8
IP Header
9
TCP Header
10
IP Spoofing Attacks

• Basic Concept

• Denial of Services (DoS)
• DoS by Ping
• TCP Sync Flooding

• Session Hijacking

11
Basic Concept of IP Spoofing
http//www.carleton.ca
spoofed
12
Smurf IP DoS
A
ICMP Echo Reply Source T1 Dest V
V
13
Mail Address Spoofing Attacks
Catalog Request Return Addr V
Sears
A
Canadian Tire
Phonebook Request Return Addr V
Pizza orders Return Addr V
Bell Canada
V
Boston Pizza
14
TCP Sync Flooding (1)TCP 3-Way Handshake
A
TCP SYN
Half-open buffer
TCP SYNACK
A
B
TCP ACK
A
Open buffer
Half-open buffer has a limited size
Each half-open connection is associated with a
timer
15
TCP Sync Flooding (2)
A
B
C
D
J
V
I
E
Half-open buffer is full
F
G
H
16
Session Hijack
X
X
17
Session Hijack
B
18
IP Spoofing Defenses

• Ingress/Egress Filtering

• IP Traceback

• IP Authentication (IPSec AH)

• Cryptographic Generated Address (CGA)

19
Ingress/Egress Filtering (1)
if src_addr is from 10.10.0.0 then drop else
forward
10.10.0.0
10.10.10.0
if src_addr is from 10.10.0.0 then forward else
drop
20
Ingress/Egress Filtering (2)
Exchange
Exchange
Exchange
Exchange
21
Ingress/Egress Filtering (3)
Client Net
Client Net
Internet
ISP
Carleton U 134.117.x.x
if src_addr is from 134.117 then forward else
drop
22
IP Traceback

• ICMP Traceback

• Input Debugging

• Packet Marking

23
IP Security (IPSec)

• Two Protocols
• Authentication Header (AH)
• Encapsulating Security Payload (ESP)

• Two Modes
• Transport Mode
• Tunnel Mode

24
Authentication Header (1)
25
Authentication Header (2)
26
Comments

• Data Origin Authentication
• IP address is NOT modified en route
• Is it a real or spoofed IP ???

• Message Integrity
• Replay Prevention

27
Crypto Generated Address (IPv6)
28
Comments on CGA

• NOT applicable to IPv4

• Unrealistic assumptions of private/public key
  pairs

• Creating new DoS problem (by engaging a recipient
  into endless expensive crypto operations

29
Concluding Remarks

• A common technique for many types of attacks

• NO effective solutions

• An important problem to work on

30
Thanks !
