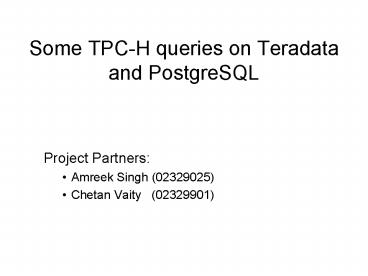

Some TPCH queries on Teradata and PostgreSQL

1
Some TPC-H queries on Teradata and PostgreSQL

• Project Partners
• Amreek Singh (02329025)
• Chetan Vaity (02329901)

2
Motivation

• Usage of real Database Systems
• Gain some experience in database tuning
• Work with Teradata machine in SIT

Test Setup

• Twin processors with 2GB RAM, proprietary
  parallel storage system
• Windows 2000 Advanced Server
• Teradata v4.1.2

• Twin Xeon processors with 2GB RAM, RAID 5
• Linux Kernel version 2.4.18-10smp
• PostgreSQL v7.2.1

3
TPC-H Schema
Part (200K rows)
Order(1500K rows)
Partsupp(800K rows)
Lineitem(6000K rows)
Supplier(10K rows)
Customer(150K rows)
Nation(24 rows)
Region(5 rows)

• A typical manufacturing concern database
• Approximately 1GB of data

4
TPC-H Query 2
SELECT s_acctbal, s_name, n_name,
p_partkey, p_mfgr, s_address, s_phone,
s_comment FROM part, supplier, partsupp,
nation, region WHERE p_partkey
ps_partkey AND s_suppkey ps_suppkey
AND p_size 15 AND p_type like 'BRASS'
AND s_nationkey n_nationkey AND
n_regionkey r_regionkey AND r_name
'EUROPE' AND ps_supplycost (
SELECT min(ps_supplycost)
FROM partsupp, supplier, nation,
region WHERE p_partkey
ps_partkey AND s_suppkey
ps_suppkey AND s_nationkey
n_nationkey AND n_regionkey
r_regionkey AND r_name 'EUROPE'
) ORDER BY s_acctbal desc, n_name, s_name,
p_partkey
Teradata Query Plan
5

• Analysis of query execution plans of both
  systems
• Added indexes (B-Tree indexes on all)
• Rewrote the query using explicit join clause
• Reduced query time from 40 minutes to 2 seconds

PostgreSQL Query Plan
6
Query execution times
After adding secondary index on n_nationkey on
supplier table
After Collect statistics
7

• Conclusion
• Query plans are very useful in database tuning
• Parallel architecture under full DBMS control
  performs
• Bibliography
• http//www.tpc.org
• PostgreSQL Documentation
• Teradata Documentation
• Database Tuning, Dennis Shasha
