Title: 3 main types of RNA


1

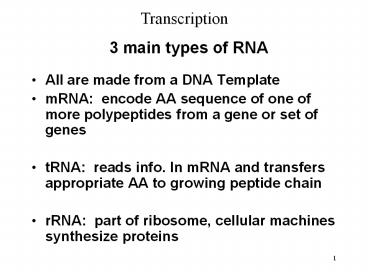

3 main types of RNA
Transcription
  • All are made from a DNA Template
  • mRNA encode AA sequence of one of more
    polypeptides from a gene or set of genes
  • tRNA reads info. In mRNA and transfers
    appropriate AA to growing peptide chain
  • rRNA part of ribosome, cellular machines
    synthesize proteins

2
Synthesis
  • Resembles DNA replication in its chemical
    mechanism, polarity, use of template
  • Has initiation, elongation, termination phase
  • Does not need a primer, only involves limited
    segment of DNA molecule

3
RNA Polymerase
  • DNA directed RNA polymerase
  • DNA template
  • Nucleotides (ATP, CTP, UTP, GTP)
  • Builds in the 5 to 3 direction

4
(No Transcript)
5
RNA Polymerase
6
Binds to initiation site through sequences called
promoter elements that are recognized by ? factor
7
(No Transcript)
8
(No Transcript)
9
Once initiation occurs ? factor dissociates
10
Recognized by ?70
Recognized by ?32
11
RNA Polymerase has helicase activity
Gyrases/topoisomerases are needed to prevent
positive supercoiling ahead of the transcription
bubble
12
An electron micrograph of three contiguous
ribosomal genes from oocytes of the salamander
Pleurodeles waltl undergoing transcription.
13
Transcription is tightly regulated
Not all genes are transcribed equally
14
Transcription Factor
  • Upstream of RNAP II initiation site, different
    combinations of specific DNA sequences each is
    recognized by corresponding site specific DNA
    binding protein
  • Each combination of DNA sequence and cognate DNA
    binding protein represent a control module

15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
The lac operon
21
Eukaryotic transcription
Heterochromatin transcriptionally
inactive Euchromatin may be transcriptionally
active
Eukaryotic RNAP have almost no affinity for
promoters on their own
22
Eukaryotic RNA Polymerases
  • RNAP I synthesis of transcripts called
    preribosomal RNA precursor 18s, 5.8s, 28s RNA
  • RNAP II synthesis of mRNA
  • RNAP III synthesize tRNA

23
(No Transcript)
24
RNA Polymerase II
  • Has 12 subunits
  • Needs transcription factors that stimulate the
    enzyme to bind to a nearby promoter
  • General TF required at every RNAP II promoter

25
Functionally equivalent to ? factor
26
Gaining access to the DNA template
Histones must be modified to access DNA
Histone acetyltransferases decrease
charge Histone deacetylases increase charge
27
Lysine
Acetyllysine
28
Gene Silencing
5 of cytidine residues are methylated at the 5
position
These are most often found at CG sequences
Hypermethylation is associated with
heterochromatin
29
Recruiting RNA polymerase
30
Regulated Transcription
31
Regulated Transcription
32
RNA Processing
  • Most RNA is processed after synthesis
  • Ribozymes catalyze post-transcriptional
    processing
  • Primary Transcript newly synthesized RNA
    molecule occurs in mRNA and tRNA contains
    sequence encoding one gene but encoded
    polypeptide not continuous
  • Noncoding Regions introns
  • Coding Region exons

33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
Post-transcriptional control
38
(No Transcript)
39
(No Transcript)
40
RNA Editing Changes the Meaning
41
RNA Editing Changes the Meaning
C to U
A to I
42
There are many ways to regulate the meaning of
genes after transcription
Prevent translation
43
There are many ways to regulate the meaning of
genes after transcription
Degrade the message
44
(No Transcript)
45
(No Transcript)
46
Target the mRNA
47
What about mistakes? Nonsense Mediated Decay
