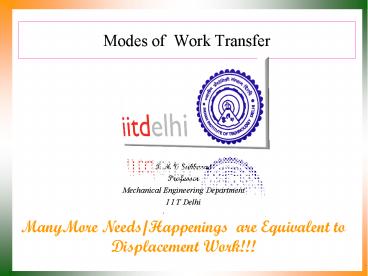

Modes of Work Transfer

1
Modes of Work Transfer

• P M V Subbarao
• Professor
• Mechanical Engineering Department
• I I T Delhi

ManyMore Needs/Happenings are Equivalent to
Displacement Work!!!
2
Displacement Work
3
Generalized Process in A Control Mass

• p p0 k (V-V0)
• p2 p02 k (V-V0)2
• Polytropic Nature of Fluid Process
• pVn Constant
• n Polytropic constant.
• n0 Constant Pressure Process.
• n? Constant Volume Process.

4
The Polytropic Process by A Control Mass

• One in which the pressure-volume relation is
  given as
• pVnconstant
• n may have any value from minus to plus
  infinity.
• Work transfer during a polytropic process.

5

• For a vapour (Real Gas) under going a process.

6
Evolution of Wind Turbines

• Wind is a clean, safe, renewable form of energy.
• Although the use of wind power in sailing vessels
  appeared in antiquity, the widespread use of wind
  power for grinding grain and pumping water was
  delayed until
• the 7th century in Persia,
• the 12th century in England, and
• the 15th century in Holland.
• 17th century, Leibniz proposed using windmills
  and waterwheels together to pump water from mines
  in the Harz Mountains.
• Dutch settlers brought Dutch mills to America in
  the 18th century.
• This led to the development of a multiblade wind
  turbine that was used to pump water for
  livestock.
• Wind turbines were used in Denmark in 1890 to
  generate electric power.
• Early in the 20th century American farms began to
  use wind turbines to drive electricity generators
  for charging storage batteries.

7
SOME TYPES OF WIND TURBINES HAWT
8
SOME TYPES OF WIND TURBINES VAWT
9
Schematic of Modern Wind Turbines
10
Wind Flow Past A Locked Wind Turbine
11
Work Transfer in A Wind Turbine Control Volume
12
Work Transfer in a Flow Device Control Volume

• A Centrifugal Compressor

13
Continuous flow system Pressure at inlet is pi
and pressure at exist is po always. Fluid with
Vi,Ti enters and leaves with Vo and To. The
volume is subjected to a changing pressure field..
Outlet po, To, Vo
p
How to define the infinitesimal work?
14
Work Transfer in a Flow Device Control Volume
15
Acquisition of Work from Constant Volume Flow
Process
16
The Hydro Power House
17
Wind generation for developing countries

• Unlike the trend toward large-scale grid
  connected wind turbines seen in the West.
• The more immediate demand for rural energy supply
  in developing countries is for smaller machines
  in the 5 - 100 kW range.
• These can be connected to small, localized
  micro-grid systems and used in conjunction with
  diesel generating sets and/or solar photovoltaic
  systems.
• The main area of growth being for very small
  battery charging wind turbines (50 - 150 Watts).
• In Inner Mongolia there are over 30,000 such
  machines used by herders for providing power for
  lighting, televisions, radios, etc.
• Other applications for small wind machines
  include water pumping, telecommunications power
  supply and irrigation.

18
Polytropic work Transfer in A Flow Device
19
Shaft Work
Energy transmission with a rotating shaft is very
common in engineering practice.
A force F acting through a moment arm r generates
a torque T of
20
Spring Work
21
Work Done on Elastic Solid Bars
For linear elastic springs, the displacement x is
proportional to the force applied
22
Work Transfer in Nature
How can a baby snail come out of a egg shell?
23
Who controls the Growth Shape Equilibrium Shape
of A Crystal
24
Why cutting of a solid consumes power?
25
Who decides the beauty of Table Cloth ???
26
The Role of Surface Tension in Engineering

• When splitting a solid, the amount of energy
  required is 2sA, where 2A is the area created
  (one A on each side).
• This energy is less than that needed just to
  break the bonds, since there is atomic and
  electronic relaxation.
• The surface energy is always positive because the
  atoms are less bound at the surface.
• The surface tension can be defined as the
  reversible work of formation of a unit area of
  surface at constant T, V, m.
• The surface tension is the two-dimensional analog
  to the pressure.

27
Thermodynamic Definition of Surface Tension
The relative change in internal energy of a
control mass w.r.t. change in surface area at
constant temperature, volume.
Law of a Nature
The tendency to minimize surface energy is a
defining factor in the morphology and composition
of surfaces and interfaces. This Is important
for Solids Liquids.
28
Values of Surface Tension for Selected Materials

Material g J/m2
Tungsten (solid) 2.9
Iron (solid) 2.2
Iron (liquid) 1.9
MgO 1.2
Mercury (liquid) 0.5
Water 0.07
Acetic acid 0.03
Nitrogen (liquid) 0.01
Helium (liquid) 0.0003
29
Work Associated with the Stretching of a Liquid
Film
30
The Faradays Work An Amazing form of Work
Transfer

• Consider a conducting rod PQ moving at a steady
  speed V perpendicular to a field with a flux
  densityB.
• An electron (negative charge e) in the rod will
  experience a force ( Bev) that will push it
  towards the end P.

31
Description of Work done by A Conductor

• The same is true for other electrons in the rod,
  so the end P will become negatively charged,
  leaving Q with a positive charge.
• As a result, an electric field E builds up until
  the force on electrons in the rod (unit length)
  due to this electric field ( Ee) balances the
  force due to the magnetic field

Force per unit charge on Rod of unit length
32
For a rod of length L, define the EMF as
What happens when the EMF drives a current in an
external circuit? To do this, imagine that the
rod moves along a pair of parallel conductors
that are connected to an external circuit
33
Electrical Loading of Conductor
The EMF will now cause a current to flow in the
external resistor R. This means that a similar
current flows through the rod itself giving a
magnetic force, BIL to the left.
34
Quantification of the Faradays Work
L is now the separation of the two conductors
along which the rod PQ moves. An equal and
opposite force (to the right) is needed to keep
PQ moving at a steady speed.
In a time t, the rod moves a distance x
Vt Work done on the rod
35
The Pairs of Work Transfers
Energy dissipated in R power x time EMF I
t Giving B I L V t EMF I t or,
as before, EMF B V L
