Title: Integrated Civil Engineering Design Project (Building Structure Design Example) CIVL 395


1

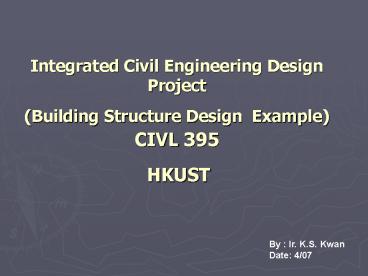

Integrated Civil Engineering Design
Project(Building Structure Design Example)
CIVL 395
  • HKUST

By Ir. K.S. Kwan Date 4/07
2
Architectural Consideration
  • Limitation (plot ratio, height, public
    facilities, slope)
  • View/light/Wind climate
  • Flat size, Number of Blocks
  • Podium (Other Facilities Cube house/ Carpark/
    Commercial complex)
  • Budget estimation
  • Other considerations

3
Structural Engineer Consideration
  • Any site construction difficulties
  • Site Access
  • Construction platform
  • Foundation option
  • Time for completion
  • Tower Design
  • To provide a cost-effective solution

4
Case A 45 storey
Lack of flexibility by structural element
End wall should be effectively used as shear wall
to provide better stiffness
5
  • To enhance the stiffness of building by linking
    the walls as much as possible

6
Lack of flexibility by structural element
Too much wall
No support for slab
7
Wall not allowed in front of stairs
Beam ahead bedroom
Too much wall
End wall should be effectively used as shear wall
to provide better stiffness
8
Structural Framing Plan
Secondary Beam for gravity load only
Aspect ratio 45x3/19 7.0
Lintel Beam For both wind load and gravity load
9
Case B 15 storey
10
Aspect ratio 15x3/60 0.75
Column structure used
11
Case C 57 storey
12
Aspect ratio 57x3/24.3 7.03
13
Podium Structure
  • To confirm the column layout under transfer
    structure
  • To confirm the transfer plate/column layout
  • To confirm the size of transfer structure (e.g.
    thickness of transfer plate)
  • Evaluate the tower loading and estimate the size
    of transfer structure size

14
(No Transcript)
15
Tower Framing plan
16
Transfer Structure under tower
17
Supporting columns under transfer structure
18
Other beam/column structure below
19
Other beam/column structure below
20
Other beam/column structure below
21
Preliminary Computer Model
  • Use the effective members for first model
  • Estimate the member size for model input based on
    gravity load first and provide some reserve for
    wind load (say 20 40 of wind load)
  • Check top deflection lt H/500

22
  • Only analysis the critical wind direction
  • Only use the effective members for modeling

Minor wall not selected for preliminary modeling
Width of building to calculate the wind load
23
  • For preliminary model, only typical floor is used
    to simulate the whole tower.
  • Building height should be maintained

Tower model
Podium model
24
Element Checking
  • Check critical lintel beam force (e.g. check wind
    shear stress vV/bd )
  • Check critical element force (e.g. wall element
    under high compression/tension)

25
Loading Schedule Checking
Check average gravity load (Total DL/Gross Floor
Area 1520 KN/m2
Total axial force 0
Check total wind shear force total wind force
applied at the building
26
Q A
27
(No Transcript)
