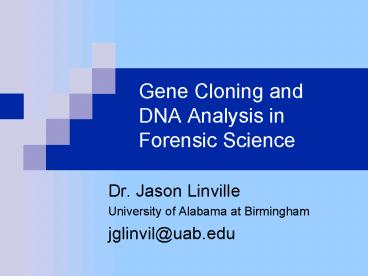

Gene Cloning and DNA Analysis in Forensic Science

1
Gene Cloning and DNA Analysis in Forensic Science

• Dr. Jason Linville
• University of Alabama at Birmingham
• jglinvil_at_uab.edu

2
We already know

• The human genome contains coding and non-coding
  regions of the genome.
• Among individual humans, the genome is 99.8
  similar, but differences exist in coding regions
  (very few) and non-coding regions (not quite as
  few).
• No two humans have identical DNA.
• (except identical twins)

3
We already know

• Also
• Genetic markers are inherited from parents can
  be used to test kinship.

YES
NO
YES?
4
Summary

• Identifying suspect
• History
• STRs
• Kinship Analysis
• Sex Identification

5
Genetic Testing

• The basis of genetic fingerprinting is that no
  two humans DNA is alike (except identical twins).

Polymorphisms are positions where the nucleotide
sequence is not the same in every member of the
population.
6
DNA Markers

• Restriction fragment length polymorphisms
  (RFLPs) digest PCR product, gives unique pattern.

• Short tandem repeats (STRs) different repeats at
  a locus.

• Single Nucleotide Polymorphisms base change
  possible in genome.

7
History of DNA Testing

• RFLP Multilocus (fingerprint)
• RFLP single locus
• PCR Strips
• PCR STR
• Mitochondrial DNA

8
Restriction Fragment Length Polymorphisms (RFLP)
History of DNA Testing

• Restriction Enzymes
• Individuals differ in number of cleavage sites
  and distance separating cleavage sites

• Length variation of fragments occurs two ways
• Base Change at restriction site
• Variable Number of Tandem Repeats (VNTR)

9
History of DNA Testing
RFLP

• Length variation of fragments occurs two ways
• Base Change at restriction site
• Variable Number of Tandem Repeats (VNTR)

• Individuals differ in number of cleavage sites
  and distance separating sites

10
Base Change at Restriction Site
History of DNA Testing gt RFLP
Person A
5'
3'
GGCC
GGCC
GGCC
GGCC
Person B
5'
3'
GGCC
GGCC
GGTC
GGCC
11
Base Change at Restriction Site
History of DNA Testing gt RFLP
Hae III cuts at
5 GGCC 3
5'
3'
GGCC
GGCC
GGCC
GGCC
CC
GG
CC
GG
CC
GG
5'
3'
GGCC
GGCC
GGTC
GGCC
CC
GG
CC
GG
12
VNTR
History of DNA Testing gt RFLP
VNTR - repeat unit 2-30 b.p. long repeated 5-50
times Example D1S7
GGTGGAGAG ( 9 b.p.)
29 repeat units
GGCC
GGCC
21 repeat units
GGCC
GGCC
13
History of DNA Testing gt RFLP

• Sir Alec Jeffreys

Forensic Applications of DNA Fingerprinting
Jeffreys AJ, Wilson V, Thein SL. Hypervariable
minisatellite regions in human DNA. Nature
1985 31467-73.
14
RFLP - Multilocus
History of DNA Testing gt RFLP
No amplification - Requires high quality DNA
Procedure

• Extract DNA
• Digest with restriction enzyme
• Separate on agarose gel
• Southern Blot
• Label with sequence specific probe

15
History of DNA Testing gt RFLP
RFLP - Multilocus
Multilocus - Probe binds to multiple sites with
similar sequences, but different lengths
Locus 1
Probe
Locus 2
Binds to approximately 25 loci producing complex
pattern of 30-50 bands
16
History of DNA Testing gt RFLP gt Multilocus
17
History of DNA Testing gt RFLP
RFLP - Multilocus

• Probe binds to multiple sites
• Produces complex pattern of 30-50 bands

• Disadvantages
• Requires high quality DNA
• Overlap of Loci
• Cannot differentiate mixed samples

18
History of DNA Testing gt RFLP
RFLP Single Locus
Probes bind to only one VNTR locus Produces
one band (homozygous) or two bands
(heterozygous)

• Advantages
• Examine one locus at a time

• Disadvantages
• Limited resolution
• Requires high quality DNA

19
History of DNA Testing gt RFLP gt Single Locus
D2S44 probe Hae III digested Lanes 6 and 10
match Lanes 8 and 11 match
20
History of DNA Testing gt RFLP gt Single Locus
21
History of DNA Testing gt RFLP
RFLP Problems

• With each method, the quantity and quality of DNA
  had to be high.
• Different intensities made fingerprint difficult
  to interpret. Sizes could not be exactly
  measured (binning)

22
Chris Mullin

• Position Forward
  Born 7/30/63

  Height 6-7 / 2m 1cm

  Weight 215 lbs. / 97.5kg

  College - St. John's (N.Y.) '85

23
Kary Mullis

• 1993 Nobel Prize Winner

Inventor of the polymerase chain reaction (PCR)
24
History of DNA Testing gt PCR
PCR Based Methods

• Sequence Specific Oligonucleotide (SSO) probe
• Amplified fragment-length polymorphism (AMP-FLP)
• Large VNTR regions (10-30 b.p. repeat)
• Short Tandem Repeats (STR) (2-7 b.p. repeat)

25
History of DNA Testing gt PCR gt SSO Probe
Sequence variation among individuals at certain
loci

• Procedure
• Amplify region of DNA containing sequence
  variation using labeled primers
• Add labeled PCR product to sequence specific
  probe strips
• Labeled DNA attaches to homologous sequences

26
History of DNA Testing gt PCR gt SSO Probe

• Example DQA
• 6 possible alleles based on sequence

27
History of DNA Testing gt PCR gt SSO Probe

• Example DQA

1.2 1.3 4
All but 1.3
1
2
3
4
C
1.1
1.3
DQ-Alpha
1.2 1.3 4
All but 1.3
1
2
3
4
C
1.1
1.3
DQ-Alpha
Sample 1 2, 4
1.2 1.3 4
All but 1.3
1
2
3
4
C
1.1
1.3
DQ-Alpha
Sample 2 1.1, 1.2
28
History of DNA Testing gt PCR gt STR
Short Tandem Repeats

• Repeat unit 2-7 b.p. in length
• Repeated 5-30 times
• Length is appropriate for PCR amplification

29
History of DNA Testing gt PCR gt STR
Cells
XX XX XX XX
1 2 3 4
XX XX XX XX
X
5 6 7 8
X
X
X
XX XX XX XX
X
X
X
X
X
9 10 11 12
X
XX XX XX XX
13 14 15 16
XX XX XX XX
17 18 19 20
XX XX XY
21 22 23
30
History of DNA Testing gt PCR gt STR
Short Tandem Repeats
X X
10 repeats
5
8 repeats
D5S818
31
History of DNA Testing gt PCR gt STR
Short Tandem Repeats

• Units 4-7 bp in length repeated 5-30 times

Example D5S818 (7 allele) 4 b.p. AGAT
repeated 7 times
5'---AGAT AGAT AGAT AGAT AGAT AGAT AGAT---3'
32
History of DNA Testing gt PCR gt STR
13 CODIS Loci
33
History of DNA Testing gt PCR gt STR
DNA Monoplex

• Monoplex means only one locus is amplified
• For this example, we will look at D5S818.

34
History of DNA Testing gt PCR gt STR
DNA Monoplex
11 repeats
12 repeats
35
History of DNA Testing gt PCR gt STR
DNA Monoplex
11 repeats
12 repeats
36
History of DNA Testing gt PCR gt STR
DNA Monoplex
11 repeats
12 repeats
37
History of DNA Testing gt PCR gt STR
D5S818
7 8 9 10 11 12 13 14 15
38
History of DNA Testing gt PCR gt STR
D5S818
11 12
39
History of DNA Testing gt PCR gt STR
Multiplex

• In a multiplex run, more than one locus is
  amplified at one time.

• In order to avoid overlap
• The primer sites are moved
• The dye is changed

40
History of DNA Testing gt PCR gt STR
DNA Multiplex
11 repeats
12 repeats
41
History of DNA Testing gt PCR gt STR
DNA Multiplex
11 repeats
12 repeats
42
History of DNA Testing gt PCR gt STR
DNA Multiplex
11 repeats
12 repeats
43
History of DNA Testing gt PCR gt STR
DNA Multiplex
11 repeats
12 repeats
44
History of DNA Testing gt PCR gt STR
DNA Multiplex
11 repeats
12 repeats
45
D5S818
D13S317
D7S820
D16S539
46
vWA
TH01
TPOX
CSF1PO
Am
47
(No Transcript)
48
(No Transcript)
49
Ladders
History of DNA Testing gt PCR gt STR gt Multiplex
50
Samples
History of DNA Testing gt PCR gt STR gt Multiplex
51
History of DNA Testing gt PCR gt STR gt Multiplex
52
History of DNA Testing gt PCR gt STR gt Multiplex
53
Kinship by DNA profiling

• STR Analysis
• Using STR analysis with a known mother, potential
  fathers can be eliminated.

• Mitochondrial Analysis
• mtDNA is maternally inherited (cant use for
  paternity)
• Good for tracing ancestors

54
Sex Identification
Y chromosome-specific loci

• Some genetic markers are found only on the Y
  chromosome.
• Presence of male only amplified band identifies
  the subject as male.
• Some of these Y markers can be used to ID the
  individual male in mixed samples.

55
Sex Identification
Amelogenin gene

• Y chromosome testing cannot differentiate between
  female DNA and a failed sample.
• Amelogenin gene is found on each sex chromosome,
  but is longer on Y.
• Male gives 2 bands, female gives just one band.
