Title: Opportunities for Gas Separation Technology in the Clean Energy Field


1

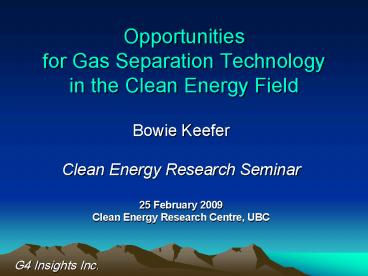

Opportunitiesfor Gas Separation Technologyin
the Clean Energy Field
  • Bowie Keefer
  • Clean Energy Research Seminar
  • 25 February 2009
  • Clean Energy Research Centre, UBC
  • G4 Insights Inc.


2
Motivation
  • Clean energy systems will achieve higher
    efficiency, extend fossil resources, avoid
    noxious emissions, and reduce the risks of major
    adverse climate impacts from global warming.
  • Gas separation has key roles in advanced fuel
    processing and energy conversion systems.

3
Engineering Ingredients
  • Applied physical chemistry
  • Materials science
  • Thermofluid dynamics
  • Contactors for heat and mass transfer
  • Process intensification and integration
  • Fluid machinery
  • Unified and multidisciplinary approach

4
Main Gas Separation Applications for clean energy
systems
  • Oxygen generation
  • Fuel processing
  • Petroleum refining
  • Coal or biomass gasification or hydrogasification
  • Methane upgrading
  • Hydrogen production and recovery
  • CO2 capture
  • Advanced fuel cell power plants

5
Oxygen Generation
  • Cryogenic distillation
  • Pressure/vacuum swing adsorption
  • Polymeric membranes
  • High temperatureta ceramic membranes
  • Chemical looping

6
CO2 Capture
  • Thermal Power Plants
  • Post-combustion capture consider QuestAir VSA
    for CO2 capture, advanced CO2 adsorbents.
  • Oxyfuel combustion consider QuestAir O2 for
    25-30 power saving relative to cryogenic air
    separation.
  • Precombustion capture sorption-enhanced water
    gas shift reactor for high temp CO removal.
    Integrations with SOFC.

7
Gas Separation Technology Development is an
active and competitive field with many
opportunities!
  • Absorption
  • Chemical solvents (e.g. amines) with thermal
    swing regeneration
  • Physical solvents (e.g. Selexol) with pressure
    swing regeneration
  • Chemical looping
  • Mineral sorbents (e.g. CaO) with thermal swing
    regeneration
  • Adsorption
  • Adsorbents (e.g. active carbons or zeolites) with
    pressure swing (PSA) or thermal swing (TSA)
    regeneration
  • Membranes
  • Pressure or electric current driven, selective
    permeation of oxygen, hydrogen or CO2
  • Cryogenic distillation

8
PSA Process Overview
9
Evolution of PSA TechnologyQuestAir Technologies
program
10
Emergence of Compact PSA Technology
Conventional Hydrogen PSA
QuestAir Rotary Hydrogen PSA device
  • Compact PSA technology
  • Structured adsorbent
  • Rotary valve technology
  • Pressure Swing Adsorption (PSA)
  • Established method of gas separation
  • Used in large industrial applications

(Note the author is the original founder of
QuestAir Technologies Inc.)
10
11
Working Principle of Compact PSA
Structured adsorbent cells in adsorber rotor
Product H2
Purge
Designed to minimize size and power
requirement. Several potential equipment options
depending on the application requirements
Rotary valve faces
Exhaust CO2
Feed H2 CO2
12
Compact PSA for CO2 Concentration
Purge - PSA/VSA product - TSA cathode exhaust
air
Product - H2 purity as
desired
Heavy reflux is recirculation of the more
strongly adsorbed fraction (e.g. CO2) to rinse
less strongly components from the adsorbers,
increasing both CO2 product purity and H2 product
recovery.

Exhaust CO2 product
Feed - H2, CO, CH4 - CO2, H2O
Heavy reflux
13
Methane-CO2 Separation
14
QuestAir Industrial H2 PSA Plant
15
Compact Oxygen PSA Unit
  • Separates concentrates oxygen from air feed
    stream
  • Higher purity of reactant increases fuel cell
    power density
  • Volume 14 Liters
  • Capacity 500 kg/day O2 delivered at 70 O2
    purity
  • Sufficient oxygen flow for 50 kW SOFC

16
Compact Pressure Swing Adsorbers for the CO2
Separation Module
50 kW
150 kW
17
Hydrogen Recovery in RefineriesQuestAir twin
module rapid cycle rotary PSA
18
Transportation Energy
  • In a highly competitive field, successful
    innovation and entrepreneurial determination
    will help select between different pathways.
  • Examples
  • Hybrid ICE vehicles (highly successful launch)
  • Hydrogen fuel cell vehicles (attempting launch)
  • SOFC hybrid vehicles (potential dark horse)
  • ICE Internal Combustion
    engine
  • SOFC Solid Oxide Fuel Cell

19
Low temperature H2 Fuel CellsversusHigh
temperature SOFC
  • Hydrogen for fuel cell vehicles is most
    economically produced by steam reforming of
    hydrocarbon fuels such as natural gas, gasoline,
    methanol or DME.
  • System efficiency of low temperature hydrogen
    fuel cells is compromised by energy requirements
    for fuel processing and compression to store the
    hydrogen.
  • SOFC working temperature is high enough for fuel
    processing by high grade waste heat directly
    recovered from the fuel cell.
  • Internal reforming SOFC power plants can run on
    many conventional hydrocarbon or alcohol fuels
    rather than H2.

20
SOFC for Propulsion Power?
  • Vehicular applications require robustness under
    severe climate, environmental, shock, vibration
    and cyclic duty conditions.
  • SOFC stack materials science must still overcome
    major challenges to establish durability.
  • SOFC developers have been working on vehicle
    auxiliary power units (APU) which would need to
    satisfy similar durability.
  • Successful SOFC APU development could trigger
    initial use of SOFC vehicle propulsion engines as
    range extenders on plug-in hybrids.
  • Subject to satisfactory stack life expectancy,
    future SOFC engines may be used in heavy duty
    applications in highway, rail and marine
    transport.
  • Watch this game-changing technology for moving
    the efficiency goalposts!

21
Basic Approach
Purpose Apply advanced gas purification
technology to improve efficiency, performance and
cost competitiveness of SOFC systems Specific
Objectives
  • Recover and recycle hydrogen at anode
  • Improve steam and heat management
  • Maximize electric power output
  • Wide range load-following and turndown
  • Simplification and cost reduction

22
Conventional SOFC power plant
Anode recycle
Pre-reformer
Anode
SOFC
Fuel
Cathode
Burner
Air Blower
Heat Recovery
Fairly high efficiency from hydrocarbon fuels,
but excess heat production which cannot easily be
recovered in small power plants
23
Hybrid SOFC-GT power plant
Anode recycle
Pre-reformer
Anode
SOFC
Fuel
Cathode
Burner
Generator
Gas Turbine
Can achieve high efficiency in large power plants
with simple fuels
24
Enriched H2 Recycle SOFC power plant
Anode recycle
Pre-reformer
CO2 Separation Module
Anode
SOFC
Cathode
Thermal Recuperation
Blower
CO2 and Excess H2O
Hydrocarbon Fuel
Feed Air
Exhaust Air
Less heat generation, more electrical output and
highest efficiency even for quite small power
plants
25
Gas Separation Benefits for SOFC
  • Hydrogen recycle raises hydrogen concentration
    throughout anode
  • Lower steam to carbon ratio without coking
  • Possible elimination of steam at inlet
  • Less steam and greater H2 concentration increases
    cell voltage, current and fuel utilization
  • More power and less heat produced
  • Internal reforming reaction is delayed and anode
    gas composition is more uniform
  • Less thermal gradient less thermal stress

26
H2/O2 Fuel Cell Ideal Potential
TDS
H2 ½ O2 ? H2O(g)
27
Basic Thermodynamics
for hydrogen as fuel, n 2
28
Calculated Effect on Polarization Curve
29
Calculated Effect on Open Circuit Voltage H2
Recycle
30
Modeling of Alternative SOFC Systems
  • Alternatives considered
  • Case 1 conventional unpressurized SOFC system,
    fuel utilization 85.
  • Case 2 enriched hydrogen recycle with SCA (Sweep
    gas purged Cyclic Adsorption) for CO2 transfer
    from anode exhaust to cathode exhaust air, fuel
    utilization 96.
  • Case 3 enriched hydrogen recycle with VSA
    (Vacuum Swing Adsorption) for CO2 separation and
    concentration, fuel utilization 95.5.

31
Case 2 Atmospheric SOFC Rotary Adsorber with
cathode exhaust purge
Anode Exhaust
Fuel
Steam
Condenser
Pre-reformer
Water gas shift reactor
Anode
SOFC
Blower
Cathode
Water
QuestAir C-7100Rotary Adsorber Module
Blower
Exhaust CO2 in air
Air
32
Case 3 Low pressure SOFC and QuestAir VSA with
heavy reflux
Recycle or H2 Export
Fuel
Steam
Condenser
Pre-reformer
Water gas shift reactor
Anode
SOFC
Blower
Cathode
Burner
Water
Tail Gas
QuestAir VSA
Air
Heat Recovery
Heavy Reflux
Optional Reflux Compressor
Pure CO2
33
SOFC Power Density versus Voltage
  • Legend
  • Case 1 conventional SOFC without enriched
    hydrogen anode recycle
  • Case 2 SOFC with anode recycle by QuestAir
    compact SCA transferring diluted CO2 to cathode
    exhaust
  • Case 3 SOFC with anode recycle by QuestAir
    compact VSA delivering purified H2 and enriched
    CO2 product streams. Vacuum pump efficiency
    50, including electric motor drive.
  • Case 3A As Case 3, but vacuum pump efficiency
    60.

34
Cell Voltage versus SOFC Power Density
35
Power Plant Efficiency versus Power Density
36
Excess Heat versus Power Density
37
Potential Applications in SOFC Systems
  • Distributed CHP and remote power
  • Improved efficiency and heat distribution
  • H2 cogeneration for residential refuelling
  • Mobile and transportation power plants
  • Highest efficiency from hydrocarbon fuels
  • Load-following and turndown
  • Minimal high grade thermal emission in cruise
    mode
  • Larger power plants
  • High efficiency ( 75 LHV)
  • CO2 sequestration
  • H2 or syngas cogeneration

38
Future Central Power Generation
  • Enriched hydrogen recycle boosts SOFC efficiency
    and enables pre-reforming or hydrogasification of
    the fuel feedstock.
  • For solid fuels, high pressure hydrogasification
    minimizes oxygen requirement and generates
    methane.
  • Methane in feed to SOFC is desirable for stack
    cooling and heat recovery by endothermic internal
    reforming.
  • Hydrogen may be a cogeneration product with
    electricity and CO2.
  • Auxiliary turbine expanders may drive compressors
    and other auxiliary loads including compression
    of captured CO2.

39
Enriched H2 Recycle SOFC power plant with
Hydrogasification of Coal or Biomass
Anode recycle
Hydrogasifiier
CO2 Separation Module
Anode
Solid Fuel (coal or biomass)
SOFC
Cathode
Char
Char Gasifier
ASU
Gas Turbine
CO2 and Excess H2O
Exhaust Air
Ash
Feed Air
Optional O2 enrichment to cathode air feed
Less heat generation, more electrical output and
greater efficiency
40
The Key Role of Hydrogen within advanced energy
conversion systems(but less promising as a
merchant fuel commodity!)
  • Some examples
  • Solid oxide fuel cell (SOFC) with hydrogen
    enriched anode recycle loop
  • Hydrogasification of biomass or coal
  • Decarbonization of natural gas or integrated
    gasification syngas in combined cycle power
    plants.

41
Future Outlook

Let a hundred flowers bloom, let a hundred
schools of thought contend.
Mao Tse-Tung
G4 Insights Inc.
Write a Comment
User Comments (0)
About PowerShow.com
