Reverse Engineering of Polynomial Models of Gene Regulatory Networks

1

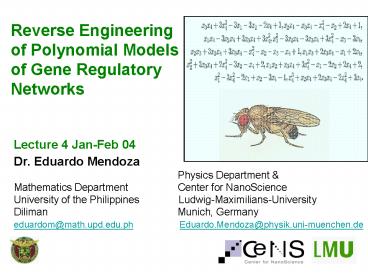

Reverse Engineering of Polynomial Models of Gene
Regulatory Networks

• Lecture 4 Jan-Feb 04
• Dr. Eduardo Mendoza
• Physics Department
• Mathematics Department Center for
  NanoScience
• University of the Philippines
  Ludwig-Maximilians-University
• Diliman Munich, Germany
• eduardom_at_math.upd.edu.ph
  Eduardo.Mendoza_at_physik.uni-muenchen.de

2
Topics

• Reverse Engineering of systems
• Reverse Engineering Algorithm for Polynomial
  Models
• Application to the segment polarity GRN of
  Drosophila melanogaster
• Concluding remarks

3
Reference

• Laubenbacher, R., Stiegler, B
• A Computational Algebra Approach to the Reverse
  Engineering of Gene Regulatory Networks (to
  appear in Journal of Theor. Biology)

4
1. Reverse Engineering of Systems

• Systems identification in Engineering goal is to
  construct a system with prescribed dynamical
  properties
• In Systems Biology, one is interested in
  identifying as closely as possible a unique
  biological system that has been observed
  experimentally
• In both cases sparsity of available measurements
  will leave the system underdetermined

5
Reverse Engineering of Networks

• Modeling framework for a network with n (known)
  nodes
• time-discrete
• finite set X of possible values for each node
• choose X to be a finite field k (with k ps, p
  prime)
• Given are
• set of state transitions (usually in form of
  time series)

6
Reverse Engineering (contd)

• The problem is to find a function f kn ? kn
  (finite dynamical system) such that

• Each time series is then called a trace of f
• f is typically not unique (unless all state
  transitions of the system are specified)
• ? Choice between a large set of solutions
  necessary

7
Polynomial models

• Write f (f1 ,f2 ,...,fn). Then each
  coordinate function fi can be expressed
  (uniquely) as an element of kX1 ,X2 ,...,Xn,
  i.e.
• fi Sa ai,a Xa and aj k
• i.e. Every finite dynamical system over k is
  simply a vector of polynomial functions with
  coefficients in k.

8
Criterion for model selection

• Choose each fi minimal in the sense that

• Note this criterion is different from the
  usual sparsest network criterion (e.g. Yeung et
  al, 2002 or the REVEAL algorithm by Liang et al
  ) a network such that each node takes inputs
  from as few variables as possible

9
Benefits of polynomial approach
10
2. Polynomial Reverse Engineering Algorithm

• It suffices to consider the case of one time
  series.

Step1
11
Step 1 (contd)
12
Step 2 Compute vanishing ideal
Gröbner basis !
13
Step 3 find reduction f of f0
14
Complexity of the algorithm
15
3. Application to Drosophila SPN

• Use the Albert-Othmer model to test if reverse
  algorithm works
• i.e. Given time series data, can the reverse
  algorithm uncover the A-O model?

16
Polynomial equations (1)
17
Equations with additional variables
18
Laubenbacher-Stiegler Model
19
Summary of test results
20
Example of predicted relationship
21
Data Discretization (1)
22
Data Discretization (2)
23
Gepasi Simulation (1)
24
Gepasi Simulation (2)
25
Perspectives for MS Theses

• Interesting to test the LS algorithm for other
  biological networks
• use DVD as tool
• investigate choice of p gt 2
• begin with existing Boolean or GLN networks
• best in conjunction with an experimentalist
• Open question ways to use results of coding
  theory?

26
Thanks for your attention !

• Questions?
