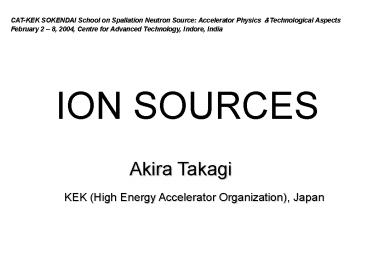

ION SOURCES

1
CAT-KEK SOKENDAI School on Spallation Neutron
Source Accelerator Physics Technological
Aspects February 2 8, 2004, Centre for Advanced
Technology, Indore, India
ION SOURCES
Akira Takagi
KEK (High Energy Accelerator Organization), Japan
2
ION SOURCES(1)

• Early History of the Particle Accelerator
• Production Methods of Negative Ion
• Types of Negative Hydrogen Ion Source
• KEK-PS H- Ion Source
• LaB6 Filament
• Beam Chopping
• Secondary Electron by Ion Impact
• Heavy/Metal Negative Ion

3
Early History

• The First artificially induced nuclear
  transmutation. (Rutherford,1919)
• 16N 4He ? 17O 1H
• a-particles (7 MeV, 2x107 m/s) from radium
• The results as a whole suggest that if
  a-particles or similuar projectiles- of still
  greater energy were available for experiment, we
  might expect to break down the nuclear structure
  of many of the lighter atoms.
• Rutherford, Phil. Mag. 37, 578 (1919)

4
Cockcroft-Waltons Voltage Multiplier

• The first nuclear disintegration by nuclear
  projectiles artificially produced in a man-made
  accelerator.(1932)
• 7Li 1H ? 4He 4He (17.3MeV)
• Cockcroft, Walton, Proc. Roy. Soc. A137,
  229(1932)

5
Charge Transfer Processes (H -gt H-)
6
Charge Exchange (D-)
7
Electron Affinities for atoms and molecules
8
H- Ions from Duoplasmatron
9
H- from Duoplasmatron
10
Potential distribution at the metal surface
11
PIG (Penning Ion Gauge) Type
12
Magnetron H- Production(Surface Production)
13
Magnetron Type
14
Multicusp Surface H- Ion Source
15
Multicusp Volume Production H- Ion Source
16
Multi-Cusp Negative Hydrogen Ion Source(Surface
Production Type)BLAKE-I
17
KEK-PS Ion Source just before Installation
18
(No Transcript)
19
Electron Suppression
20
LaB6 Tungsten

• LaB6 W2.67 eV
• 9 A/cm2 1900 K
• W W4.55 eV
• 1.6 A/cm2 2700 K

21
LaB6 Filament (15 mm dia.)
22
Surfase Analysis of LaB6 Filament
After 1000 hrs operation
23
LaB6 FilamentCathode Flange
24
After 3000 hrs Operation
25
LaB6 Filament (20 mm dia.)
26
LaB6 FilamentCathode Flange(Volume Source)
27
Empty Cs Ampoules Cs-Glass Reactants
28
750 keV Pre-Injector for 12 GeV PS
29
Ratio of Negative Hydrogen Ions
30
Operating ParametersMulticusp Surface production
Negative Hydrogen Ion SourceBLAKE-I

• ARC Current 83 A
• ARC Voltage 109 V
• ARC Pulse Width 180 msec
• Converter Voltage 650 V
• Gas Flow Rate 7.7 cc/min
• Filament Current Voltage
• FIL-1 72A x 8.0 V(1400 C)
• FIL-2 73A x 8.1V (1390 C)
• Cockroft-Walton Generator Voltage 749.5 kV
• Beam Current 39.1 mA

31
Beam Pulse Ion Source Extraction Linac
Entrance
U Voltage drop of the terminal voltageM
Ion source output (H-)L Linac Input (H-)
32
Production of Direct-Chopped H- Ion Beam
33
Fast chopped H- beam (2 MHz)by the direct
modulation of converter voltage
34
Radio Frequency Discharge
35
Radio Frequency Skin Depth (Xe)
36
Secondary Electron Emission

• In the case of electron impact
• The energy of the primary electron must be
  higher than the energy determined by the work
  function of the metal surface.
• In the case of positive ion impact,
• The secondary electron can be induced only if
  the sum of the potential energy E and the kinetic
  energy Ei is higher than twice the value of the
  work function f.
• E Ei gt 2f

37
Secondary Electron Emission by Ion Impact
38
Faraday Cup Signals by H-//o Beam(Without
Secondary Suppression)
39
Secondary electron Coefficients by H-//o Beam
40
(No Transcript)
41
No Conclusion

• Tomorrows my lecture
• Volume Production Negative Hydrogen Source
• Early results in KEK
• Recent results for J-PARC
• H- diagnostics (with laser)
