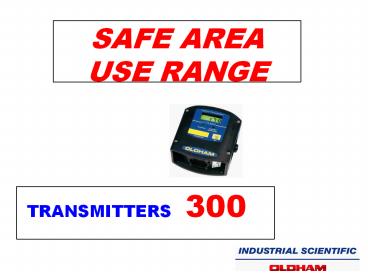

• TRANSMITTERS 300

2
SAFE AREA USE RANGETRANSMITTERS 300

• CTX/OX 300
• CSC 300
• CTX 300  parking

3
CTX 300 MAJOR CHARACTERISTICS

• Housing resistant to aggressive environments
• Protected against splashing
• Precalibrated interchangeable bloc/cell
• 2 or 3 active wires (signal 4/20 mA)
• IP 66

4
CTX 300 TOXIC GAS

• Detectionmain toxic gas
• electrochemical Cells
• Plug-in precalibrated cell
• Optionswith or without display and LED

5
COX 300 OXYGENE

• Oxygene detection,
• Electrochemical cells
• Plug-in precalibrated cell
• Options idem TOX

6
CSC 300 semi-conductor

• Gas detectedcombustibles,solvants and main
  fréons
• semi-conductor cell(different types)
• Plug-in precalibrated cell
• 3 activ wires

7
CTX 300 CO PARKING

• CO Detection in car-park
• electrochemical CO Cell
• Plug-in cell
• Fitted with 2 cable glands (maximum 5
  transmitters in loop).

8
INDUSTRIAL TRANSMITTERS

• OLCT 10
• OLCT 20
• OLCT 50
• OLCT 60

9
ATEX and low cost OLCT10

• ABS housing .. idem OLC10
• Approved ATEX 3G
• Synergy with MX15

10
ATEX and low cost OLCT10

• Transmitters for flammable or toxic gases
• 2 or 3 active wires(signal 4/20 mA), according
  to the type of cell (type of gas)
• Possibility of network ( 5 transmitters maximum)
  for toxic gas detection NO/NO2/CO.

11
OLCT10 /control unit
12
OLCT10 explo version  over-scale

• -          the transmitter manages a function
   non ambiguity indication   if the
  concentration of gaz is too high (gt100 LEL the
  signal will be bloqued on 23,2 mA,
• It can be acknowledged either manually (power or
  maintenance switch) or automatically (solder
  spots PPS3).

13
OLCT10 toxic version/control unit
Example with once transmitter OLCT 10 for toxic
gases (128 ohms in loop)
14
OLCT10 TOX /control unit

• Special applicationthe same gas in a same zone
• possibility of network up to 5 OLCT10 in parallel

CO
CO
15
OLCT10 TOX /control unit

• Example of 2 networks of toxic OLCT10 (5
  transmitters maximum per loop 2 different toxic
  gases in the same zone or the same gas in two
  closed zones
• Networks linked to a dual channel control unit

16
TRANSMITTEROLCT 20
17
Plug-in precalibrated cell
THE COMMON PART
18
Plug-in precalibrated cells

• Flameproof for gas LEL, CO, H2S, NO, NO2 , SO2,
  H2,
• NH3 , ETO, O2
• IS for gas
• CO, H2S, NO, NO2 , SO2, H2,
• NH3 (tox), HCl, HCN, Cl2, O3, COCl2, ASH3,
• ClO2, ETO, SiH4, O2, HF, OLCT60 ,

19
OLCT 20


Fixation Threading M25 ou ¾ NPT(local casing)
40cm
Remote detector fitted with a cable-gland
20
Transmitter OLCT 20 structure
IS or flame proofdifferent bodies
Interface pcb(included). -output 4 / 20 mA 3
ou 2 wires
Interface/adaptator pcbaccording to the
different types of cells. -Voltage output
21
TRANSMITTER OLCT 20 (D) characteristics in short

• Approval  d  or  i
• Transmitter LEL ( flam. ) ...
• Transmitter TOX. Flame proof
• Transmitter TOX. IS
• 4..20 mA, 2 ou 3 wires
• Fixation bracket if remote
• Remote within a restricted area or bad
  accessibility.

22
Cell-block precalibration system (suitcase)
0
FLOWMETER
FLAT CABLE
S
12VDC CONNECTOR
CALIBRATION GAS
DISPLAY
CHARGER
23
TRANSMITTER OLCT 50
casing approved d
Bloc of cell OLCT20
24
TRANSMITTER OLCT 50 A

• LOW COST VERSION
• CASING APPROVED  d
• bloc of cell  OLCT20 ,  d  version only
• 4-20mA electronics included in casing

25
Transmitter OLCT 50 D
D (remote)
OLCT 20 D
26
OLCT 50 in short

• Flame-proof casing/ epoxy paint
• 2 or 3 active wires
• 4/20 mA signal
• LEL and toxic gases
• Precalibrated interchangeable bloc/cell
• Approval d or i
• IP 66

27
TRANSMITTER OLCT 60
28
TRANSMITTER OLCT 60
Approval housing d
LCD 4 digits
Transmitter included
If  IS  versionzener barrier will be included.
29
TRANSMITTER OLCT 60 D
D remote
remote sensor version
(OLCT20D)
30
TRANSMITTER OLCT 60

• Flame-proof casing/ epoxy paint
• Specific toxic gases  IS  version
• Precalibrated interchangeable sensor-block
• 4..20 mA , 3 wires obligatory
• Approvals  d  or  i
• Maintenance mode by magnetic switch
• Option (D) remote.
