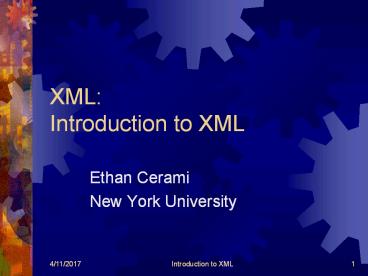

XML: Introduction to XML

1
XMLIntroduction to XML

• Ethan Cerami
• New York University

2
Road Map

• What is XML?
• A Brief Overview
• Origins of XML
• Creating XML Documents
• Basic Rules
• Example XML Documents
• Case Studies

3
Brief Overview of XMLXML v. HTML
4
What is XML?

• XML eXtensible Markup Language
• "XML, to a certain extent, is HTML done right."
  - Simon St. Laurent
• XML is HTML on steroids.
• XML
• Extensible can be extended to lots of different
  applications.
• Markup language language used to mark up data.
• Meta Language Language used to create other
  languages.

5
XML v.HTML

• The best way to first understand XML is to
  contrast it with HTML.
• XML is Extensible
• HTML restricted set of tags, e.g. ltTABLEgt,
  ltH1gt, ltBgt, etc.
• XML you can create your own tags
• Example Put a library catalog on the web.
• HTML You are stuck with regular HTML tags, e.g.
  H1, H3, etc.
• XML You can create your own set of tags
  TITLE, AUTHOR, DATE, PUBLISHER, etc.

6
Book Catalog in HTML
HTML conveys the look and feel of your
page. As a human, it is easy to pick out the
publisher. But, how would a computer pick out
the publisher? Answer XML

• ltHTMLgt
• ltBODYgt
• ltH1gtHarry Potterlt/H1gt
• ltH2gtJ. K. Rowlinglt/H2gt
• ltH3gt1999lt/H3gt
• ltH3gtScholasticlt/H3gt
• lt/BODYgt
• lt/HTMLgt

7
Book Catalog in XML

• ltBOOKgt
• ltTITLEgtHarry Potterlt/TITLEgt
• ltAUTHORgtJ. K. Rowlinglt/AUTHORgt
• ltDATEgt1999lt/DATEgtltPUBLISHERgtScholasticlt/PUBLISHE
  Rgt
• lt/BOOKgt

Look at the new tags! A Human and a computer can
now easily extract the publisher data.
8
XML v. HTML

• General Structure
• Both have Start tags and end tags.
• Tag Sets
• HTML has set tags
• XML lets you create your own tags.
• General Purposes
• HTML focuses on "look and feel
• XML focuses on the structure of the data.
• XML is not meant to be a replacement for HTML.
  In fact, they are usually used together.

9
Origins of XML
10
Origins of XML

• XML is based on SGML Standard Generalized
  Markup Language
• SGML
• Developed in the 1970s
• Used by big organizations IRS, IBM, Department
  of Defense
• Focuses on content structure, not look and feel
• Good for creating catalogs, manuals.
• Very complex

11
Origins of XML

• XML SGML-Lite 20 of SGML's complexity, 80
  of its capacity.
• HTML and XML are both based on SGML.

SGML
HTML
XML
12
XML and the W3C

• XML is an official standard of the World Wide Web
  Consortium (W3C)
• The Official Version is 1.0
• Official information is available at
• http//www.w3.org/XML/
• The Official spec is available at
• http//www.w3.org/TR/1998/REC-xml-19980210
• The Official XML FAQ
• http//www.ucc.ie/xml/
• W3C sponsors many projects which seek to enhance
  and improve on XML.

13
Creating XML DocumentsBasic Rules
14
Basic Definitions

• Tag a piece of markup
• Example ltPgt, ltH1gt, ltTABLEgt, etc.
• Element a start and an end tag
• Example ltH1gtHellolt/H1gt
• HTML Code
• ltPgtThis is a ltBgtsamplelt/Bgt paragraph.
• This code contains
• 3 tags, ltPgt, ltBgt, and lt/Bgt
• However, it only contains one element ltBgtlt/Bgt

15
Rule 1 Well-Formedness

• XML is much more strict than HTML.
• XML requires that documents be well-formed
• every start tag must have an end tag
• all tags must be properly nested.
• XML Code
• ltPgtThis is a ltBgtsamplelt/Bgt paragraph.lt/Pgt

Note the end lt/Pgt
16
Rule 1 Well-Formedness

• Another HTML Example
• ltbgtltigtThis text is bold and italiclt/bgtlt/igt
• This will render in a browser, but contains a
  nesting error.
• XML Code (with proper nesting)
• ltbgtltigtThis text is bold and italiclt/igtlt/bgt

17
Rule 2 XML is Case Sensitive

• XML is Case Sensitive.
• HTML is not.
• The following is valid in HTML
• ltH1gtHello Worldlt/h1gt
• This will not work in XML. Would result in a
  well-formedness error
• H1 does not have a matching end H1 tag.

18
Rule 3 Attributes must be quoted.

• In HTML you can get away with doing the
  following
• ltFONT FACEARIAL SIZE2gt
• In XML, you must put quotes around all your
  attributes
• ltBOOK ID894329gtHarry Potterlt/BOOKgt

19
Examples
20
Examples

• To get a feel for XML, lets take a look at
  several examples
• An XML Memo
• CD Catalog
• Plant Catalog
• Restaurant Menu

21
Example 1 A Memo

• lt?xml version"1.0" encoding"ISO8859-1" ?gt
• ltnotegt
• lttogtClasslt/togt
• ltfromgtEthanlt/fromgt
• ltheadinggtIntroductionlt/headinggt
• ltbodygtThis is an XML document!lt/bodygt
• lt/notegt

This XML Note could be part of a message board
application.
22
Example 2 CD Collection

• lt?xml version"1.0" encoding"ISO8859-1" ?gt
• ltCATALOGgt
• ltCDgt
• ltTITLEgtEmpire Burlesquelt/TITLEgt
• ltARTISTgtBob Dylanlt/ARTISTgt
• ltCOUNTRYgtUSAlt/COUNTRYgt
• ltCOMPANYgtColumbialt/COMPANYgt
• ltPRICEgt10.90lt/PRICEgt
• ltYEARgt1985lt/YEARgt
• lt/CDgt

A Disclaimer I did not pick these CDs! I just
got the example off the web -)
Continued...
23
ltCDgt ltTITLEgtHide your heartlt/TITLEgt
ltARTISTgtBonnie Tylorlt/ARTISTgt
ltCOUNTRYgtUKlt/COUNTRYgt ltCOMPANYgtCBS
Recordslt/COMPANYgt ltPRICEgt9.90lt/PRICEgt
ltYEARgt1988lt/YEARgt lt/CDgt ltCDgt
ltTITLEgtUnchain my heartlt/TITLEgt ltARTISTgtJoe
Cockerlt/ARTISTgt ltCOUNTRYgtUSAlt/COUNTRYgt
ltCOMPANYgtEMIlt/COMPANYgt ltPRICEgt8.20lt/PRICEgt
ltYEARgt1987lt/YEARgt lt/CDgt lt/CATALOGgt
Note that indentation helps you follow the flow
of the document.
24
Example 3 A Plant Catalog

• lt?xml version"1.0" encoding"ISO8859-1" ?gt
• ltCATALOGgt
• ltPLANTgt
• ltCOMMONgtBloodrootlt/COMMONgt
• ltBOTANICALgtSanguinaria canadensislt/BOTANICALgt
• ltZONEgt4lt/ZONEgt
• ltLIGHTgtMostly Shadylt/LIGHTgt
• ltPRICEgt2.44lt/PRICEgt
• ltAVAILABILITYgt031599lt/AVAILABILITYgt
• lt/PLANTgt

Continued...
25
ltPLANTgt ltCOMMONgtColumbinelt/COMMONgt
ltBOTANICALgtAquilegia canadensislt/BOTANICALgt
ltZONEgt3lt/ZONEgt ltLIGHTgtMostly Shadylt/LIGHTgt
ltPRICEgt9.37lt/PRICEgt ltAVAILABILITYgt030699lt/AV
AILABILITYgt lt/PLANTgt ltPLANTgt
ltCOMMONgtMarsh Marigoldlt/COMMONgt
ltBOTANICALgtCaltha palustrislt/BOTANICALgt
ltZONEgt4lt/ZONEgt ltLIGHTgtMostly Sunnylt/LIGHTgt
ltPRICEgt6.81lt/PRICEgt ltAVAILABILITYgt051799lt/AV
AILABILITYgt lt/PLANTgt lt/CATALOGgt
26
Example 4 Restaurant Menu

• lt?xml version"1.0" encoding"ISO8859-1" ?gt
• ltbreakfast-menugt
• ltfoodgt
• ltnamegtBelgian Waffleslt/namegt
• ltpricegt5.95lt/pricegt
• ltdescriptiongttwo of our famous Belgian
  Waffles with plenty of real maple
  syruplt/descriptiongt
• ltcaloriesgt650lt/caloriesgt
• lt/foodgt

Continued...
27
ltfoodgt ltnamegtStrawberry Belgian
Waffleslt/namegt ltpricegt7.95lt/pricegt
ltdescriptiongtlight Belgian waffles covered
with strawberrys and whipped cream
lt/descriptiongt ltcaloriesgt900lt/caloriesgt
lt/foodgt ltfoodgt ltnamegtBerry-Berry Belgian
Waffleslt/namegt ltpricegt8.95lt/pricegt
ltdescriptiongtlight Belgian waffles covered
with an assortment of fresh berries and
whipped cream lt/descriptiongt
ltcaloriesgt900lt/caloriesgt lt/foodgt
Continued...
28
ltfoodgt ltnamegtFrench Toastlt/namegt
ltpricegt4.50lt/pricegt ltdescriptiongtthick
slices made from our homemade sourdough bread
lt/descriptiongt ltcaloriesgt600lt/caloriesgt
lt/foodgt ltfoodgt ltnamegtHomestyle
Breakfastlt/namegt ltpricegt6.95lt/pricegt
ltdescriptiongttwo eggs, bacon or sausage, toast,
and our ever-popular hash brownslt/descriptiongt
ltcaloriesgt950lt/caloriesgt lt/foodgt lt/breakfast-m
enugt
29
Case Studies
30
Applications of XML

• Widely used today in major applications
• Search Engines
• News Distribution
• E-Commerce
• Real Estate
• Genetics
• Defense Department Applications

31
Case Study 1Search the Web
32
Case Study 1 Web Search

• Scenario
• You want to offer a web search functionality for
  your site.
• You want control over the look and feel of the
  search results.
• You do not want to support your own database of
  millions of web sites.

33
Case Study 1 Web Search

• XML to the Rescue
• Several companies provide XML Access to their Web
  Search Databases.
• For example
• Open a network connection and send search
  criteria.
• Third Party returns results in XML.

34
How it Works

• How it works
• User initiates a search request.
• Servlet is invoked.
• Servlet opens a network connection to Third Party
  and passes user search criteria.
• Third Party searches is database, and returns an
  XML document.
• Servlet transforms XML into HTML and returns to
  user.

35
How it Works
Search Criteria
Search Criteria
Browser
Servlet
Third Party Web Database
XML
HTML
36
Case Study 2Price Comparison
37
Case Study 2 Price Comparison

• Scenario
• You want to create a site that compares prices of
  books.
• For example, a user enters a book title, and your
  page displays the price at bn.com, amazon.com,
  bestbuy.com, etc.
• User can choose the cheapest price.

38
How it might work

• How it works
• User sends book title
• Servlet makes three concurrent connections and
  queries the bookstores
• Amazon, bn.com, bestbuy.com
• Each Bookstore returns results in a standard XML.
• Servlet parses XML and creates a small price
  comparison table.

39
How it might work
Amazon
XML
Search Criteria
Browser
Servlet
BN.com
XML
HTML
BestBuy
XML
40
Case Study 3 Genomics
41
Case Study 3 Genomics

• Bioinformatic Sequence Markup Language (BSML)
• BSML provides a standard DTD for representing
  genes and the DNA sequences that make up that
  gene.
• This data can then be viewed via an XML Genome
  Browser (http//www.labbook.com)
• The next three slides show an excerpt of BSML for
  the gene that regulates insulin production.

42
lt?xml version"1.0"?gt lt!DOCTYPE Bsml SYSTEM
"BSML2_2.DTD"gt ltBsmlgt ltDefinitionsgt ltSequencesgt ltS
equence id"G186439" title"HUMINSR"
molecule"rna ic-acckey"M10051" length"4723"
representation"raw" topology"linear"
strand"ds" comment"Human insulin receptor
mRNA, complete cds."gt ltAttribute name"version"
content"M10051.1 GI186439"/gt ltAttribute
name"source" content"Human placenta, cDNA to
mRNA, clones lambda-IR1-15."/gt ltAttribute
name"organism" content"Homo sapiens"/gt
43
ltFeature-tablesgt ltFeature-tablegt
ltReference dbxref"85176928" title"1
(bases 1 to 4723)"gt ltRefAuthorsgt
Ebina,Y., Ellis,L., Jarnagin,K., Edery,M.,
Graf,L., Clauser,E., Ou,J.-H., Masiarz,F.,
Kan,Y.W., Goldfine,I.D., Roth,R.A. and
Rutter,W.J. lt/RefAuthorsgt ltRefTitlegt
The human insulin receptor cDNA the structural
basis for hormone-activated transmembrane
signalling lt/RefTitlegt
44
ltSeq-datagt ggggggctgcgcggccgggtcggtgcgcacacga Ga
aggacgcgcggcccccagcgctcttgggggccgcctcggagcat Acccc
cgcgggccagcgccgcgcgcctgatccgaggagaccccgcg Ctcccgca
gccatgggcaccgggggccggcggggggcggcggccgc Gccgctgctgg
tggcggtggccgcgctgctactgggcgccgcgggcc Cctgtaccccgga
gaggtgtgtcccggcatggatatccggaacaacctc Actaggttgcatg
agctggagaattgctctgtcatcgaaggacacttgcag atactcttgat
gttcaaaacgaggcccga
DNA Sequences!
