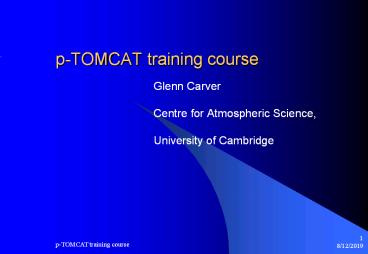

p-TOMCAT training course

• Glenn Carver
• Centre for Atmospheric Science,
• University of Cambridge

2
What you will hear about on this course

• p-TOMCAT
• How to run it
• How it works in parallel
• How to make code changes
• ASAD
• How it works
• How to make changes

3
p-TOMCAT basics

• In this section you will hear about
• What kind of model p-TOMCAT is

4
Basics History lesson

• The parallel p-TOMCAT model is derived from
  TOMCAT, the tropospheric offline chemical
  transport model (CTM)
• TOMCAT was developed over the recent years by a
  number of people at the Centre for Atmospheric
  Science at the University of Cambridge
• TOMCAT itself originally derived from SLIMCAT
  the stratospheric offline CTM, developed
  originally by Martyn Chipperfield (now at Leeds).

5
Basics What is a chemical transport model?

• Its a global three-dimensional model
• A CTM takes wind, temperature and humidity fields
  as input and transports tracers around the globe
• Wind and temperature input may be from
  meteorological analyses or from another model
• Global circulation models (e.g. Unified Model)
  are quite different these compute their own wind
  and temp. fields
• CTMs are very good for comparisons with
  observations
• They are not so good for coupled
  chemistry-climate research

6
Basics Why parallel TOMCAT?

• High Performance Computing assumes many
  processors
• Had no choice but to parallelize TOMCAT
• p-TOMCAT is able to use multiple processors to
• Reduce execution time for long integrations
• Run at higher resolutions horizontally and
  vertically
• We can also use the increase in compute power to
  increase the complexity of the model e.g.
  addition of more chemistry, better numerical
  schemes

7
Basics Whats in p-TOMCAT

• p-TOMCAT is made up of different modules
• Each module represents a physical process
• p-TOMCAT comprisesabout 40,000 linesof fortran

Clouds
Transport
Chemistry
Aircraft
Lightning
Emissions
PBL
?
Strat
8
Basics More information

• p-TOMCAT website
  http//www.atm.ch.cam.ac.uk/tomcat/
• Includes
• Job scripts
• Documentation
• Test results
• Performance information

9
p-TOMCAT grid

• In this section youll learn more about
• The grid the model uses
• The parallelization of the model

10
p-TOMCAT resolutions

• Use Gaussian grids (from spectral models)
• Longitudes are regular latitudes are nearly so
• Typical resolutions are
• T21 64 lon x 32 lat (5.6 degrees)
• T42 128 lon x 64 lat (2.8 degrees)
• T106 320 lon x 160 lat (1.1 degrees)
• NLON (3M 1 or 2), NLAT NLON / 2
• TOMCAT is not a spectral model so you should not
  say you are running the model at T21, T42 etc.
  Use the grid resolution

11
How does it work in parallel?

• There are several paradigms for parallel
  computing
• p-TOMCAT uses domain decomposition
• Each cpu runs a copy of the model
• Each cpu works on a lat-lon portion of the globe
• But! More processors does not always imply more
  performance

12
Domain decomposition

• Each processor gets same size patch

LongitudeLON




nlonmx
nlatmx
LatitudeLAT
13
Domain decomposition

• Total number of grid points LON x LAT
  x NIV (mod_paradi.f90)
• Each processor has NLONMX x NLATMX x
  NIV
• Where NLONMX LON / NPROCI
• And NLATMX LAT / NPROCK
• NPROCI is no. of cpus along longitudes, NPROCK
  along latitudes (mod_slcons.f90)

14
Domain decomposition

• Problem comes when code requires values from
  other processors gridpoints
• E.g. U(i1) - U(i-1)
• A processor must communicate with its neighbour

CPU 2
CPU 1
15
Halos

• We deal with this by creating halos rather than
  communicate whenever it would be needed in the
  code
• A halo is a copy of data, it is not computed by
  the processor

Halo of cpu2
Halo of cpu 1

CPU 1
CPU 2
16
Halos

• Halos are exchanged when interior points are
  needed by code
• Different halos are required by different
  algorithms
• Advection code needs N,S,E,W special treatment
  at the poles
• Flight track code need N,NE,E,SE,S,SW,S,NW
• Tropopause calc needs N,S,E,W
• However, halos introduce communication costs and
  should be avoided or minimised as much as possible

17
Halo array example

• An array with a halo might be declared
  ozone(0nlonmx1,0nlatmx1)
• But! It is always the case that the processor
  computes ozone(1nlonmx,1nlatmx)

• The halos are copies and only for reading
  cpu1ozone(nlonmx1,) cpu2ozone(1,)

Halo of cpu2
Halo of cpu 1

CPU 1
CPU 2
18
Advection halo arrays

• Advection scheme halos are more complicated
• Arrays that need halos are declared as e.g
  SM(nimnnimx,nkmnnkmx,niv)where nimn
  -nhalmx 1 nimx nlonmx nhalmx nkmn
  0 nkmx nlatmx 1
• where nhalmx is greater than 1 and depends on the
  resolution
• Next well see why advection needs nhalmx gt 1

19
Model timestep

• Numerical stability normally requires
  ?t lt ?x / Umax
• This presents a problem approaching the poles.
  As ?x decreases, so must ?t
• This is the well known pole problem

20
Polar latitudes

• To ensure stability for the x-direction
  advection, the model groups grid cells together
  near the poles.

N




S
Whats the deliberate mistake?
21
Polar latitudes

• Grouping depends on timestep, Umax and
  resolution
• Grouping implies model loses zonal resolution
  approaching the poles (kind of)
• Amount of cells grouped increases with resolution
• Careful if timestep is not reduced as resolution
  is increased, model will start grouping at mid or
  low-latitudes. Check job log!

22
Polar latitude halos

• Cell grouping implies bigger halos at these lats
• E.g. if 8 gridpts are grouped into 1, it means
  well need 8 gridpts either side of our processor
• This will increase cost of communication at poles
• Hence the need for nhalmx. This variable will
  change with different resolutions and timesteps
  but we want it as small as possible and the
  timestep as big as possible!
• Optimum values of nhalmx, nproci nprock have
  been set in tom.build. Check calc_slcons program
  output on website for other configuration
  possibilities based on choice of ?t

23
p-TOMCAT Parallel computing

• In this section youll learn more about
• MPI
• How the model uses MPI
• When you should use it if adding code
• Parallel performance

24
Message passing

• p-TOMCAT uses MPI Message Passing Interface
• MPI is an international standard and available on
  all HPC systems
• MPI assumes processors are completely separate
  apart from a communications link
• In practice, MPI will use a shared memory to
  speed up comms but this is transparent to the user

CPUs
Memory
25
MPI

• MPI requires the addition of subroutines calls to
  do the communication
• You will need to use MPI if
• Your scheme needs neighbouring processor
  gridpoints (e.g. gradients, local searchs of
  gridpoint values)
• Zonal means
• Global sums
• Reading a file and broadcasting to all processors
• You do not need it for any operation in the
  vertical. Each processor has all vertical levels
  for each gridpoint it deals with

26
Parallel performance

• Rarely get perfect parallel performance due to
  communication costs, I/O and differences in time
  through code (load imbalances)
• Speedup S T1 / Tp
• Where T1 is time on a single processor, Tp is
  time on p processors
• Efficiency E S / P
• e.g. efficiency of 50 means on average we only
  used half the processors during the run. Ideally
  we want gt 60-70.

27
TOMCAT performance

• Efficiency T21

2 cpus 95
4 80
8 65
16 55
32 40
28
Load balancing

• Another reason for efficiency to reduce as
  processors increase is because of load balancing
• The time through the code depends on various
  factors
• Day / night affects time through photolysis and
  chemistry code
• Polar night / day affects time through photolysis
  chemistry code
• Polar x-advection costs less because cells are
  grouped
• Presence of convection alters cost of convection
  code
• The net effect is that some processors might be
  idle whilst waiting for others to catch up
• This is a difficult problem to solve. It is a
  particular problem at high resolution and may
  well need restructuring the grid for the model to
  work efficiently at T106 and above on 128
  processors

29
Reproducibility in parallel

• Getting reproducible results is a big issue for
  parallel models because A B / B A on
  computers
• Computing a zonal mean requires each processor to
  compute a mean for nlonmx pts and then sum those
  means across all processors
• Splitting the domain differently e.g. 4x4 or 2x8
  will therefore change the result
• p-TOMCAT results were sensitive to this. V1.0
  uses special subroutines for zonal global means
  to avoid this which you must use

30
Reproducibility across computers

• p-TOMCAT results are also sensitive to the
  compiler used
• Optimization levels O2 and O3 on green give the
  same results
• You will get differences between green newton

Relative difference in zonal meanozone between
runs on green .v. newton
31
How to use p-TOMCAT

• In this section, youll find out
• How to compile and run the model
• How to add in new code
• How to control what the model does

32
Getting started at Manchester

• Suggest you create an experiment directory in
  /santmp/user (but remember files on /santmp are
  deleted if not used gt 14days)
• /hold/year/user is the tape store where results
  can be saved
• Use tar and gzip to package up files into one
  file for more efficient storage e.g. tar cvf
  expt.tar myexptdir gzip expt.tar and then copy
  it to /hold

33
Compiling p-TOMCAT

• We compile (build) and run p-TOMCAT in separate
  steps
• Download the tom.build script from the p-TOMCAT
  website to your experiment directory e.g.
  /santmp/emgdc/run1
• First make it executable chmod ux tom.build
• Then ./tom.build on wren in the expt
  directory.It will create a directory src with
  all the code in and leave an exectuable tomcat
  in the expt directory

34
Makefiles

• tom.build will put a Makefile in the src
  directory for you
• A Makefile is a way of telling the compiler
  what options to use and what order the files
  should be compiled
• If you need to change the Makefile, please ask if
  you are not sure how they work. You only change
  it if
• Altering the compiler options
• Adding new files of code to the model
• We use a parallel compilation, compiling several
  files at once
• On Green use the command pmake tomcat
• On newton use the command make -j 4 tomcat

35
tom.build changes you might make

• Set the model resolution is all you might need to
  do if you just want to run a vanilla flavour of
  the model
• Other changes you might want to make
• Model version number
• Changes to domain decomposition
• Changes to number of tracers, species in
  chemistry
• tom.build creates a small file called config.
  Do NOT edit it! Its used to pass model config to
  tom.run script

RES21 NIV31
These parameters are at the top of the job
36
Editing code nupdate

• To make changes to the model code we use
  nupdate a preprocessor. It takes input of the
  form
• id run1
• d mod_paradi.11,12
• integer, parameter lon 320, lat
  160
• i mod_paradi.14
• ! This is just a comment
• b mod_paradi.14
• ! This comment comes before the other
  comment
• To see the line numbers, check the tomcat listing
  in /ohome/emtomcat/public/lib/p-tomcat.
  1.0.list
• tom.build runs nupdate twice, for tomcat ASAD

37
Editing code adding your own changes to
subroutines

• Put all your nupdate changes in a file(s), rather
  than include the changes in tom.build directly.
  Much easier to manage this way.
• Edit tom.build to readcat gt tomcat.mods
  ltltEOFread newcode.upread newcode2.up
• To alter the ASAD code, similarly add read after
  the linecat gt asad.mods ltlt EOF
• Remember to use f90, free source format

38
Adding new code

• If you have hundreds of lines of new code,
  nupdate can be cumbersome and error prone
  (although if you want to..).
• I would suggest you
• Run tom.build once to create the src directory
  Makefile
• Edit the code directly (copy the original first!)
• Edit the Makefile if you need to
• Run pmake (or make -j 4 on newton) by hand
• Disadvantages is that its harder to move to new
  versions and code management requires more effort

39
Adding new files of code

• If you need to add new .f90 files
• Consider using f90 modules. They have a number of
  advantages.
• You must edit the Makefile
• Add your .f90 file to the list of files to be
  compiled
• Add the dependency (if any) to the makefile.
• New code or bugfixes should be sent to Glenn for
  inclusion
• It will be expected that the code will be
  properly tested
• Test results should accompany code
• For more details email or see Glenn or Nick

40
Compiling the code

• Normally you would not change the compiler
  options in the Makefile apart from when testing.
  Uncomment the second set of optionsF90FLAGS_IRI
  X64-64 -r8 -extend_source -O2 \
  -DEBUGtrap_uninitializedONverbose_runtimeONdi
  v_check3 \ -LISTall_optionsON
  -I/opt/mpt/mpt/usr/include use these while
  developingF90FLAGS_IRIX64 -g -64 -r8
  -extend_source \ -I/opt/mpt/mpt/usr/include
  \ -DEBUGtrap_uninitializedONverbose_runtime
  ONdiv_check3 -check_bounds
• -check_bounds should be used for brand-new code
  but will slow the model down a lot. Just use it
  once.
• After editing the Makefile, do a make clean
  followed by a pmake tomcat to recompile the model

41
Running p-TOMCAT

• Download the tom.run script from the website to
  your experiment directory
• You MUST change the line EXPTltyour
  experiment directorygt
• To run either submit as a batch job by bsub lt
  tom.run (not bsub tom.run!!)or ./tom.runto
  run interactively on wren (max. of 4 processors
  only)

42
Files you need

• To run p-TOMCAT you will need the following files
  in your experiment directory
• chch.d - this lists the
  chemical species
• ratb.d, ratt.d, ratj.d - the reactions used
• depvel.d - deposition
  velocities
• henry.d - henrys law
  coefficients (wet dep.)
• An binary file with initial fields for models
  tracers
• These are available off the website or on wren in
  the emtomcat account
• The model reads other files which are held in the
  emtomcat account. You can supply your own if you
  wish by changing the namelist variables which set
  the directory the model looks in for these files.

These files will be moved for v1.1
43
Reaction rate data

• The reaction coefficients used in the rat?.d
  files are collated from various sources
• IUPAC kinetic data (www.iupac-kinetic.ch.cam.ac.uk
  )
• JPL kinetic data (jpldataeval.jpl.nasa.gov)
• Master Chemical Mechanism (MCM)
  (www.chem.leeds.ac.uk/Atmospheric/MCM/mcmproj.html
  )
• Note! Some reaction rates do not have simple
  Arrhenius forms and are dealt with specifically
  in the ASAD code (see bimol.f trimol.f)
• p-TOMCAT uses rates current at 2000
• TOMCAT runs on the Fujitsu used different rates
  so no long runs have yet been done using these
• The ratefiles will be updated periodically. Due
  for an update soon

44
p-TOMCAT initial files

• New initial files can be created from past runs
• Very early runs had low methane so use more
  recent runs by Fiona (ACTO), Nick (POET) or
  Richard (MOZAIC)
• Note! Reaction rates have been altered since
  these runs so allow time to spin the model up
• Programs exist to manipulate initial files
• Change the resolution
• Change the date
• Add more tracers
• Default initial file available for 1/3/1997

45
Analysis files

• p-TOMCAT currently uses modified ECMWF
  operational analyses which are stored on wren in
  /v/lrkd/ECMWF/T42
• Operational analyses changed levels
• 31 levels up to March 1999
• Then 50 levels up to Oct 1999
• 60 levels thereafter
• We plan on using ERA-40 analyses to avoid
  inconsistencies in the operational analyses at
  some point
• Though convection is known to change dramatically
• It is possible to run the model with higher
  resolution analyses

46
Anatomy of the tom.run script

• Check the batch queue options at the topBSUB
  -J p-tomcat job nameBSUB -o tomcat_log.J
  job log fileBSUB -m green machine to
  run on 'green', 'fermat, 'newt64iBSUB -N
  mail me when doneBSUB -n 16
  no. of processorsBSUB -W 200
  run time (wall clock time hrsmins)
• You can override any of these on the command
  line bsub -m fermat lt tom.run
• No. of processors must match nprocinprock in
  config file
• And dont forget to change EXPT
  /santmp/emgdc/run1
• Remember we are charged on the no. of cpus used!

47
Namelist variables

• The model uses namelists (f90) to control its
  options, unlike old TOMCAT where you had to
  modify the code
• There are three namelists used by the model
  switches / chem_switches /
  pbl_switches /
• Normally you will only need to change switches
  to control what the model does

48
How namelists work

• A variable in a namelist has a default value in
  the model and therefore need not be changed at
  all
• Namelist variables can have comments after
  switches nsteps 480, ! Number of
  timesteps
• The model will check user settings are sensible
• For a full description of the switches, see
  mod_switch.f90.
• For further information about namelists, see a
  f90 book!

49
Main model switches

• The main model switches you might want to change
  areswitches initial_file
  EXPT/init_tRES_97030100 dt0 1800.0,
  ! Dynamical timestep (secs) nsteps 4,
  ! Number of steps in the run nso1 12,
  ! Frequency of model output in steps
  nfrf 0, ! Frequency at which restart
  files are created ifrqnc -14, ! Frequency
  at which new netcdf files are created
• Then there are switches to turn off components
  such as the emissions, chemistry etc. See
  mod_switches.f90 for more details
• Note that the frequency at which the netCDF files
  are created depends on the resolution and the
  frequency at which you output
• At T21 with 6hrly output, create a new netcdf
  file every 14 days
• At T42 with 6hrly output, create a new one every
  day
• Dont create netCDFs bigger than 2Gbytes

50
Types of model output

• Restart file
• This is a full precision (real8) dump of the
  models main variables.
• You can use this file to restart the run as if
  the run had not been stopped
• You can also use a restart file to create an
  initial file for the model
• Vertical diffusion scheme (PBL scheme) physical
  restart file
• Netcdf output
• Reduced precision (real4) for plotting /
  diagnostics (Ferret, GrADS, IDL)
• Usually contains all the models main variables
  other diagnostics fields
• You can add additional fields to this file by
  altering the model code
• Binary output (PDG)
• Full precision, fortran binary output file with
  the main model variables
• Old versions of TOMCAT used this as the main
  output file, but netcdf files are smaller and
  easier to use
• Still useful for doing exact comparisons between
  different model versions or diagnostics that need
  high precision
• Can also be used to create initial files for new
  runs

51
How to restart a model run

• Batch job time limits mean long runs will need to
  be split
• A restart file contains the same as an initial
  file but also includes the first and second order
  moments for the advection scheme to be able to do
  an exact restart
• To do a restart
• Rename the restart file e.g. p-TOMCAT.RESTART to
  init_restart otherwise the model will overwrite
  it
• Set the switch initial_file init_restart
• Set the switch nrstart 1 in the namelist

52
p-TOMCAT ASAD chemistry code

• In this section, youll learn more about
• ASAD
• How it works
• How to change things
• A userguide for ASAD is available for more
  details on the ACMSU website (www.acmsu.nerc.ac.uk
  )

53
ASAD Introduction

• ASAD is a black-box, a piece of software
  designed to solve a chemical scheme without
  writing any code (or very little)
• Chemistry is specified using input text files.
  Changes can be made very quickly
• Though be aware reactions with non-standard rate
  formula may need to be coded explicitly in ASAD
• ASAD is used in box models, p-TOMCAT and the UM
  so chemical schemes can be moved between models
  by copying the text files
• ASAD was developed some years ago by Glenn, Paul
  Brown and Oliver Wild and is being used
  world-wide.

54
ASAD Chemistry

• Two subroutine calls are needed to use ASAD in
  p-TOMCAT asad_init, asad_step
• ASAD uses text files to describe the chemical
  species and reactions chch.d - Chosen
  Chemistry ratb.d - bimolecular
  reactions ratt.d - uni- termolecular
  reactions ratj.d - photolysis
  reactions rath.d - heterogeneous
  reactions (not used)
• ASAD code will call non-ASAD routines to compute
  photolysis rates, wet dry deposition and
  emission rates (photo.f, wetnew.f and drydep.f)

55
ASAD Changing the reactions

• Change the rate coeffs in the appropriate
  ratefile 1 HO2 NO OH NO2
  3.10E-12 0.00 -270.0
• Reactions can be disabled by commenting out with
  a or set the rates to zero
• If you change the number of reactions you must
  change the appropriate parameter in the ASAD code
  by altering tom.buildcat gt asad.mods ltlt
  EOFid rund comparamc.84,85 parameter (
  jpctr 32, jpspec 52, jpnl 2NIV )
  parameter ( jpbk 89, jptk 15, jppj 27, jphk
  0 )

Files are ratb.d ratt.d
ratj.d rath.d
56
ASAD the chch.d file

• 1 'O(3P)' 1 'FM' 'Ox' F F F 'Atomic
  oxygen (ground state)' 'pptv'
• 2 'O(1D)' 1 'FM' 'Ox' F F F 'Atomic
  Oxygen (excited state)' 'pptv'
• 3 'O3' 1 'FM' 'Ox' T F F 'Ozone'
  'ppbv'
• 4 'NO' 1 'FM' 'NOx' T F F 'Nitric
  Oxide' 'pptv'
• 5 'NO3' 1 'FM' 'NOx' T T F 'Nitrate
  Radical' 'pptv'
• 6 'NO2' 1 'FM' 'NOx' T F T 'Nitrogen
  Dioxide' 'ppbv'
• 7 'N2O5' 2 'TR' ' ' T T F 'Dinitrogene
  Pentoxide' 'ppbv'
• 8 'HO2NO2' 1 'TR' ' ' T T F 'Peroxynitric
  Acid' 'ppbv'
• 9 'HONO2' 1 'TR' ' ' T T F 'Nitric
  Acid', 'ppbv'
• 10 'OH' 1 'SS' ' ' F F F 'Hydroxyl
  Radical' 'pptv'
• 11 'HO2' 1 'SS' ' ' F T F 'Hydroperoxyl
  Radical' 'pptv'
• 12 'H2O2' 1 'TR' ' ' T T F 'Hydrogen
  Peroxide' 'ppbv'
• 13 'CH4' 1 'TR' ' ' F F T 'Methane'
  'ppbv'
• 14 'CO' 1 'TR' ' ' T F T 'Carbon
  Monoxide' 'ppbv'
• 15 'HCHO' 1 'TR' ' ' T T T
  'Formaldehyde' 'ppbv'
• 16 'MeOO' 1 'SS' ' ' F T F 'CH3OO'
  'ppbv'
• 17 'H2O' 1 'CF' ' ' F F F 'Water
  Vapour' 'ppbv'

ASAD just needs these
TOMCAT uses these
57
ASAD the chch.d file

• 1 'O(3P)' 1 'FM' 'Ox' F F F 'Atomic
  oxygen (ground state)' 'pptv'
• 2 'O(1D)' 1 'FM' 'Ox' F F F 'Atomic
  Oxygen (excited state)' 'pptv'
• 3 'O3' 1 'FM' 'Ox' T F F 'Ozone'
  'ppbv'
• 4 'NO' 1 'FM' 'NOx' T F F 'Nitric
  Oxide' 'pptv'
• 5 'NO3' 1 'FM' 'NOx' T T F 'Nitrate
  Radical' 'pptv'
• 6 'NO2' 1 'FM' 'NOx' T F T 'Nitrogen
  Dioxide' 'ppbv'
• 7 'N2O5' 2 'TR' ' ' T T F 'Dinitrogene
  Pentoxide' 'ppbv'
• 8 'HO2NO2' 1 'TR' ' ' T T F 'Peroxynitric
  Acid' 'ppbv'
• 9 'HONO2' 1 'TR' ' ' T T F 'Nitric
  Acid', 'ppbv'
• 10 'OH' 1 'SS' ' ' F F F 'Hydroxyl
  Radical' 'pptv'
• 11 'HO2' 1 'SS' ' ' F T F 'Hydroperoxyl
  Radical' 'pptv'
• 12 'H2O2' 1 'TR' ' ' T T F 'Hydrogen
  Peroxide' 'ppbv'
• 13 'CH4' 1 'TR' ' ' F F T 'Methane'
  'ppbv'
• 14 'CO' 1 'TR' ' ' T F T 'Carbon
  Monoxide' 'ppbv'
• 15 'HCHO' 1 'TR' ' ' T T T
  'Formaldehyde' 'ppbv'
• 16 'MeOO' 1 'SS' ' ' F T F 'CH3OO'
  'ppbv'
• 17 'H2O' 1 'CF' ' ' F F F 'Water
  Vapour' 'ppbv'

Short species name. Appears in netcdf file
Long species name. Appears in netcdf file
Units in which species is output to netcdf file
ASAD just needs these
TOMCAT uses these
58
ASAD the chch.d file
No. of odd atoms for a family species

• 1 'O(3P)' 1 'FM' 'Ox' F F F 'Atomic
  oxygen (ground state)' 'pptv'
• 2 'O(1D)' 1 'FM' 'Ox' F F F 'Atomic
  Oxygen (excited state)' 'pptv'
• 3 'O3' 1 'FM' 'Ox' T F F 'Ozone'
  'ppbv'
• 4 'NO' 1 'FM' 'NOx' T F F 'Nitric
  Oxide' 'pptv'
• 5 'NO3' 1 'FM' 'NOx' T T F 'Nitrate
  Radical' 'pptv'
• 6 'NO2' 1 'FM' 'NOx' T F T 'Nitrogen
  Dioxide' 'ppbv'
• 7 'N2O5' 2 'TR' ' ' T T F 'Dinitrogene
  Pentoxide' 'ppbv'
• 8 'HO2NO2' 1 'TR' ' ' T T F 'Peroxynitric
  Acid' 'ppbv'
• 9 'HONO2' 1 'TR' ' ' T T F 'Nitric
  Acid', 'ppbv'
• 10 'OH' 1 'SS' ' ' F F F 'Hydroxyl
  Radical' 'pptv'
• 11 'HO2' 1 'SS' ' ' F T F 'Hydroperoxyl
  Radical' 'pptv'
• 12 'H2O2' 1 'TR' ' ' T T F 'Hydrogen
  Peroxide' 'ppbv'
• 13 'CH4' 1 'TR' ' ' F F T 'Methane'
  'ppbv'
• 14 'CO' 1 'TR' ' ' T F T 'Carbon
  Monoxide' 'ppbv'
• 15 'HCHO' 1 'TR' ' ' T T T
  'Formaldehyde' 'ppbv'
• 16 'MeOO' 1 'SS' ' ' F T F 'CH3OO'
  'ppbv'
• 17 'H2O' 1 'CF' ' ' F F F 'Water
  Vapour' 'ppbv'

Name of family tracer
Emission, dry wet dep on/off switches
Type of species FM family member, TR tracer,
SS steady state, CF constant field, CT
constant value
ASAD just needs these
TOMCAT uses these
59
Changing the tracers or species

• If you change the number of advected tracers you
  will need to change NTRA in the tomcat parameters
  and JPCTR in the ASAD parameters in tom.build AND
  supply a new initial file
• The advected tracers are the families (e.g. Ox)
  and TR species listed in the chch.d file. ASAD
  also prints out the tracers in the job log file
• Other non-ASAD chemistry can be included but the
  model will still expect a chch.d file for the
  netcdf output

60
p-TOMCAT model code

• In these next slides we will look at
• Internal structure of the model
• How the parallel aspect affects the code
• How to make code changes

61
p-TOMCAT flowchart

• The main timestep loop is in main.f90
• Top level subroutines for advection, chemistry
  etc have outer loops over tracers and latitude
• Inner loops are over longitude
• Note dependency exists between some schemes e.g.
  dry deposition scheme needs diffusion coefficient
  from vertical diffusion (PBL) scheme

62
Guidelines for adding code

• All new code must use free format fortran 90
  source (.f90)
• Do NOT use common blocks, use fortran 90 modules
• Comment your code sensibly
• Use IMPLICIT NONE and declare all your variables
• Use INTENT() to indicate arguments
• Use f90 array operations wherever you can
• Avoid f90 pointers, they do not optimise well
• Large local arrays should have save attribute
  to stop them being allocated in memory everytime
  subroutine is called
• Do NOT use global arrays unless for I/O in which
  case allocate on process 0 only to avoid each
  process having a big array
• F90 derived types can be used to aid clarity

63
Code changes new arrays

• Arrays should be declared with (nlonmx,nlatmx)
  NOT (LON,LAT)
• However, loop limits should use mylon, mylat and
  NOT nlonmx, nlatmx. This is because in the future
  processors may get different numbers of
  gridpointse.g.
• real array(nlonmx,nlatmx,niv)
• do k 1, niv
• do j 1, mylat
• do i 1, mylon
• array(i,j) sm(i,j,k)
• end do
• end do
• end do
• Better still as
• real array(nlonmx,nlatmx,niv)
• array(1mylon,1mylat,)
  st(1mylon,1mylat,)
• note st in the model uses a halo so we must
  specify indicies

Note ordering of the loops here!
64
Aborting the model with endrun

• As the model is running in parallel it is
  important to stop the model cleanly if there is
  an error or some other reason to stop.
• This also makes sure the netCDF file is closed
  cleanly and the latest model output is not lost
• A subroutine endrun should be called to stop
  the model
• e.g. if ( j gt nlatmx ) call
  endrun(.false.)
• You will call it with .false. to indicate
  something went wrong. The only time its called
  with an argument of .true. is at the end of the
  program

65
p-TOMCAT Files for input

• The model will always check that a required input
  file exists and any new code is required to do
  the same.
• Use the checkexists() logical function to do
  this e.g.
• if ( .not. checkexists('/santmp/emgdc/input
  ,subname)) call endrun(.false.)
• The arguments to checkexists are
• 1st filename to check
• 2nd subroutine name from which it was called
  (for the error message written by checkexists)
• The function will return .true. If the file is
  found, .false. otherwise

66
p-TOMCAT input/output

• By convention, all file based I/O is done on
  process 0
• Messages can be output from any process but
  beware of flooding the log file with ncpus
  worth of messages all the same e.g. if ( .not.
  checkexists('/santmp/emgdc/input,subname))
  then
• if (myproc 0 ) print ,could not find
  the file call endrun(.false.)endif
• What would happen if the if (myproc 0) was
  removed?
• Note here that endrun MUST be called by all
  processes

67
p-TOMCAT channel numbers

• Channel (or unit) numbers are assigned
  dynamically in p-TOMCAT
• You must not make up your own unit numbers
• Use the function getunit() to find the next free
  channel number if ( myproc 0 ) iunit
  getunit()
• When youve finished with it, return it to the
  list of free channels by if (myproc 0 )
  ierr freeunit(iunit)
• If you need to keep a unit number, call getunit()
  once in an initialisation and never call freeunit
  e.g. subroutine mysub logical, save
  first .true. integer, save iunit if (
  first ) then
• iunit getunit() first
  .false. endif

68
Input/output complete example

• if ( .not.checkexists(aircraftems,'readem') )
  call endrun(.false.)
• if ( myproc 0 ) then
• iunit getunit()
• open(iunit,filetrim(aircraftems),status'ol
  d')
• endif
• do m 1,12
• do k 1,3
• do l 1,niv
• call ppreadfm(iunit,csdervn(1,1,l,m,k,1)) !
  formatted read.
• end do
• end do
• end do
• if ( myproc0 ) then
• close(iunit)
• ierr freeunit(iunit)
• endif
• ppreadfm and ppread handle reading formatted and
  unformatted global arrays, and distributing them
  to the correct processors

69
p-TOMCAT input/output optimisation

• I/O hits the models performance
• Read data into saved arrays at the start of the
  run
• Rather than read a file every, say, week/month
  read all of it whenever you can (caching)
• There is always a tradeoff between reading files
  and storing them in memory, so if youre not sure
  whats best please ask

70
Zonal global means

• Use the supplied functions (see
  mod_zonalmean.f90)
• my_zonalmean - sums along a latitude row. Each
  process gets a copy of the zonal mean for the
  latitudes it owns
• global_zonalmean - process 0 only gets the
  complete zonal mean field
• These functions take care of the MPI calls
• They also give reproducible answers regardless of
  the domain decomposition
• They reduce loss of precision from rounding by
  summing smallest values to biggest values
• To compute a global mean use the subroutine
• call mpe_reduce(emlight, temp, 0,
  mperr)

71
Adding fields to the netcdf output

• A common requirement might be to add new output
  fields to the netcdf file
• Consult the code in mod_unicdf.f90. Lots of
  comments at the top of this file explaining what
  to do.
• Consists of two steps
• Define the new variable in the netcdf field
  (once-only step)
• Add code to gather the variable from the
  processors and write it out

72
Defining new netcdf fields

• First must define the new field and its
  properties in the netcdf file
• Modify the subroutine inicdf in mod_unicdf.f90
• As an example, we want to add output of a 3D
  model field for relative humidity. After the
  definition of the other 3D fields we add call
  unitom_def_var( tomcat_results, 'rh', NF90_FLOAT,
  dims4d,
• long_name 'Relative humidity', axis'TZYX',
  units'' )
• Arguments
• tomcat_results is the variable for the netcdf
  file (derived type)
• rh is the field name as its short name in the
  netcdf file
• dims4d means is 3D in space and varies with time
• long_name, axis and units are all attributes
  associated with this variable in the netcdf file.
  You do not strictly need them but it is strongly
  recommended you include them

73
Writing out new netcdf fields

• To write out this field, add some code to
  write_cdf in mod_unicdf.f90
• First add code to collect the patch arrays into
  a global array. If possible, use the already
  declared field array to avoid introducing new
  global arrays
• do k 1, niv
• call collf( field(1,1,k), rh(1,1,k), NLONMX,
  1, 1, 0 )
• end do
• Then add some code to write it out
• if ( myproc 0 )
• call unitom_write_var( tomcat_results, rh,
  field, timeindex )

74
Debugging

• Debugging in parallel is considerably more
  complicated than a serial program
• There are a number of potential problems that can
  arise just because tomcat is parallel
• Most common is that the model will just
  completely stop dead (why?)
• If TOMCAT is giving problems
• Check new code by using -check_bounds
• Reduce the number of processors and print out
  numbers (see mod_utility.f90 for helpful code)
• Debug interactively on wren - particularly if
  model just stopped
• Seek help!

75
Debugging using Totalview

• Manchester has an interactive, parallel, debugger
  available on wren and newton. Extremely useful!
• To use it
• Get model to run near to point where it crashes
  and save restart file
• Recompile with debugging options (but not
  -check_bounds)
• Alter model to use max. of 4 processors
• Edit tom.run script, comment out line beginning
  mpirun -np and uncomment line beginning
  totalview mpirun -np
• Set your DISPLAY environment variable then do
  ./tom.run
• Then ask someone to show you how totalview works
  if you are not sure

76
Flight tracks

• A facility exists in the model to output the
  species along a flight track either real or made
  up
• The flight track code will interpolate in space
  but not in time and work in parallel
• To find out how to use it consult the model user
  guide

77
Future directions

• Things you might see in future versions of
  p-TOMCAT
• Ability to run properly at 1x1 or 0.5x0.5
  horizontal resolution
• More vertical levels
• Faster chemistry code and other optimisations
• New advection scheme
• New chemistry isoprene? Halogen?
• New vertical mixing scheme (PBL)
• New diagnostics, possibly also chemical budgets
• Ask if you want something!

78
Final comments

• Any questions, ask Glenn or Nick
• Youre encouraged to look at the code for
  examples of how to do things
• Suggestions for improvements and bug reports are
  always welcome!

79
Acknowledgements

• p-TOMCATs parallel code is based on the work
  Cate Bridgeman did on parallelizing SLIMCAT and
  TOMCAT. The MPI code is originally derived from
  portions of the ECMWF semi-Lagrangian model
• Martyn Chipperfield is thanked for help with some
  aspects of the model code
• Last but certainly not least, thanks to Fiona
  OConnor and Nick Savage for all their long hard
  work on the model and comments on bits of this
  course
