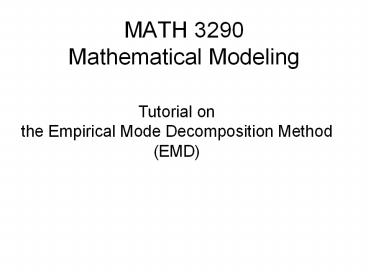

MATH 3290 Mathematical Modeling

1
MATH 3290 Mathematical Modeling
Tutorial on the Empirical Mode Decomposition
Method (EMD)
2
First, review of the procedure of EMD
methodThe main idea of the EMD method is Sifting
3
Empirical Mode Decomposition Methodology Test
Data
4
Empirical Mode Decomposition Methodology data
and m1
5
Empirical Mode Decomposition Methodology data
h1
6
Empirical Mode Decomposition Methodology h1
m2
7
Empirical Mode Decomposition Methodology h3
m4
8
Empirical Mode Decomposition Methodology h4
m5
9
Empirical Mode DecompositionSifting to get one
IMF component
10
Two Stoppage Criteria SD
Standard Deviation is small than a pre-set
value, where
11
Stoppage Criteria

• It is critical that we use the correct stoppage
  criterion.
• Over shifting, we can prove that the envelopes
  defined has to be a straight line.
• If the data is not monotonically increasing or
  decreasing, the straight lines would be
  horizontal lines.

12
Empirical Mode Decomposition Methodology IMF
c1
13
Definition of the Intrinsic Mode Function (IMF)

14
Empirical Mode DecompositionSifting to get all
the IMF components
15
Empirical Mode Decomposition data
16
Empirical Mode Decomposition IMFs and residue
17
Definition of Instantaneous Frequency
18
Definition of Frequency
Given the period of a wave as T the frequency
is defined as
19
Equivalence

• The definition of frequency is equivalent to
  defining velocity as
• Velocity Distance / Time

20
Instantaneous Frequency
21
The combination of Hilbert Spectral Analysis and
Empirical Mode Decomposition is designated as

• Hilbert-Huang Transform
• (HHT vs. FFT)

22
Comparison between FFT and HHT
23
The Idea behind EMD

• To be able to analyze data from the nonstationary
  and nonlinear processes and reveal their physical
  meaning, the method has to be Adaptive.
• Adaptive requires a posteriori (not a priori)
  basis. But the present established mathematical
  paradigm is based on a priori basis.
• Only a posteriori basis could fit the varieties
  of nonlinear and nonstationary data without
  resorting to the mathematically necessary (but
  physically nonsensical) harmonics.

24
The Idea behind EMD

• The method has to be local.
• Locality requires differential operation to
  define properties of a function.
• Take frequency, for example. The traditional
  established mathematical paradigm is based on
  Integral transform. But integral transform
  suffers the limitation of the uncertainty
  principle.

25
Global Temperature Anomaly

• Annual Data from 1856 to 2003

26
Global Temperature Anomaly 1856 to 2003
27
IMF Mean of 10 Sifts CC(1000, I)
28
Data and Trend C6
29
Rate of Change Overall Trends EMD and Linear
30
What This Means

• Instantaneous Frequency offers a total different
  view for nonlinear data instantaneous frequency
  with no need for harmonics and unlimited by
  uncertainty.
• Adaptive basis is indispensable for nonstationary
  and nonlinear data analysis
• HHT establishes a new paradigm of data analysis

31
Comparisons
Fourier Wavelet Hilbert
Basis a priori a priori Adaptive
Frequency Integral transform Global Integral transform Regional Differentiation Local
Presentation Energy-frequency Energy-time-frequency Energy-time-frequency
Nonlinear no no yes
Non-stationary no yes yes
Uncertainty yes yes no
Harmonics yes yes no
32
Conclusion

• Adaptive method is a scientifically meaningful
  way to analyze data.
• It is a way to find out the underlying physical
  processes therefore, it is indispensable in
  scientific research.
• It is physical, direct, and simple.

33

• History of EMD HHT
• 1998 The Empirical Mode Decomposition Method and
  the Hilbert Spectrum for Non-stationary Time
  Series Analysis, Proc. Roy. Soc. London, A454,
  903-995. The invention of the basic method of
  EMD, and Hilbert transform for determining the
  Instantaneous Frequency and energy.
• 1999 A New View of Nonlinear Water Waves The
  Hilbert Spectrum, Ann. Rev. Fluid Mech. 31,
  417-457.
• Introduction of the intermittence in
  decomposition.
• 2003 A confidence Limit for the Empirical mode
  decomposition and the Hilbert spectral analysis,
  Proc. of Roy. Soc. London, A459, 2317-2345.
• Establishment of a confidence limit without the
  ergodic assumption.
• 2004 A Study of the Characteristics of White
  Noise Using the Empirical Mode Decomposition
  Method, Proc. Roy. Soc. London, 460, 1597-1611.
• Defined statistical significance and
  predictability.

34

• Recent Developments in HHT
• 2007 On the trend, detrending, and variability
  of nonlinear and nonstationary time series.
  Proc. Natl. Acad. Sci., 104, 14,889-14,894.
• The correct adaptive trend determination method
• 2009 On Ensemble Empirical Mode Decomposition.
  Advances in Adaptive Data Analysis. (Advances in
  Adaptive data Analysis, 1, 1-41)
• 2009 On instantaneous Frequency. Advances in
  Adaptive Data Analysis (Advances in Adaptive Data
  Analysis. Advances in Adaptive data Analysis, 1,
  177-229).
• 2009 Multi-Dimensional Ensemble Empirical Mode
  Decomposition. Advances in Adaptive Data Analysis
  (Advances in Adaptive Data Analysis. Advances in
  Adaptive data Analysis, 1, 339-372).
• 2010 The Time-Dependent Intrinsic Correlation
  based on the Empirical Mode Decomposition
  (Advances in Adaptive Data Analysis. Advances in
  Adaptive data Analysis, 2, 233-265).
• 2010 On Hilbert Spectral Analysis (to appear in
  AADA).

35
Current Efforts and Applications

• Non-destructive Evaluation for Structural Health
  Monitoring
• (DOT, NSWC, DFRC/NASA, KSC/NASA Shuttle, THSR)
• Vibration, speech, and acoustic signal analyses
• (FBI, and DARPA)
• Earthquake Engineering
• (DOT)
• Bio-medical applications
• (Harvard, Johns Hopkins, UCSD, NIH, NTU, VHT, AS)
• Climate changes
• (NASA Goddard, NOAA, CCSP)
• Cosmological Gravity Wave
• (NASA Goddard)
• Financial market data analysis
• (NCU)
• Theoretical foundations
• (Princeton University and Caltech)

36
Reference

• Huang, M. L. Wu, S. R. Long, S. S. Shen, W. D.
  Qu, P. Gloersen, and K. L. Fan (1998)The
  empirical mode decomposition and the Hilbert
  spectrum for nonlinear and non-stationary time
  series analysis. Proc. Roy. Soc. Lond., 454A,
  903-993.
• Flandrin, P., G. Rilling, and P. Gonçalves
  (2004) Empirical mode decomposition as a filter
  bank. IEEE Signal Proc Lett., 11, 112-114.
• Research Center for Adaptive Data Analysis,
  National Central University
• http//rcada.ncu.edu.tw/research1.htm
