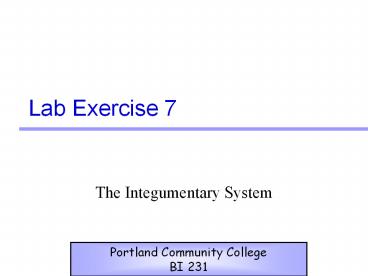

Lab Exercise 7

1
Lab Exercise 7

• The Integumentary System

Portland Community College BI 231
2
Skin

• Or Cutaneous membrane is an organ.
• (an organ is a structure that contains two or
  more of the primary tissue types)
• Embedded within the skin are various accessory
  structures the combination of both is called the
  integumentary system

3
Skin

• Epidermis Superficial layer
• Made of stratified squamous keratinized
  epithelium
• 4-5 Layers
• Dermis Underlying connective tissue layer
• 2 Layers
• Hypodermis Not part of the skin, it is deep to
  the dermis
• Primarily adipose tissue

4
Layers of the epidermis

• Stratum basale single row of cells
• Adjacent to the dermis and attached by the
  basement membrane.
• Constantly dividing and pushing up layers
• Melanocytes with melanin protects the skin from
  UV radiation

5
Layers of the Epidermis

• Stratum spinosum several cell layers superficial
  to stratum basale.
• Cells also dividing
• Cells contain bundles of intermediate filaments
  made of pre-keratin
• Cells appear star-shaped because the cell
  membrane pulls away from the other cells, except
  in areas where desmosomes are.

6
Layers of the Epidermis

• Stratum granulosum
• The upper part of this layer has cells that are
  beginning to die
• Lamellated granules contain a waterproofing
  glycolipid that is secreted into the
  extracellular space
• Keratohyaline granules combine with intermediate
  filaments to form keratin fibrils

7
Layers of the Epidermis

• Stratum lucidum Thin translucent layer of dead
  keratinocytes
• Found only in thick skin

8
Layers of the Epidermis

• Stratum corneum Outermost layer
• 20-30 cell layers thick
• Cells are dead and flattened
• Full of keratin
• Constantly being rubbed off

9
(No Transcript)
10
Epidermis cell phases

• Deepest layer (basale) goes through rapid
  division.
• Middle layers undergo a process of producing
  precursor molecules that lead to waterproofing of
  the cells.
• The final phase is the completion of the
  waterproofing process. Cells eventually die,
  providing a tough barrier

11
Dermis

• The dermis is the connective tissue layer under
  the epidermis.
• Composed of primarily of fibers
• Irregularly arranged collagen fibers make up the
  majority and provide strength and flexibility to
  skin
• Lesser numbers of elastic fibers which provided
  elasticity to the skin
• There are also reticular fibers found in the
  dermis
• blood vessels, nerves, sensory receptors, hair
  follicles and glands.

12
Dermis

• Papillary Layer Superficial dermal region
• Areolar connective tissue
• Contains capillaries, lymphatics and sensory
  neurons
• Dermal Papillae the fingerlike projections from
  the superior surface
• Epidermal ridge The epidermal layer that dips
  down into the dermal papillae
• Create fingerprints

13
Epidermis
Epidermal ridge
PapillaryLayer
Dermal Papillae
ReticularLayer
14
Finger Prints
Epidermal Ridge
15
Dermis

• Reticular Layer Deepest skin layer
• Dense irregular connective tissue
• Contains the arteries, veins, sweat and sebaceous
  glands
• Cleavage lines the deep creases (like in the
  palm) where collagen and elastic fibers are
  arranged in parallel bundles.

16
Hypodermis
Dermis

• Subcutaneous layer that is not part of the skin
• Beneath the dermis layer
• Composed of adipose and areolar connective tissue
• Highly vascular

Hypodermis
17
Cells of the Epidermis

• Keratinocytes The main cells of the epidermis
• Produce keratin, water proof protein
• As new cells form, they push the older cells
  toward the surface, where they gradually
  accumulate keratin and eventually die
• Melanocytes Spidery black cells
• In stratum basale
• Produce melanin, the pigment that protects skin
  from UV damage

18
Cells of the Epidermis
19
Meissners (Tactile) Corpuscle

• Located in the dermal papillae
• Receptor for light touch

20
Merkel Cells

• Merkel Cells At the junction of the sensory
  nerve endings
• In upper dermis and ll
• lower epidermis
• Light touch (like fly
• walking over cheek)

21
Pacinian (Lamellated) Corpuscle

• Lie deep in the dermis
• Respond only when deep pressure is first applied
• Monitor high frequency vibrations

22
Other skin receptors

• Warm and cool receptors When you are at
  comportable temperature both of these are firing
• If you increase or decrease the skin temperature
  beyond the range of these receptors, pain
  receptors are stimulated.
• Pain receptors are naked nerve endings in the
  dermis that respond to numerous environmental
  stimuli.

23
Integumentary Glands

• Sudoriferous (sweat) glands
• Lactiferous (milk) glands
• Sebaceous (oil) glands
• Ceruminous (earwax) glands

24
Eccrine (Merocrine) Sweat Glands

• Eccrine sweat glands
• Ducts open directly on the surface of the
  epidermis
• Produce normal body perspiration.
• Reduces body temperature by evaporative cooling

25
Apocrine Sweat Glands

• Apocrine glands secrete a water and a higher
  concentration of organic acids than eccrine
  glands that bacteria can use for nutrients
  (creates body odor)
• Found in the armpits, around nipples and in the
  pubic region
• Secrete products into hair follicles or directly
  onto the surface.
• Begin functioning at puberty

26
Apocrine Sweat Glands

• Red arrow - Apocrine Sweat Glands
• Green arrow - Hair follicle

27
Sebaceous Glands

• Sebaceous glands
• Produce oily substance called sebum
• Helps waterproof the skin
• Acne infection of the sebaceous gland

28
Hair

• Keratinized cells produced in
• Hair follicles tubular compartments that contain
  hair(projections of the epidermis into dermis)

29
Hair

• Bulb deepest portion of the hair follicle
• Bulb contains the hair matrix which contains
  actively dividing cells
• The actively dividing cells give rise to the hair
  root.

As hair root approaches the surface of the skin
it becomes the hair shaft. Hard Keratin covers
the hair
30
Hair Histology
31
Arrector Pili Muscle

• Arrector pili muscle Smooth muscle that pull
  hair upright during fright or cold (goose bumps)

32
Hair

• Determinate hair grows to a specific length and
  then stops
• Found in axilla, groin, eyelashes and eyebrows.
• Indeterminate hair grows without regard to
  length.
• Found on scalp and beards

33
Hair

• Medulla central portion of the hair which is
  enclosed by an outer cortex.
• The cortex may contain pigments which give the
  hair its color (melanin)
• The cuticle is superficial to the cortex

34
Fingernails

• Scale like modification of the epidermis
• Free edge part that grows away from the finger
• Body The nail
• Root Embedded in skin and sticks to the nail bed
• Nail Bed Extension of the stratum basale beneath
  the nail
• Nail Matrix Proximal part of the nail bed
  responsible for nail growth
• Lunula white crescent area Most active growth
  region of nail matrix

35
Fingernail Structures
36
Muscle Tissue

• Like epithelial tissue, muscular tissue is a
  cellular tissue with the tissue having mostly
  cells and little matrix
• There are three types of muscle skeletal,
  cardiac and smooth

37
Skeletal Muscle

• Cells called fibers
• Striated
• Voluntary
• Multinucleate

38
Sarcomere
39
Cardiac Muscle

• Striated but striations are much less obvious.
• Cardiac muscle cells are called myocytes.
• Branched
• Involuntary
• Intercalated discs, which facilitate the
  transmission of the electrical impulses in the
  heart

40
Smooth Muscle

• Nonstriated
• Involuntary
• Cells of smooth muscle are spindle-shaped
• Found in intestine where it propels food along by
  a process known as peristalsis and segmentation

41
The End
The End
