5a-1

1

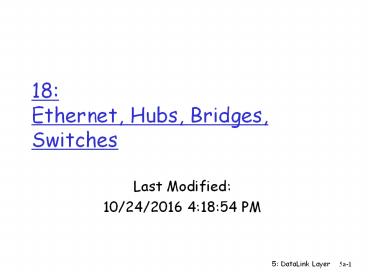

18 Ethernet, Hubs, Bridges, Switches

• Last Modified
• 10/24/2016 41852 PM

2
Ethernet

• dominant LAN technology
• First widely used LAN technology
• Kept up with speed race 10, 100, 1000 Mbps

Metcalfes Ethernet sketch
3
Ethernet Frame Structure

• Sending adapter encapsulates IP datagram (or
  other network layer protocol packet) in Ethernet
  frame
• Preamble
• 7 bytes with pattern 10101010 followed by one
  byte with pattern 10101011
• used to synchronize receiver, sender clock rates

4
Ethernet Frame Structure (more)

• Addresses 6 bytes, frame is received by all
  adapters on a LAN and dropped if address does not
  match
• Type indicates the higher layer protocol, mostly
  IP but others may be supported such as Novell IPX
  and AppleTalk)
• CRC checked at receiver, if error is detected,
  the frame is simply dropped

5
Ethernet Unreliable, connectionless

• connectionless No handshaking between sending
  and receiving NICs
• unreliable receiving NIC doesnt send acks or
  nacks to sending NIC
• stream of datagrams passed to network layer can
  have gaps (missing datagrams)
• gaps will be filled if app is using TCP
• otherwise, app will see gaps
• Ethernets MAC protocol unslotted CSMA/CD

6
Ethernet uses CSMA/CD

• A sense channel, if idle
• then
• transmit and monitor the channel
• If detect another transmission
• then
• abort and send jam signal
• update collisions
• delay as required by exponential backoff
  algorithm
• goto A
• else done with the frame set collisions to
  zero
• else wait until ongoing transmission is over and
  goto A

7
Ethernets CSMA/CD (more)

• Jam Signal make sure all other transmitters are
  aware of collision 48 bits
• Exponential Backoff
• Goal adapt retransmission attempts to estimated
  current load
• heavy load random wait will be longer
• first collision choose K from 0,1 delay is K
  x 512 bit transmission times
• after second collision choose K from 0,1,2,3
• after ten or more collisions, choose K from
  0,1,2,3,4,,1023

8
Manchester encoding

• used in 10BaseT
• each bit has a transition
• allows clocks in sending and receiving nodes to
  synchronize to each other
• no need for a centralized, global clock among
  nodes!
• Hey, this is physical-layer stuff!

9
Ethernet Technologies 10Base2

• 10 10Mbps 2 under 200 meters max cable length
• thin coaxial cable in a bus topology
• repeaters used to connect up to multiple segments
• repeater repeats bits it hears on one interface
  to its other interfaces physical layer device
  only!

10
10BaseT and 100BaseT

• 10/100 Mbps rate latter called fast ethernet
• T stands for Twisted Pair
• Hub to which nodes are connected by twisted pair,
  thus star topology
• CSMA/CD implemented at hub

11
10BaseT and 100BaseT (more)

• Max distance from node to Hub is 100 meters
• Hub can disconnect jabbering adapter
• Hub can gather monitoring information, statistics
  for display to LAN administrators

12
Gbit Ethernet

• use standard Ethernet frame format
• allows for point-to-point links and shared
  broadcast channels
• in shared mode, CSMA/CD is used short distances
  between nodes to be efficient
• uses hubs, called here Buffered Distributors
• Full-Duplex at 1 Gbps for point-to-point links

13
Repeaters

• Physical Layer devices operating at bit levels
  repeat received bits on one interface to all
  other interfaces
• Extend the range of a signal by amplifying
• Useful when want to connect devices beyond the
  IEEE 802.3 specifications for distance limitation
  of 328 feet or 100 meters
• Examples outdoor installations, mine shafts,
  remote locations, etc.

14
Hubs

• Also physical layer device, but may have some
  management
• Hubs can be arranged in a hierarchy (or
  multi-tier design), with backbone hub at its top
• Hubs do not isolate collision domains node may
  collide with any node residing at any segment in
  LAN
• Hub Advantages
• Simple, inexpensive device
• Multi-tier provides graceful degradation
  portions of the LAN continue to operate if one
  hub malfunctions
• Extends maximum distance between node pairs (100m
  per Hub)

15
Hubs

• physical-layer (dumb) repeaters
• bits coming in one link go out all other links at
  same rate
• all nodes connected to hub can collide with one
  another
• no frame buffering
• no CSMA/CD at hub host NICs detect collisions

16
Hub limitations

• Single collision domain results in no increase in
  max throughput
• multi-tier throughput same as single segment
  throughput
• Also less secure hear traffic from/to everyone
  on the hub
• Individual LAN restrictions pose limits on number
  of nodes in same collision domain and on total
  allowed geographical coverage
• Difficult to connect different Ethernet types,
  but can have dual speed hubs (e.g., 10BaseT and
  100baseT)

17
Switch

• link-layer device smarter than hubs, take active
  role
• store, forward Ethernet frames
• examine incoming frames MAC address, selectively
  forward frame to one-or-more outgoing links when
  frame is to be forwarded on segment, uses CSMA/CD
  to access segment
• transparent
• hosts are unaware of presence of switches
• plug-and-play, self-learning
• switches do not need to be configured

18
Switch allows multiple simultaneous
transmissions

• Switch isolates collision domains
• Hosts have dedicated, direct connection to switch
• A-to-A and B-to-B simultaneously, without
  collisions
• not possible with dumb hub
• Does not forward out all interfaces
• Buffers frames
• Ethernet protocol used on each incoming link, but
  no collisions full duplex
• each link is its own collision domain

switch with six interfaces (1,2,3,4,5,6)
19

• Collision domain
• When I speak, who else can I prevent from
  speaking at the same time
• Hub one collision domain Switch collision
  domain per port
• Broadcast domain
• When I deliberately send a broadcast address, who
  all hears it
• VLANs separate broadcast domains

20
Managed vs Unmanaged

• Switches more likely than hubs or repeaters to
  have sophisticated management features
• Log in remotely and configure, get
  reports/statistics etc.
• More control over what each port or group of
  ports can do (e.g. establish groups of ports into
  virtual LANs or VLANs that further divide the
  broadcast domain)

21
Switches (more)

• Switch advantages
• Isolates collision domains resulting in higher
  total max throughput and more security
• Can connect different type Ethernet since it is a
  store and forward device ( dual speed hub is
  compromise between full switch and hub that does
  this)

22
Switch frame filtering, forwarding

• Switches filter packets
• same-LAN -segment frames not forwarded onto other
  LAN segments
• Forwarding
• how to know which LAN segment on which to forward
  frame?
• looks like a routing problem?

23
Switch self-learning
A

• switch learns which hosts can be reached through
  which interfaces
• when frame received, switch learns location of
  sender incoming LAN segment
• records sender/location pair in switch table

C
B
1
2
3
6
4
5
C
B
A
Switch table (initially empty)
24
Switch frame filtering/forwarding

• When frame received
• 1. record link associated with sending host
• 2. index switch table using MAC dest address
• 3. if entry found for destination then
• if dest on segment from which frame arrived
  then drop the frame
• else forward the frame on interface
  indicated
• else flood

forward on all but the interface on which the
frame arrived
25
Self-learning, forwarding example
A
C
B

• frame destination unknown

1
2
3
flood
6
4
5

• destination A location known

C
selective send
B
A
Switch table (initially empty)
26

• Generally on a switch only see traffic to/from
  your machine and broadcast traffic
• Can attack switch by sending many MACs and
  overflowing its storage of which MACs on which
  port gt will begin to act like hub ( flooding
  each packet out every port)

27
Interconnecting switches

• switches can be connected together

S1
A
C
B

• Q sending from A to G - how does S1 know to
  forward frame destined to F via S4 and S3?
• A self learning! (works exactly the same as in
  single-switch case!)

28
Switches vs. Routers
application transport network link physical

• both store-and-forward devices
• routers Layer 3 or network-layer devices
  (examine network-layer headers)
• switches are Layer 2 or link-layer devices
  (examine link-layer headers)
• routers maintain routing tables, implement
  routing algorithms
• switches maintain switch tables, implement
  filtering, learning algorithms

switch
application transport network link physical
29
Switch Pros and Cons

• Switch operation is simpler requiring less
  processing bandwidth
• - Topologies are restricted with bridges a
  spanning tree must be built to avoid cycles
• - Switch do not offer protection from broadcast
  storms (endless broadcasting by a host will be
  forwarded by a bridge)

30
Routers Pros and Cons

• arbitrary topologies can be supported, cycling
  is limited by TTL counters (and good routing
  protocols)
• provide firewall protection against broadcast
  storms
• - require IP address configuration (not plug and
  play)
• - require higher processing bandwidth

31
Network Diagrams
Shared
32
Sample Icons

• Icons for in network diagrams

33
Summary

• Layer 3 Devices (Network Layer)
• Router
• Layer 2 Devices (Link Layer)
• Bridge
• Switch
• Layer 1 Devices (Physical Layer)
• Repeaters
• Hubs

34
Outtakes
35
Institutional network
mail server
to external network
web server
router
IP subnet
36
Switch Learning example

• Suppose C sends frame to D and D replies back
  with frame to C

• C sends frame, switch has no info about D, so
  floods to both LANs
• switch notes that C is on port 1
• frame ignored on upper LAN
• frame received by D

37
Switch Learning example

• D generates reply to C, sends
• switch sees frame from D
• switch notes that D is on interface 2
• switch knows C on interface 1, so selectively
  forwards frame out via interface 1

38
Spanning Tree

• for increased reliability, desirable to have
  redundant, alternate paths from source to dest
• with multiple simultaneous paths, cycles result -
  bridges may multiply and forward frame forever
• solution organize bridges in a spanning tree by
  disabling subset of interfaces

39
Spanning Tree Algorithm
40

• VLAN tagging

41
Interconnection Without Backbone

• Not recommended for two reasons
• - single point of failure at Computer Science hub
• - all traffic between EE and SE must path over CS
  segment

42
Backbone Switch
43
Ethernet Switches

• Sophisticated bridges
• Switches usually switch in hardware, bridges in
  software
• large number of interfaces
• Like bridges, layer 2 (frame) forwarding,
  filtering using LAN addresses
• Can support combinations of shared/dedicated,
  10/100/1000 Mbps interfaces

44
Switching

• Switching A-to-B and A-to-B simultaneously, no
  collisions
• cut-through switching frame forwarded from input
  to output port without awaiting for assembly of
  entire frame
• slight reduction in latency
• Store and forward switching entire frame
  received before transmission out an output port
• Fragment-free switching compromise, before send
  out the output port receive enough of the packet
  to do some error checking (ex. detect and drop
  partial frames)

45
Ethernet Limitations

• Q Why not just one big Ethernet?
• Limited amount of supportable traffic on single
  LAN, all stations must share bandwidth
• limited length 802.3 specifies maximum cable
  length
• large collision domain (can collide with many
  stations)
