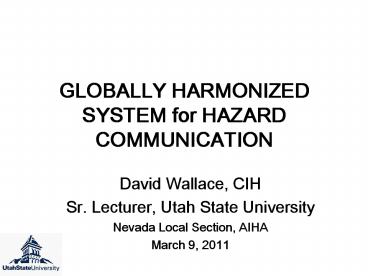

GLOBALLY HARMONIZED SYSTEM for HAZARD
COMMUNICATION

• David Wallace, CIH
• Sr. Lecturer, Utah State University
• Nevada Local Section, AIHA
• March 9, 2011

2
Outline

• GHS overview
• OSHAs GHS activity
• Proposed changes to the Hazard Communication
  Standard
• Current status of the proposed standard
• Impact on Safety professionals

3
Introduction

• In 1985, one of my jobs as a young industrial
  hygiene professional was helping my employer
  comply with OSHAs new Hazard Communication
  standard, 1910.1200.
• Now, it looks like we will need to do it again!

4
Introduction

• AIHA online GHS course, if you want to learn more!

5
GHS Overview

• Globally Harmonized System Of Classification And
  Labeling Of Chemicals
• United Nations guidance for a uniform
  (harmonized) hazard communication system
• Initiated at the 1992 United Nations Conference
  on Environment and Development (UNCED)
• Based on major existing systems
• USA and Canadian systems for the workplace,
  workplace, consumers and pesticides
• European Union directives for classification and
  labeling of substances and preparations
• United Nations Recommendations on the Transport
  of Dangerous Goods.

6
GHS Overview
GHS Purple Book

• Elements
• Harmonized criteria for classifying substances
  and mixtures according to their health,
  environmental and physical hazards
• Harmonized hazard communication elements,
  including requirements for labeling and safety
  data sheets.
• Guide to the GHS (OSHA)

7
GHS Overview

• Justification
• Label requirements differ, requiring multiple
  labels for the same product
• Hazard definitions are not consistent
• Toxicity, Flammability
• Globally over 100 diverse hazard communication
  regulations for their products globally
• Regulatory compliance is complex and costly
• Barrier to international trade in chemicals

8
(No Transcript)
9
(No Transcript)
10
Flammability example
11
(No Transcript)
12
Flammability Example

• OSHA letter of interpretation, July 14, 2010
• Re The definitions of combustible and flammable
  liquids under 29 CFR 1926 and 29 CFR 1910.
• Question Why are the definitions for combustible
  liquids and flammable liquids different under
  OSHA's construction and general industry
  standards?
• Answer The definitions in the two standards are
  different because the definitions were adopted
  from different sources. OSHA is currently
  addressing these definitions in the Hazard
  Communication rulemaking. GHS
• http//www.osha.gov/pls/oshaweb/owadisp.show_docum
  ent?p_tableINTERPRETATIONSp_id27488

13
GHS Overview

• Key Guiding Principles of the Harmonization
  Process
• Protection will not be reduced
• Will be based on intrinsic properties (hazards)
  of chemicals
• All types of chemicals will be covered
• All systems will have to be changed
• Involvement of all stakeholders should be ensured
• Comprehensibility must be addressed

14
GHS Hazard Classification

• Defined criteria are used to assign a hazard
  classification
• Physical Hazards
• 16 categories
• Health Hazards
• 10 categories
• Environmental Hazards
• Mixtures
• GHS classification guidance for when chemicals
  are mixed

15
GHS Hazard Classification

• Physical Hazards (16)
• Explosives
• Flammable Gases
• Flammable Aerosols
• Oxidizing Gases
• Gases Under Pressure
• Flammable Liquids
• Flammable Solids
• Self-Reactive Substances

• Pyrophoric Liquids
• Pyrophoric Solids
• Self-Heating Substances
• Substances which, in contact with water, emit
  flammable gases
• Oxidizing Liquids
• Oxidizing Solids
• Organic Peroxides
• Corrosive to Metals

16
GHS Hazard Classification

• Health Hazards (10)
• Acute Toxicity
• Skin Corrosion/Irritation
• Serous Eye Damage/Eye Irritation
• Respiratory or Skin Sensitization
• Germ Cell Mutagenicity
• Carcinogenicity

• Reproductive Toxicology
• Target Organ Systemic Toxicity Single Exposure
• Target Organ Systemic Toxicity Repeated
  Exposure
• Aspiration Toxicity

17
GHS Hazard Classification

• Hazardous to the Aquatic Environment
• Acute aquatic toxicity
• Chronic aquatic toxicity
• Bioaccumulation potential
• Rapid degradability

18
GHS Hazard Communication

• Labels
• Symbols (hazard pictograms) with red border
• Examples

19
GHS Hazard Communication

• Labels (cont.)
• Nine symbols
• Includes Environment

20
GHS Hazard Communication

• Labels (cont.)
• Signal Words
• Danger or Warning
• Hazard Statements
• Example Toxic if swallowed
• Other
• Precautions, identification, supplier,
  supplemental

21
GHS Hazard Communication

• Labels (cont.)
• GHS Label Elements for Flammable Liquids

22
GHS label example
23
GHS Hazard Communication

• GHS Safety Data Sheet (SDS)
• 16 headings
• Similar to ISO, EU, and ANSI MSDS/SDS
  requirements

24
OSHA MSDS format (old)

• OSHA-174 (1989), 8 sections (non-mandatory)
• Manufacturer information
• Hazard Ingredients/Identity Information
• Physical/chemical properties
• Fire and Explosion Hazard Data
• Reactivity Data
• Health Hazard Data
• Precautions for Safe Handling and Use
• Control Measures

24
25
ANSI MSDS format

• ANSI Z400.1-2004
• Product and Company Identification
• Hazard Identification
• Composition / Information On Ingredients
• First Aid Measures
• Fire Fighting Measures
• Accidental Release Measures
• Handling and Storage

1. Exposure Control / Personal Protection
2. Physical and Chemical Properties
3. Stability and Reactivity
4. Toxicological Information
5. Ecological Information
6. Disposal Considerations
7. Transport Information
8. Regulatory Information
9. Other Information

25
26
OSHA and the GHS

• Rulemaking Steps
• Advance Notice of Proposed Rulemaking, ANPR
• Sept. 12, 2006
• Notice of Proposed Rulemaking
• Sept. 30, 2009
• Public Comment Period ended Dec. 29, 2009
• Public Hearings
• Washington, Pittsburgh and Los Angeles
• March and April, 2010
• Post-hearing Comment Period ended June 1, 2010
• Final Standard
• Probably by late 2011, according to OSHA staff
• Phase-in Period for Compliance
• 2-3 years (as proposed)

27
Proposed OSHA rule

• Major changes to the Hazard Communication
  Standards
• Changed hazard determination to hazard
  classification
• Changed MSDS to SDS
• Changed definitions to comply with GHS
• Labels for shipped containers must have GHS
  information
• Workplace labels may be GHS labels, or other
  labels that identify the material and hazard
• Safety Data Sheets with 16 sections
• May include guidance for transportation
  information and environmental hazards
• Side-by-side comparison (OSHA)

28
Proposed OSHA rule

• Major changes to the Hazard Communication
  Standards (cont.)
• Other OSHA standards are changed where applicable
• New wording on warning signs for asbestos and
  other health hazards
• Changes to standards for HAZWOPER, Combustible
  and Flammable Liquids, Welding Cutting and
  Brazing, etc.

29
Proposed OSHA rule

• Effective dates
• Two years after final rule
• Employee training on new labels and safety data
  sheets
• Three years after final rule
• Chemical manufacturers, importers, distributors,
  and employers in compliance with all modified
  provisions

30
Proposed OSHA rule

• Costs and benefits
• 97 million annual cost
• training, SDSs labels, management
• 851 million annual benefit
• reduced injuries/illnesses/fatalities, improved
  productivity and cost reduction
• 754 million net annual benefit

31
OSHA interpretation

• GHS labels comply with current OSHA requirements
• Standard Interpretation 10/06/2009 - Using the
  Globally Harmonized System (GHS) to Comply with
  OSHA's Hazard Communication Standard
• http//www.osha.gov/pls/oshaweb/owadisp.show_docum
  ent?p_tableINTERPRETATIONSp_id27218

32
Comments on the proposed rule

• OSHA specifically solicited comments about
• Costs and benefits
• Effect on small entities
• GHS classification system
• Combustible dusts and simple asphyxiants
• Color labels vs. BW
• PELs on data sheets
• Etc.
• Public Hearings ended April 13, 2010
• Record closed June 1, 2010 (877 items)

33
Comments on the proposed rule

• Maureen Ruskin, director of OSHA's Office of
  Chemical Hazards, at GHS Round Table, 5/24/2010,
  AIHCE, Denver, Co
• Vast majority of comments support OSHA
• OSHA should adopt EU reporting limits for chronic
  hazards
• Create hazards not otherwise classified
  category
• Support and criticism of proposal to drop TLVs
• Updating labels within 30 days may not be
  feasible
• OSHA may have underestimated cost of red border
• Mixed support for adoption of GHS hazard
  statements
• Disagreement about implementation dates
• OSHA should provide more information for training

34
Comments on the proposed rule

• OSHAs update (cont.)
• Some believe OSHA will create confusion with
  changes to flammable/combustible liquid
  classification, yet others agreed with OSHA
• OSHA should review safety standards to avoid
  conflicts
• Concerns over carcinogen notation changes in the
  health standards
• Concerns about conflict or confusion regarding
  EPA/DOT/NFPA
• OSHA underestimated costs
• Very little support for OSHAs proposed
  alternatives
• How will OSHA respond after UN updates GHS?

35
ASSEs comment

• ASSE applauds OSHA for its leadership in
  undertaking this rulemaking and urges that every
  possible step be taken to achieve a final rule as
  soon as practicable.

• However, ASSE has some concerns
• OSHA should include control banding
• OSHA underestimated the impact on small business
• Some hazard classifications should be modified
• OSHA should require red borders on labels
• Labels should have more required information
• TLV and REL exposure limits should be listed on
  data sheets
• The new standard should have a shorter deadline
  for training
• There may be a shortage of SHE professional on
  staff
• Etc.

36
AIHAs comment

• AIHA supports the proposed revision of the HCS
  and believes it will result in better hazard
  recognition and safer use of chemicals in the
  workplace.

• AIHAs generally supports OSHA
• Proposed hazard classifications are OK
• OSHA should require red borders on labels
• TLVs , WEELs and other exposure limits should be
  listed on data sheets
• OSHA should include a hazard category for
  combustible dust
• Training should not be delayed
• AIHA also submitted a post-hearing comment, April
  29, 2010 to answer OSHA questions

37
OSHAs Schedule

• Record closed June 1
• Tasks
• Analyze information in the record
• Prepare the final rule and update the analyses of
  the record
• Submit rule for administrative review
• OSHA, DOL, OMB
• This is high priority for OSHA
• Expect final standard about 1 ½ years (?)

38
Recent GHS activity

• United Nations Subcommittee of Experts on the
  Globally Harmonized System of Classification and
  Labelling of Chemicals (UNSCEGHS), Dec. 7-9,
  2010, in Geneva
• OSHA hosted an open informal public meeting of
  the U.S. Interagency GHS Coordinating Group, Nov.
  20, 2010.
• To provide interested parties with an update on
  GHS issues in preparation for the UN meeting
• http//www.osha.gov/pls/oshaweb/owadisp.show_docum
  ent?p_tableFEDERAL_REGISTERp_id21809

39
OSHAs Schedule

• Dr. David Michaels, Assistant Secretary of Labor
  for OSHA
• June 16, 2010 at the Baltimore ASSE conference
• the Global Harmonized System standard a
  non-controversial rule has received good
  comments and is moving along on target
• Source Occupational Health and Safety online
  magazine

40

• OSHAs Fall 2010 Regulatory Agenda,
  http//www.dol.gov/osha/regs/unifiedagenda/fall201
  0/1218-AC20.htm

Timetable
Action Date FR Cite
ANPRM 09/12/2006 71 FR 53617
ANPRM Comment Period End 11/13/2006
Complete Peer Review of Economic Analysis 11/19/2007
NPRM 09/30/2009 74 FR 50279
NPRM Comment Period End 12/29/2009
Hearing 03/02/2010
Hearing 03/31/2010
Post Hearing Comment Period End 06/01/2010
Final Action 08/00/2011
41
Commercial GHS services

• Commercial Hazard Communication and MSDS/SDS
  authoring services should be ready for GHS
• Required for international trade
• Preparing for domestic market
• Examples
• http//3ecompany.com/solutions/ghs-solutions/
• http//www.sitehawk.com/ghs_home.html

42
GHS in the commercial news

• Industry Week
• How to Convert to the Globally Harmonized System
  of Chemical Classification
• EHS Today
• GHS The Power of One
• OHS
• Major GHS Progress This Year
• OSHA's GHS Leader Sees Final Rule in 18 Months
• Global Harmonization A Catalyst for Safety
• OSHA, GHS, and Your MSDSs and Labels
• A Picture is Worth a Thousand Words
• OSHA Finally Brings GHS to America

43
Impact on Safety and IH Professionals

• Become familiar with the new system
• May want to wait until the OSHA rule is final
• Collect new SDSs as provided by suppliers and
  incorporate them into the existing MSDS system
  (or use a commercial service)
• Get new GHS labels for shipped containers
• Employers can use other systems for workplace
  labeling
• Train employees about new labels and SDS

44
Impact on Chemical Manufacturers and Distributors

• Prepare and use new GHS compatible labels
• Prepare and distribute new GHS compatible Safety
  Data Sheets
• Commercial authoring firms are ready and
  willing to help

45
GHS Resources

• GHS Websites
• OSHA, http//www.osha.gov/dsg/hazcom/global.html
• EPA, http//www.epa.gov/oppfead1/international/glo
  balharmon.htm
• DOT http//www.phmsa.dot.gov/hazmat/regs/internati
  onal
• CSPC, http//www.cpsc.gov/phth/GHSpolicy.html
• UN, http//www.unece.org/trans/danger/publi/ghs/gh
  s_rev02/02files_e.html
• Government Printing Office
• http//www.gpoaccess.gov/ this site will be
  replaced with the Federal Digital System,
  http//www.gpo.gov/fdsys/
• OSHA comments
• Docket No. OSHA-H022K- 2006-0062 at
  http//www.regulations.gov
• Nearly 900 items!
