Title: Molecules and Molecular Compounds


1

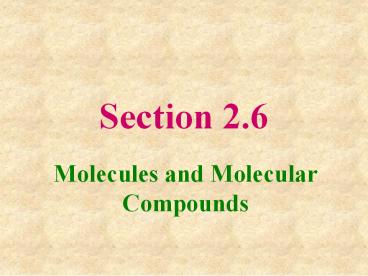

Section 2.6
  • Molecules and Molecular Compounds

2
Remember
  • Atoms are the smallest representative sample of
    an element? Building Blocks of Matter!
  • BUT- only the noble gases are found as isolated
    atoms
  • The rest exist as molecules or ions

3
Molecules
  • Assembly of two or more atoms tightly bound
    together, behaving as a single object

4
Chemical Formula
  • Notation that uses chemical symbols and subscript
    notation to convey relative proportions of atoms
    of elements in a molecule

5
Diatomic Molecule
  • Molecule composed of two atoms
  • Elements normally occurring as diatomic
  • Hydrogen (H2)
  • Oxygen (O2)
  • Nitrogen (N2)
  • The halogens (F2, Cl2, Br 2, I2)

6
Molecular Compounds
  • Compounds composed of molecules
  • Contain more than one type of atom
  • Examples CH4, H2O, H2O2
  • Most molecular compounds contain only nonmetals!!

7
(No Transcript)
8
  • Molecular Formula
  • Indicate the actual numbers and types of atoms in
    a molecule.
  • Empirical Formula
  • Only give the relative number of atoms of each
    type in a molecule.
  • Subscript is always the smallest possible
    whole-number ratio

9
Examples
10
(No Transcript)
11
Now You Try
12
(No Transcript)
13
(No Transcript)
14
If we know the molecular formula, we can
determine the empirical formula!
Does the converse hold true?
15
Structural Formula
  • Shows which atoms are attached to each other
    within a molecule
  • Atoms are represented by their chemical symbol
  • Lines represent bonds
  • Do not depict the geometry of the molecule (the
    angles of the bonds)

16
Acetone
17
Perspective Drawings
  • Structural formula that gives a sense of the
    three-dimensional shape of a molecule

Methane
18
Ball-and-stick models
  • Shows atoms as spheres and bonds as sticks
  • Accurately represents angles of the bonds
  • Also demonstrates relative size of atoms
  • Water

19
Space-filling models
  • Depict a molecule scaled up to size
  • Show relative size of atoms
  • Difficult to see the angles of the bonds

Water
