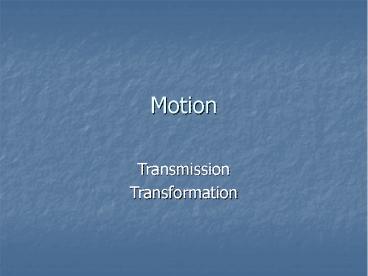

Motion

1
Motion

• Transmission
• Transformation

2
Mechanical Systems

• Combination of 2 or more simple machines
• Provide mechanical advantage
• Easier to move loads
• Transmit/transform motion
• What is the difference between transmission and
  transformation?

3
Transmission

• 4 types of motion transmitted by mechanical
  systems from one object to another

4
Mechanism Type of Motion Example
Chain and sprocket Circular Bicycle
Belt and pulley Circular Clothesline
Gears Circular Watch
Friction wheels Circular Printing press
Pulley Rectilinear crane
5
Chain and Sprocket
6
Belt and pulley
7
Gears
8
Friction Wheels
9
Pulley
10
Transformation

• One type of motion changed into another by
  mechanical systems

11
Mechanism Initial type of motion Final type of motion Example
Connecting rod and crank circular alternating Combustion engine
Cam and follower circular alternating Sewing machine
Rack and pinion circular rectilinear Wine bottle opener
Screw and nut circular rectilinear A bolt and a nut
12
Connecting Rod and Crank
13
Cam and follower
14
Rack and Pinion
15
Screw and Nut
