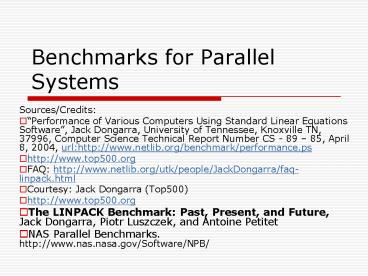

Benchmarks for Parallel Systems

1
Benchmarks for Parallel Systems

• Sources/Credits
• Performance of Various Computers Using Standard
  Linear Equations Software, Jack Dongarra,
  University of Tennessee, Knoxville TN, 37996,
  Computer Science Technical Report Number CS - 89
  85, April 8, 2004, urlhttp//www.netlib.org/ben
  chmark/performance.ps
• http//www.top500.org
• FAQ http//www.netlib.org/utk/people/JackDongarra
  /faq-linpack.html
• Courtesy Jack Dongarra (Top500)
• http//www.top500.org
• The LINPACK Benchmark Past, Present, and Future,
  Jack Dongarra, Piotr Luszczek, and Antoine
  Petitet
• NAS Parallel Benchmarks. http//www.nas.nasa.gov/S
  oftware/NPB/

2
LINPACK (Dongarra 1979)

• Dense system of linear equations
• Initially used as a users guide for LINPACK
  package
• LINPACK 1979
• N100 benchmark, N1000 benchmark, Highly
  Parallel Computing benchmark

3
LINPACK benchmark

• Implemented on top of BLAS1
• 2 main operations DGEFA(Gaussian elimination -
  O(n3)) and DGESL(Ax b O(n2))
• Major operation (97) DAXPY y y a.x
• Called n3/3 n2 times. Hence 2n3/3 2n2 flops
  (approx.)
• 64-bit floating point arithmetic

4
LINPACK

• N100, 100x100 system of equations. No change in
  code. User asked to give a timing routine called
  SECOND, no compiler optimizations
• N1000, 1000x1000 user can implement any code,
  should provide the required accuracy Towards
  Peak Performance (TPP). Driver program always
  uses 2n3/3 2n2
• Highly Parallel Computing benchmark any
  software, matrix size can be chosen. Used in
  Top500
• Based on 64-bit floating point arithmetic

5
LINPACK

• 100x100 inner loop optimization
• 1000x1000 three-loop/whole program optimization
• Scalable parallel program Largest problem that
  can fit in memory
• Template of Linpack code
• Generate
• Solve
• Check
• Time

6
HPL (Implementation of HPLinpack Benchmark)
7
HPL Algorithm

• 2-D block-cyclic data distribution
• Right-looking LU
• Panel factorization various options
• - Crout, left or right-looking recursive
  variants based on matrix multiply
• - Number of sub-panels
• - recursive stopping criteria
• - pivot search and broadcast by
  binary-exchange

8
HPL algorithm

• Panel broadcast
• -
• Update of trailing matrix
• - look-ahead pipeline
• Validity check
• - should be O(1)

9
Top500 (www.top500.org)

• Top500 1993
• Twice a year June and November
• Top500 gives Nmax, Rmax, N1/2, Rpeak

10
TOP500 list Data shown

• Manufacturer Manufacturer or vendor
• Computer Type indicated by manufacturer or
  vendor
• Installation Site Customer
• Location Location and country
• Year Year of installation/last major update
• Installation Type Academic, Research, Industry,
  Vendor, Classified, Government
• Installation Area e.g. Research Energy /
  Industry Finance
• Processors Number of processors
• Rmax Maxmimal LINPACK performance achieved
• Rpeak Theoretical peak performance
• Nmax Problem size for achieving Rmax
• N1/2 Problem size for achieving half of Rmax
• Nworld Position within the TOP500 ranking

11
(No Transcript)
12
India and Top 500
Rank Site SystemVendor Processors Rmax Rpeak
111 Geoscience (B)India BladeCenter HS20 Cluster, Xeon EM64T 3.4 GHz - Gig-Ethernet IBM 1024 3755 6963.2
204 Semiconductor Company (L)India eServer, Opteron 2.6 GHz, GigEthernet IBM 1024 2791 5324.8
231 Semiconductor Company (K)India xSeries x336 Cluster Xeon EM64T 3.6 GHz - Gig-Ethernet IBM 730 2676.88 5256
293 Institute of Genomics and Integrative BiologyIndia Cluster Platform 3000 DL140G2 Xeon 3.6 GHz Infiniband Hewlett-Packard 576 2156 4147.2
13
(No Transcript)
14
(No Transcript)
15
NAS Parallel Benchmarks - NPB

• Also for evaluation of Supercomputers
• A set of 8 programs from CFD
• 5 kernels, 3 pseudo applications
• NPB 1 Original benchmarks
• NPB 2 NASs MPI implementation. NPB 2.4 Class D
  has more work and more I/O
• NPB 3 based on OpenMP, HPF, Java
• GridNPB3 for computational grids
• NPB 3 multi-zone for hybrid parallelism

16
NPB 1.0 (March 1994)

• Defines class A and class B versions
• Paper and pencil algorithmic specifications
• Generic benchmarks as compared to MPI-based
  LinPack
• General rules for implementations Fortran90 or
  C, 64-bit arithmetic etc.
• Sample implementations provided

17
Kernel Benchmarks

• EP embarrassingly parallel
• MG multigrid. Regular communication
• CG conjugate gradient. Irregular long distance
  communication
• FT a 3-D PDE using FFT. Rigorous test of long
  distance communication
• IS large integer sort
• Detailed rules regarding
• - brief statement of the problem
• - algorithm to be practiced
• - validation of results
• - where to insert timing calls
• - method for generating random numbers
• - submission of results

18
Pseudo applications / Synthetic CFDs

• Benchmark 1 perform few iterations of the
  approximate factorization algorithm (SP)
• Benchmark 2 - perform few iterations of diagonal
  form of the approximate factorization algorithm
  (BT)
• Benchmark 3 - perform few iterations of SSOR (LU)

19
Class A and Class B
Class A
Sample Code
Class B
20
NPB 2.0 (1995)

• MPI and Fortran 77 implementations
• 2 parallel kernels (MG, FT) and 3 simulated
  applications (LU, SP, BT)
• Class C bigger size
• Benchmark rules 0, 5, gt5 change in source
  code

21
NPB 2.2 (1996), 2.4 (2002), 2.4 I/O (Jan 2003)

• EP and IS added
• FT rewritten
• NPB 2.4 class D and rationale for class D sizes
• 2.4 I/O a new benchmark problem based on BT
  (BTIO) to test the output capabilities
• A MPI implementation of the same (MPI-IO)
  different options using collective buffering or
  not etc.

22
