Phases of Photosynthesis

1

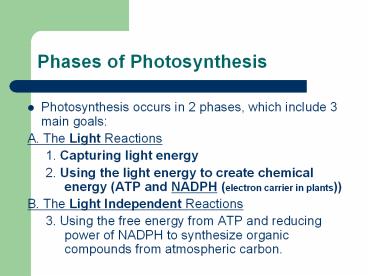

Phases of Photosynthesis

• Photosynthesis occurs in 2 phases, which include
  3 main goals
• A. The Light Reactions
• 1. Capturing light energy
• 2. Using the light energy to create chemical
  energy (ATP and NADPH (electron carrier in
  plants))
• B. The Light Independent Reactions
• 3. Using the free energy from ATP and reducing
  power of NADPH to synthesize organic compounds
  from atmospheric carbon.

2
Where They Occur

• The Light Reactions require chlorophyll and occur
  on the thylakoid membrane.
• The Light Independent reactions (aka The Calvin
  Cycle) take place in the stroma.

3
Light Reactions

• When light strikes the thylakoid membrane, the
  photosystems absorb a photon and the energy is
  passed from pigment to pigment until it reaches
  the reaction center (P680 or P700).
• The light energy excites the electrons in the
  chlorophyll a molecules.

4
Excitation of Electrons

• Electrons in a chlorophyll molecule are normally
  at their ground state or lowest potential energy
  level
• Excitation The photon hits the chlorophyll and
  the electrons are energized to a higher energy
  level.
• Outside a living organism excited electrons want
  to return to their ground state and lose
  potential energy as heat and light (fluoresce).

5
Non-Cyclic Electron Flow

• In a cell the excited electron is captured by a
  special molecule called the primary electron
  acceptor (no fluorescing).
• The energy of the electrons is used to produce
  ATP and NADPH in a two-part process called
  non-cyclic electron flow.

6
Steps 1. Photoexcitation

• A photon of light strikes the antenna complex of
  PII and PI
• The energy is passed around the antenna pigments
  until it excites an electron of P680 / P700.

7

• Noncyclic flow begins at PII
• A redox reaction transfers the excited electrons
  from P680 to the primary electron acceptor
  (pheophytin)
• Therefore Chlorophyll a is oxidized and the
  primary acceptor is reduced (redox!)

8
2. Electron Transport i.

• .

• From the primary electron acceptor (pheophytin),
  the electrons travel by redox through a series of
  membrane bound electron carriers (cytochrome
  complexes, aka an ETC)

9
Electron Transport ii.

• They power a proton pump called the Q cycle.
• Protons are pumped from the stroma into the
  thylakoid lumen creating a proton gradient.
• (High concentration inside thylakoid and low
  outside).

10
Electron Transport iii.

• At the end of the ETC the electrons from PII are
  transferred to PI (to replace the electrons it
  loses...next)

11
iv.

• At PI
• The excited electrons from P700 pass to an
  electron acceptor (ferredoxin (Fd)).
• From Fd they move through a short ETC to the
  enzyme NADP reductase.
• The enzyme uses two electrons and two protons
  from the stroma to reduce NADP to NADPH.

12
v.

• The PII electrons are also replaced
• A Z protein splits water into oxygen, 2 hydrogen
  ions and 2 electrons.
• The electrons replace the missing electrons from
  P680.
• Oxygen leaves as a waste product
• Protons stay in the thylakoid lumen

13
3. Photophosphorylation

• A proton gradient was set up in PII. There is a
  high concentration of H in the lumen.
• Protons move through an ATPase along the proton
  gradient from the thylakoid lumen into the
  stroma. ATP is generated.
• This process is called photophosphorylation since
  light creates the proton gradient.

14
Summary of the Light Reactions
The ATP and NADPH go on to the Light Independent
reactions...the Calvin Cycle
15
CYCLIC ELECTRON FLOW

• In some cases (low O2, low levels of NADP, low
  ATP to NADPH ratio) electrons take a cyclic
  pathway instead to increase ATP production.
• Only PI is used. P700 loses its electron pair to
  ferredoxin (Fd) but then electrons go through the
  Q cycle (ETC of PII) and back to P700.
• This generates a proton gradient for ATP
  synthesis, but does not release electrons to
  generate NADPH.

• Plants cycle back and forth through cyclic and
  non-cyclic to maintain adequate levels of both
  ATP and NADPH.
