UKIRT Infrared Deep Sky Survey

1

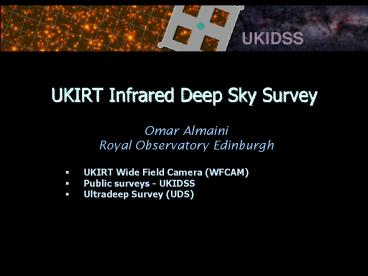

UKIRT Infrared Deep Sky Survey
Omar Almaini Royal Observatory Edinburgh

• UKIRT Wide Field Camera (WFCAM)
• Public surveys - UKIDSS
• Ultradeep Survey (UDS)

2

• Near infrared camera for UKIRT
• Construction at ATC, Edinburgh
• Widest IR field ever attempted
• Delivery to Hawaii March 04
• Plan to undertake public surveys
• using 50 of UKIRT time
• - but there will be open time!

Project Scientist Mark Casali
3
IR detectors

• 4 Rockwell Hawaii-II devices
• HgCdTe hybrids
• J, H, K (Y, Z)
• 2048 x 2048 18 ?m pixels
• detector packaging prevents close packing - 90
  is optimum if optics can be achieved

4
The Pixel Scale

• Competing requirements
• Survey Speed big pixels
• Resolution, point source sensitivity small
  pixels
• ? Compromise using 0.4" pixels
  MICROSTEPPING

5
Footprint on the Sky
ISAC (VLT)
UFTI (UKIRT)
WFCAM
WFIRC (du Pont)
0.66 deg
6
Focal Plane configuration

• 90 spacing of 4 detectors
• four exposures give filled 0.88 square (0.77 sq.
  )
• diameter of field required 0.93 (151 mm)

7
Survey Performance

• The minimum WFCAM standard tile
• 4 microsteps (10 sec per stare)
• 4 macrosteps
• ? 0.77 sq. deg. in t 211 sec
• K18.4 H18.9 J20.0
• 0.77 sq. deg. in t 4 hours
• K20.7 H21.2 J22.3

8
Current status
Integration and testing complete Cryostat temp to
spec Detectors electronics in place Good q.e.
gt 60 in z Y J Two outstanding components I.
Tertiary mirror ii. Corrector plate NEW -
both delivered Dec 2003 (under testing)
9
The WFCAM Cryostat
Two outstanding optical components Integration
and testing complete Cryostat temp to
spec Detectors electronics in place Good q.e.
60 in z Y J
10
Footprint on the Sky
ISAC (VLT)
UFTI (UKIRT)
WFCAM
WFIRC (du Pont)
0.66 deg
11

• Small projects wont fully exploit the
  capabilities
• Consortium formed to propose a very large public
  survey
• We proposed 50 of all UKIRT time for 7 years
• "UKIRT infra-red deep sky survey
• Final approval granted (2 year roller)
• Immediately public to ESO community
• World public 18 months after observation

UKIDSS
12
The UKIDSS Consortium

• Chair Andy Lawrence
• Survey Scientist Steve Warren
• Survey design heads Almaini, Edge, Hambly,
• Jameson, Lucas
• 50 others within ESO
• Subaru FMOS team

"UKIRT infra-red deep sky survey
UKIDSS
13
wedding cake strategy

• five year plan 2004-2009

Ultradeep Survey K23, 0.8 sq. deg
The Deep Survey K21, 30 sq. deg
Galactic Plane Survey K19, b /- 5 deg
Large Area Survey K18.4, 4000 sq. deg
Galactic Cluster Survey K18.4, 1600 sq. deg
14
Large Area Survey (4000 sq deg) SDSS K 18.4 H 18.8 J 20.0 Y 20.5
Deep Extragalactic Survey (30 sq deg) Lockman Hole XMM-LSS ELAIS N1 VIRMOS-4 K 21.0 H 22.0 J 22.5
Ultra Deep Survey (0.8 sq deg) SXDF (02hr 5) K 23.0 H 24.0 J 25.0
15
5 sigma, point source
At any depth UKIDSS will cover an area between 1
and 2 orders of mag larger than any existing or
planned near-ir survey
16
The UKIDSS Ultra-Deep Survey

• UDS
• 0.8 deg 2
• K23, H24 , J25
• z3 Large-scale structure
• 104 EROs
• LF and clustering of zgt2 massive galaxies

17
The UKIDSS Ultra-Deep Survey

• UDS
• 0.8 deg 2
• K23, H24 , J25
• z3 Large-scale structure
• 104 EROs
• LF and clustering of zgt2 massive galaxies

FIRES (Labbe et al. 2002)
18
The formation of massive spheroids
How many massive galaxies in place at zgt2 ?? A
fundamental test of galaxy formation theories.

• e.g. how many galaxies in place more massive
  than present day 2L ellipticals at 2ltzlt4?
• Passive evolution models 1000 deg-2
• Hierarchical Lambda CDM 100 deg-2

Requires depth (Kgt22) and area (1sq deg)
z1 c.f. ERO studies at z1.5 Daddi
et al. 2001, Smith et al. 2002, Roche et al. 2002
19
Predicted IR colours vs redshift
20
B27.5, R27.5, i27.2, z26.3
RA 02 h Dec 5 deg
21
(No Transcript)
22
B27.5, R27.5, i27.2, z26.3
23
82 sq. arcmin (now 160) 29 gt 3.0 sigma 13 gt
3.5 sigma 6 gt 4.0 sigma
24
Summary of data in UDS field
Optical Subaru Suprimecam VLT VIMOS HST? (c.f. COSMOS) B27.5 R27.5 i27.2 z26.3 u27.5
X-ray XMM-Newton (Watson) Chandra (Almaini/Page) 100ks 6x50ks ?
Mid/FIR SIRTF SWIRE (Lonsdale) GO (Simpson) 3.6-160 ?m (22 AB at 3.6?m)
Mm/Sub-mm SCUBA (SHADES Dunlop) BLAST 8mJy _at_850 250, 350, 500
Radio VLA (A,B,C Array) (Rawlings, Simpson et al.) 5? 50 ?Jy
Proposed/in prep.
25
UDS - Plans For Year One

• K 22.5 0.8 sq deg
• (best 60 seeing)
• J 23.5 0.8 sq deg
• (best 70 seeing)

26
Early science from UDS?

• Space density and clustering
• of z3 massive galaxies (gtL)
• (select e.g. using J-Kgt2)
• can we construct a mass function of galaxies as a
  fn
• of redshift?
• etc

FIRES (Labbe et al. 2002)
27

• WFCAM 0.2 sq deg IR field
• Delivery to Hawaii May 2004
• Plan to undertake public surveys
• using 50 of UKIRT time

UKIDSS
www.ukidss.org
28

END
29
Predictions of passive evolution

K-z predictions for L ellipticals (full
aperture magnitudes)
30
UKIDSS overview
LAS DXS UDS GPS GCS
31
UKIDSS overview2-year plan
LAS DXS UDS GPS GCS
