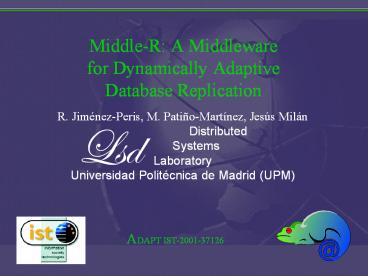

Middle-R: A Middleware for Dynamically Adaptive Database Replication

1
Middle-R A Middlewarefor Dynamically
AdaptiveDatabase Replication

• R. Jiménez-Peris, M. Patiño-Martínez, Jesús Milán
• Distributed
• Systems
• Laboratory
• Universidad Politécnica de Madrid (UPM)

Lsd
2
Symmetric vs. Asymmetric Processing

• Transactions in a replicated system can be
  processed either
• Symmetrically, that means, that all replicas
  process the whole transaction.
• This approach can only scale by introducing
  queries in the workload.
• Asymmetrically, that means, that one replica
  process the transaction and the other replicas
  just apply the resulting updates.
• This approach can scale depending the ratio
  between the cost of executing the whole
  transaction and the cost of just applying the
  updates.

3
Scalability of Symmetric Systems
w 1
4
Scalability of Asymmetric Systems
Asymmetric System

• The transaction is fully executed at its master
  site.
• Non-master sites only apply the updates.
• This approach leaves some spare computing power
• that enables the scalability

5
Comparing the Scalability
6
Taxonomy of Eager Database Replication

• White box. Modifying the database engine
  (Betinnas PostgresR VLDB00,TODS00).
• It can use either symmetric or asymmetric
  processing.
• Black box. At the middleware level without
  assuming anything from the database (Yair Amir
  ICDCS02).
• Inherently symmetric approach.
• Transactions are executed sequentially by all
  replicas.
• Gray box. At the middleware level based on the
  get/set updates services (our approach
  ICDCS02).
• It can use symmetric processing.
• It can also use asymmetric processing provided
  two services from the database to get/set updates
  of a transaction. This the approach we have taken.

7
Assumptions in Middle-R

• Each site has the entire database (no partial
  replication).
• Read one write all available.
• We work on a LAN.
• Virtually synchronous group communication
  available.
• The underlying database provides two basic
  services (i.e. similar to the Corba ones)
• get state returns a list of the physical updates
  performed by a transaction,
• set state applies the physical updates of a
  transaction at a site.
• Our approach exploits the application semantics
  we assume that the database is partitioned in
  some arbitrary way and that it is known which
  data partitions are going to be accessed by a
  transaction.
• This allows us to execute transactions from
  different partitions in parallel. Transactions
  spanning several partitions are also considered.

8
Protocol Overview Disc00
Client
Middleware layer
Database layer
9
Integrating the Middleware with the Application
Server

• JBoss accesses databases through JDBC.
• In order to integrate the middleware with JBoss
  it will be necessary to develop a JDBC driver.
• This JDBC driver will access the middleware by
  multicasting requests to the middleware instances
  at each site.

10
Integrating the Middleware with the Application
Server
JBoss
JBoss
JBoss
JDBC Driver
JDBC Driver
JDBC Driver
Group Communication Bus
Middle-R
Middle-R
Middle-R
Middle-R
DB
DB
DB
DB
11
Integrating the Middlewarewith the Application
Server

• If JBoss is replicated, some issues should be
  tackled with
• Independently of the kind of replication in
  JBoss, duplicated requests might reach the
  replicated database.
• Active replication provokes the duplication of
  every request.
• Other kinds of replication strategies might
  generate duplicate requests upon fail-over (i.e.,
  requests done by the failed primary might be
  resubmitted by the new primary).
• The middleware imposes the requirement to
  identify duplicate requests identically.
• The middleware, provided the above guarantee,
  will enforce the removal of duplicate requests.

12
Automatic DB partitioning

• Middle-R exploits application semantics, that is,
  it requires to partition the DB in some arbitrary
  way and know in advance which partitions each
  transaction is going access.
• In our previous work, these partitioning was
  performed by the programmer.
• For each stored procedure accessing the DB, a
  function was provided that taking the parameters
  of the invocation determined the partitions that
  would be accessed by the stored procedure
  invocation.
• This is a limitation of the previous approach
  that has to be overcome in Adapt.
• This DB partitioning should transparent to users
  and therefore automatically performed on a
  partition per table basis (at least).

13
Automatic DB Partitioning

• The second issue is how to know in advance which
  partitions a particular transaction is going to
  access.
• Our new approach will analyze on-the-fly the
  submitted SQL statements to determine which
  partitions it will access.

14
DB Interaction Model

• Our previous work assumed that each transaction
  was submitted in a single message to the
  middleware.
• This model was suitable for working for stored
  procedures.
• However, this interaction model does not match
  with the one adopted by JDBC.
• Under JDBC a transaction might span an arbitrary
  number of requests.
• Under JDBC a transaction might be distributed, so
  the XA interface should be supported for
  distributed atomic commit.
• For this reason, we are extending the underlying
  replication protocol to deal with transactions
  spanning multiple messages.

15
Dynamic Adaptability

• The following dynamic adaptability properties are
  considered
• Online recovery. Whilst a new (or failed) replica
  is being recovered, the system continues its
  regular processing without disruption (SRDS02
  approach that extend ideas from DSN01 to the
  middleware context).
• Load balancing. The masters of the different
  partitions are reassigned to balance the load
  dynamically.
• Admission control. Depending on the workload the
  optimal number of transactions active in the
  system changes. A limit of active transactions is
  dynamically adapted to reach the maximum
  throughput for each workload.

16
Dynamic Adaptability Online Recovery SRDS02

• Recovery is performed on a per-partition basis.
• Recovery is not performed during the state
  transfer associated to the view change to prevent
  the blocking of regular requests.
• Once a partition is recovered at a recovering
  replica, it can start processing requests on that
  partition although the other partitions are not
  recovered yet.
• Recovery is flexible to enable load balancing
  policies to take into account the load of
  recovery
• The recovery can use one or more recoverers.
• Each recoverer can recover one or more partitions.

17
Dynamic Adaptability Online Recovery

• Replicas might recover in a cascading fashion.
• The online recovery protocol deals efficiently
  with cascading recoveries.
• Basically, it prevent redundancies in the
  recovery process as follows
• A replica that starts recovery, whilst the
  recovery of another replica is underway, is not
  delayed till the whole recovery completes.
• Neither a new recovery is started in parallel
  (yielding redundant recoveries).
• Instead, this replica joins the recovery process
  with the next partition to be recovered.
• In this way, cascading recovering replicas share
  the recovery of common partitions.

18
Dynamic Adaptability Load Balancing

• The middleware approach has the advantage that
  every replica knows without any additional
  information the load of each other replica.
• This allows to achieve load balancing with very
  little overhead.
• One of the main difficulties of load balancing is
  to determine the current load of each replica.
• We are currently modeling the behavior of the DB
  to be able to determine dynamically the current
  load of each replica.
• These models will enable the middleware to
  determine which replicas become saturated, so its
  load can be redistributed.
• The load is redistributed by reducing the number
  of partitions that are mastered by an overloaded
  replica.

19
Dynamic AdaptabilityLoad Balancing during
Online Recovery

• The load balancing will also control the online
  recovery to adapt it to the load conditions.
• When the system load is low it will increase the
  resources devoted to recovery to accelerate it
  taking advantage of the spare computing
  resources.
• When the system load increases it will
  dynamically decrease the resources devoted to
  recovery to cope with the new load.

20
Dynamic Adaptability Admission Control

• The maximum throughput for a workload is reached
  with a given number of concurrent transactions in
  the system.
• Once this threshold is exceeded the DB begins to
  thrash.
• This threshold is different for each workload so
  it needs to be dynamically adapted to achieve the
  maximum throughput for the changing workload.
• The middleware has a pool of connections with the
  DB, and it can control the transaction admission
  to attain the optimal degree of concurrency.
• We are developing behavior models that will
  enable us to find dynamically the thrashing point
  and adapt dynamically the threshold in the
  admission control.

21
Wide Area Replication

• The underlying protocols in the middleware are
  amenable to be used in a WAN.
• We are currently studying which new requirements
  are needed in a WAN to find problems that might
  require changes in the protocols.
• Replication across a WAN help to survive
  catastrophic failures and it is also needed by
  many multinational companies with branches
  spanning different countries.
• For the former scenario we contemplate a replica
  at each geographic location.
• For the latter scenario we contemplate a cluster
  at each geographic location.

22
Partial Replication

• Scalability in the middleware, although good, is
  limited due to the overhead induced by
  propagating the updates to all the replicas (see
  SRDS01 for an analytical model determining the
  precise scalability of the approach).
• This limitation can be overcome by means of
  partial replication.
• In this way, each partition can be dynamically
  replicated to the optimal level.
• However, partial replication introduces new
  complications such as queries spanning multiple
  partitions that cannot be performed on a replica
  that do not hold a copy of all the accessed
  partitions.

23
Conclusions

• Extensions to our previous work and the JDBC
  driver will enable the use of our middleware
  approach to provide dynamically adaptable DB
  replication for JBoss.
• The flexibility of the middleware approach enable
  us to contribute on different issues regarding
  dynamic adaptability such as online recovery,
  dynamic admission control, dynamic load
  balancing, changing dynamically the degree of
  partial replication, etc.

24
Optimistic Delivery KPAS99
a) Replication protocol with non-optimistic total
ordered multicast
Total order MC of the transaction
Execution of transaction
Latency for a transaction
time
b) Replication protocol with optimistic total
ordered multicast
Opt-delivery
Execution of transaction
Totally ordered- delivery
Total order MC of the transaction
time
Latency for a transaction
25
Advantages of optimistic delivery

• For the optimism to create problems two things
  must happen at the same time
• Messages get out of order (unlikely in a LAN).
• The corresponding transactions conflict.
• The resulting probability is very low and we can
  make it even lower (transaction reordering at the
  primary).
• Cost of group communication minimized.

26
Experimental set up

• Database PostgreSQL.
• Group communication Ensemble.
• Network 100 Mbit Ethernet.
• 15 database sites (each SUN Ultra 5, Solaris).
• Two kinds of transactions were used in the
  workload
• Queries (only reads).
• Pure updates (only writes).

27
Experiments
The dangers of replication none of these
statements is true in conventional eager
replication protocols.

• 1 using replication does not make the system
  worse.
• 2 adding more replicas increases the throughput
  of the system.
• 3 the increase in throughput does not affect
  the response time.
• 4 acceptable overhead in worst case scenarios.

28
Comparison with Distributed Locking
Load 5 tps
29
2. Throughput Scalability
30
3. Response Time Analysis
31
3. Response Time Analysis
32
3. Response Time Analysis
33
4. Coordination overhead
34
Conclusions

• Consistent replication can be implemented at the
  middleware level.
• Achieving efficiency requires to understand the
  dangers of replication
• Only one message per transaction
• Asymmetric system
• Reduce communication latency
• Reduce abort rates
• Our system demonstrates different ways to address
  all of these problems.

35
Ongoing work

• We are using the middleware to implement
  replication in object containers (e.g. J2EE,
  Corba).
• Tests are underway to use the system to implement
  replication across the Internet.
• Porting system to Spread Amir et al..
• Load balancing for web servers based on
  replicated databases.
• Online recovery and dynamic system
  reconfiguration
• DSN 2001 Kemme, Bartoli, Babaoglu.
• SRDS 2002 Jimenez, Patiño, Alonso.

36
Analytical vs. Empirical Measures
37
How can the middleware performwith faster
databases?

• The 1 upd transaction took 10 ms to be executed,
  whilst an 8 upd transaction took 55 ms.
• This means that in a faster database for
  transactions lasting within these ranges we can
  obtain similar scalabilities (till some
  bottleneck is reached, most likely group
  communication).
• The determinant factor of scalability is the
  ratio of the cost of executing a full transaction
  and applying its updates, but this factor,
  although can be reduced, will be always
  significant (in Postgres for 8 upd transactions
  it was 0.16 and for 1 upd transactions it was
  0.2).

38
Background

• Replication has been used for two different and
  exclusive purposes in transactional systems
• To increase availability (eager replication) by
  providing redundancy at the cost of throughput
  and scalability.
• To increase throughput and scalability by
  distributing the work among replicas (lazy
  replication) at the cost of consistency.
• We want both availability and performance.
• However, Gray in The Dangers of replication
  SIGMOD96 stated that eager replication could not
  scale.

39
Motivation

• Postgres-R KA00 showed how to combine database
  replication with group communication to implement
  a scalable solution within a database.
• We extended this work PJKA00 by exploring how
  to implement replication outside the database
• Protocol is provably correct.
• Could be implemented as middleware.
• It scales (e.g. adding more sites increases the
  capacity).
• In this talk we discuss the performance of such
  protocol as implemented on a cluster of computers
  connected through a LAN and show that it can be
  used in a wide range of applications.

40
Eager Data Replication

• There is a copy of the database at each site.
• Every replica can perform update transactions
  (update everywhere).
• Transaction updates must be propagated to the
  rest of the replicas.
• Queries (read only transactions) are executed at
  a single replica.

41
Understanding the Scalabilityof Data Replication
Symmetric System
Assume sites with a processing capacity of 4 tps
Each transaction executed by a site induces a
load of one transaction on each other site
The capacity of the system is at most the
capacity of a single site 4 tps
42
Asymmetric Systems

• In an asymmetric system the work performed by a
  replica consists of
• Local transactions, i.e., transactions submitted
  to the replica.
• Remote transactions, i.e., update transactions
  submitted to other replicas.

43
A Middleware Replication Layer
Queue Manager
Queue Manager
Communication Manager
Connection Manager
Communication Manager
Connection Manager
Replica Manager X
Replica Manager Y
PostgreSQL
PostgreSQL
Group Communication
44
A Middleware Replication Layer

• The replication system has been implemented as a
  middleware layer that runs on top of
  off-the-shelf non-distributed databases or other
  data stores (e.g., an object container like
  Corba).
• This layer only requires two simple services from
  the underlying data repository
• get state returns a list of the physical updates
  performed by a transaction,
• set state applies the physical updates of a
  transaction at a replica.

45
Exp. 1 Comparison with Distributed Locking

• In this experiment we compared our system with a
  commercial database using distributed locking and
  eager replication to guarantee full consistency
  of the replicas.
• A small load of 5 transactions per second was
  used for this experiment.

46
Response Time Analysis

• The goal of this experiment is to show that
  transaction latency keeps stable with loads
  within the scalability interval.
• For each configuration and update rate, the load
  is increased until the response time degenerates.

47
Exp. 2 Throughput Scalability

• This experiment tested how the throughput of the
  system varies for an increasing number of
  replicas.
• In particular, we wanted to know the power of the
  cluster relative to a single site.

48
Measuring the Overhead

• The latency of short transactions is extremely
  sensitive to any overhead.
• The goal of this experiment is to measure how the
  response time was affected by the overhead
  introduced by the middleware layer.
• In this experiment the shortest update
  transaction was used a transaction with a single
  update.

49
Motivation and background

• Eager replication is the text book approach to
  achieve availability
• Yet, very few database products provide
  consistent replication.
• The reasons were explained by Gray in The
  Dangers of replication SIGMOD96.

• Postgres-R KA00 showed how to avoid these
  dangers and implement eager replication within a
  DB.
• Combines transaction processing and group
  communication.
• Uses asymmetric processing
• Showed how to embed these techniques in a real
  database engine.

50
Motivation and Background

• A subsequent approach explored scalable eager DB
  replication outside the DB, at the middleware
  level Disc00,ICDCS02.
• Experiments showed that it was possible to
  achieve replication at the middleware level with
  a scalability close to the one achieved within
  the database.

51
Two Crucial Issues

• Processing should be asymmetric
• Otherwise it does not scale
• but difficult to do outside the database
• Avoid the latency introduced by group
  communication (especially for large groups)
• Otherwise the response time suffers
• but we need the group communication semantics
