Title: Wireless in the Warehouse

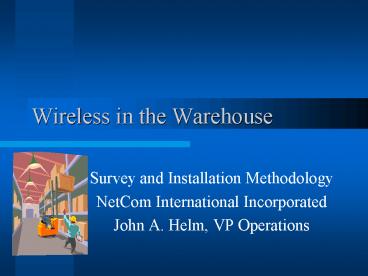

1
Wireless in the Warehouse
  • Survey and Installation Methodology
  • NetCom International Incorporated
  • John A. Helm, VP Operations

2
NetCom International Inc.
  • Doing data communications since 1986
  • Design and Installation Services only
    organization dedicated to quality of service
  • Over 7000 Wireless Site Surveys and Installations
  • Single source solution encompassing cable,
    electrical and equipment staging departments
  • Key deployment of Field Engineers in major cities
    optimizes NetCom Internationals coverage range
    nationally.
  • Learn more at WWW.NETCOMITL.COM

3
Wireless Warehousing
  • Warehouse environments require mobility and
    repetitive actions
  • Many elements such as redundant functions and
    expansive space can slow overall operation
    performance
  • Todays wireless network can streamline these
    functions and make up for that space by allowing
    the data entry to go where the work is being
    performed

4
Wireless Warehouse Project Requirements
  • Collect pre-site information
  • Critical information determining the type of
    equipment and survey to be conducted
  • Site survey
  • A proper site survey should be conducted for any
    facility that would require greater than one
    access point
  • Installation
  • An improper installation could result in serious
    performance problems, make sure the installation
    is done by certified contractors for all aspects
  • Ensure all materials have been ordered and
    delivered prior to this step

5
Pre-Site Survey
  • A form of data collection
  • Information that will dictate how or where the
    survey is conducted
  • This helps to determine overall project
    requirements such as
  • Throughput needed
  • Redundancy and overlap
  • Number of users
  • Type of applications which dictate performance
  • Survey restrictions and special needs
  • See an example on the Contact Us web page at
    WWW.NETCOMITL.COM

FOR MORE INFO...
6
Site Survey
  • The only way to guarantee a successful
    installation is to have a full site survey or
    engineering design plan for the facility
  • Installation without a site survey can lead to
    serious network problems

7
What You Need
  • Test Equipment
  • Antennas Cables
  • Ladder or Lift
  • Safety Equipment
  • Marking Materials
  • Site Drawing
  • Meet with MIS
  • Conduct a Walk-through of the Site

8
Test Equipment
  • Selection of antennas
  • AP model that will be installed
  • Wireless Laptop or client device used
  • Spectrum Analyzer

9
Antennas Cables
  • Always test with the antenna to be installed
  • Any antenna extension cables needed for the
    installation should be used for the Site Survey
    too

10
Dipole Omni Directional Whip
Ā
  • The Dipole Omni-Directional Whip
  • Access Points and PC boards are usually installed
    with this antenna.
  • Polarization Vertical
  • Gain 2.14dBi

11
Omni-Directional Antenna
  • The High-Gain Omni-Directional
  • This antenna covers a significantly greater area
    than can be covered with the unity-gain
    Omni-directional type. Access Points are usually
    installed with high-gain antennas.
  • Polarization Vertical
  • Gain 5.2 and 12dBi

12
Hemispherical Patch Antenna
  • The Patch
  • This is a directional antenna with a very wide
    pattern. It is sometimes easier to mount the
    patch than any other type antenna.
  • Gain 6dBi and 8.5dBi
  • Frequency 2.4 GHz

13
High Gain Yagi
  • This is a very directional antenna with a beam
    width of only 30 degrees. When the high-gain
    Yagi is used in a facility with many objects
    surrounding it, the antenna can provide long
    directional coverage. This type of Yagi is
    enclosed in a plastic casing.
  • Gain 13.5dBi
  • Frequency 2.4 GHz

14
Access Point
  • Always use an Access Point (AP) that is capable
    of the results desired
  • The device used should replicate the following
    needs by the end user
  • Frequency range
  • Power out
  • Desired data rates
  • Specific form factor if needed

15
Laptop or Client Device
  • Any device used for testing the connection
    between the AP and Client device must be able to
    run diagnostic utilities to test the link
  • Laptops are normally used however sometimes
    client devices are specified such as pen based
    PCs

16
Other Test Tools
  • A Spectrum Analyzer is sometimes used to locate
    sources of Radio Frequency Interference (RFI)
  • A handheld Frequency Counter can provide a quick
    reference to specific emissions in a close area
  • An Electromagnetic Field Probe can detect local
    sources of Electro-Magnetic Interference (EMI)

17
Site Drawing
  • A set of drawings or prints are needed to
    annotate
  • AP locations
  • Coverage areas
  • Cable and electrical requirements
  • Sources of interference
  • A set of colored pens, ruler and of course
    something to mark the locations in the facility
    such as flagging tape are also needed

18
Site Walkthrough
  • A walkthrough is necessary for
  • Defining coverage areas desired
  • Identifying environmental restrictions
  • Familiarizing with the facility to develop a game
    plan for the Site Survey

19
Think of Rate vs. Range
2 Mbps FHSS
2 Mbps DSSS 1 Mbps FHSS
5.5 Mbps DSSS
11 Mbps DSSS
20
Site Survey
21
Facility Layout
NetCom International Inc.
22
Continuing the Survey
23
Surveying Dense Stock
24
Continuing Dense Stock
25
Site Survey Utilities
26
Site Survey Report
  • A good site survey report should include specific
    information
  • Contact information
  • AP locations and Antennas used
  • Configuration notes
  • Cable and/or power requirements
  • Installation notes
  • Diagrams

27
Installation of Equipment
  • Install Cabling and Electrical needs
  • Inventory the equipment on site
  • Configure access points
  • Install access points, antennas and antenna
    extension cables if needed
  • Connect all devices, power on and do a
    certification test to verify coverage

28
Cabling and Electrical
Data
Electrical
NetCom International Inc.
29
Inventory and Configuration
Be sure to connect Antennas before powering on!
30
Equipment Installation
  • Antennas must be mounted according to
    polarization
  • Access Points will be mounted to
  • Wall
  • Backboard
  • Inside an enclosure
  • All cable and wire will be service looped
    following the guidelines discussed on the cabling
    and electrical slide

31
Connect and Test
  • Be sure to properly connect all devices then
    apply power
  • Use the Cisco Site Survey utility to verify the
    installed coverage is right
  • Check roaming
  • Check data rate
  • Check quality
  • Check strength

32
Showing Off!
  • The person on the left is wondering why he didnt
    get a superior wireless capable device like his
    co-worker did.

33
Application Stories
  • Walk in Freezers
  • This can be an anti-RF environment when all metal
    construction is used.
  • APs are usually mounted outside with the antenna
    inside or all is mounted inside the freezer in a
    heated NEMA
  • Applications
  • Many warehouse apps are simple barcode scanning
    that requires little throughput.

34
Application Stories cont.
  • Many manufacturing and warehouse sites have
    remote buildings that need network capability
  • Bypass a phone charge and factor in a wireless
    bridge
  • Make installations robust to the environment
  • Place devices out of the way
  • Never jeopardize safety to yourself or others to
    do the workBe Careful!

35
Contact
  • Reference your web site for Cisco Wireless
    products
  • www.Cisco.com
  • John A. Helm
  • VP Operations
  • NetCom International Inc.
  • 3675 Kennesaw N. Ind. Pkwy.
  • Kennesaw, GA 30144
  • Ph 770-919-0048
  • Email jhelm_at_netcomitl.com
  • View our Video of NetCom Int.
  • You may reference our website for additional help
    on Site Surveys and Installations
  • www.netcomitl.com
