Title: Introduction to Forensic Science

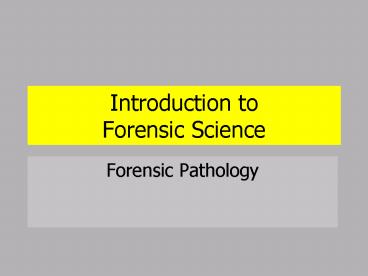

1Introduction to Forensic Science
2The autopsy provides forensic evidence.
- Forensic Pathology is the branch of medicine
which analyses victims of crime scenes medically. - They are the last physician for the deceased and
their role is to discover and interpret the
evidence left during the autopsy.
3Forensic Pathology
- Pathology, the study of disease, is the broadest
of the medical specialties. - Pathologists dont treat patients nor do surgery
themselves- they consult with primary care and
specialist physicians. - Forensic Pathologist is a medical doctor with
10-15 post secondary training.
4Anatomic Pathology
- Diagnosis of disease and injury by the gross and
microscopic examination of tissue specimens - Biopsies
- Organs
- pap smears
- bone marrow aspirates
- blood smears.
- The anatomic pathologist is also the one who
performs autopsies.
5Clinical Pathology
- Clinical pathology deals with the medical
laboratory where the pathologist serves as
medical director. - The pathologist bears ultimate responsibility for
medical laboratory test results.
6Role of the Pathologist
- Determine type of wound
- Measure the dimensions (length, width, depth)
- Position relative to anatomical landmarks
- Determine initial location if wound involves
cutting, slashing, etc. - Determine height of victim, other contributing
factors like heart problems.
7Analysis of Wounds
- Not every crime victim is murdered.
- Pathologists can contribute to proof of the
severity of a crime or that a crime actually
occurred in some cases for a living victim. - Some victims are too young to testify and some
are too severely injured to remember the crime. - Wounds provide evidence of the crime.
8Wound Categories
- Bruises (or contusions)
- Abrasions (or grazes or scratches)
- Lacerations
- Incised wounds
- Puncture (or stab) wounds
- Gunshot wounds
9Gunshot Wounds
- This will be discussed with ballistics talk
10Bruises
- A bruise is "a hemorrhage into tissues produced
by the escape of blood from blood vessels". - Bruises may be found in the skin, muscles, and
internal organs.
11Bruises
- Bruises are typically produced by a blunt force
impact, such as a blow or a fall. - They may also be produced by squeezing or
pinching, where the force is applied gradually
and then maintained. - Hickies or "love-bites" are superficial bruises.
12Natural Bruises
- Bruises may occur in a variety of natural
diseases in which there is an abnormality of the
clotting mechanism of the blood, e.g. scurvy
(vitamin C deficiency), leukemia, alcoholic liver
disease. - This bruising is "spontaneous" because the injury
which produces it is so insignificant as to
typically pass unnoticed. - The presence of such natural disease will
exaggerate the bruising effects of any trauma.
13Problems with Skin Bruises
- Delayed appearance
- Ageing (relative)
- Site of Trauma
- Shape of object
- Degree of force
- Post-mortem bruises
- Post-mortem lividity
14Classic Causes of Bruises
- Finger pad bruises battered babies, manual
strangulation - Different ages repeated assaults
- Shoulders and arms forceful restraint
- Wrists and ankles dragging
- Inner thighs forceful intercourse
- Chest resuscitation
- Bruising is uncommon in Suicides
15Bruises
- The extent of bruising is inversely proportional
to the sharpness of the impacting object. - Bruises may be associated with other blunt force
injuries such as abrasions and lacerations. - As a general rule bruising is not associated with
incised wounds or stab wounds where there is a
free flow of blood from the cut blood vessels
rather than leaking into the tissues.
16Site of Trauma
- In contrast with abrasions, the location of a
bruise does not necessarily reflect the precise
point of injury. - Leaking blood will follow the path of least
resistance and gravity.
17Delayed Appearance
- Deep bruises may have delayed appearance at the
skin surface. Deep bruises may require as long as
12 or 24 hours to become apparent, and some may
never do so - The more superficial the source of bleeding, the
sooner the discoloration will be seen on the skin
surface. - In a living victim, a second examination in one
or two days may show bruising. - In the dead, a further examination one or two
days after the original autopsy may show bruises
which were not previously seen and reveal
previously faint bruises.
18Autopsy and Bruising
- Bruising in Deep Tissue
- 1. Possibly life-threatening
- 2. Sometimes no external injury
- 3. Revealed in autopsy
- Documenting Bruising
- 1. Photography
- 2. Notes
19Degree of Force
- The size of a bruise is an unreliable indicator
of the degree of force causing it. - However, a heavy impact is likely to produce a
large bruise and a light impact to produce a
small bruise. - If bruising is slight, it is reasonable to assume
that the degree of violence was slight.
20Determining Degree of Force in Bruise Patterns
- Location
- Some areas of the body bruise more easily than
others. The face bruises more readily than the
hands. - Bruising occurs more readily in loose tissues and
where there is a large amount of subcutaneous fat - Bruising is less apparent where the skin is
strongly supported by fibrous tissue or if the
muscle tone is good.
21Determining Degree of Force in Bruise Patterns
- Age
- Infants and the elderly tend to bruise more
easily than young and middle aged adults. - Infants have loose and delicate skin, and the
abundant subcutaneous fat. - Elderly have degenerative changes in the tissues
which support the small blood vessels of the skin
and subcutaneous tissues. - Gender
- Women bruise more easily than men because they
have more subcutaneous fat and this is
particularly true of obese women. - Natural Disease
- Skin color
22Causitive Object
- The shape of the bruise is most likely to reflect
the shape of the causative object when the object
is small and hard and death occurs soon after
injury
23Causitive Object
- A doughnut bruise is produced by an object with a
rounded contour (e.g. baseball). - Two parallel linear bruises result from a blow
with a rod or stick - Bruises can follow rounded contours if they are
caused by a flexible object like a lash
24Causitive Object
- Bruises produced by fingerpads as a result of
gripping are usually larger than the fingerpads
themselves. - The pattern and location suggests the mechanism
of causation - On the neck in throttling
- On the upper arms in restraint.
- Such bruises are referred to as patterned.
25Aging of Bruises
- Color changes a bruise goes through can give a
rough estimate of time of injury - Colors result from breakdown of hemoglobin from
tissues - Dark blue/purple (1-18 hours)
- Blue/brown (1 to 2days)
- Green ( 2 to 3 days)
- Yellow (3 to 7 days)
- This rate assumes person is healthy, however.
26Aging Bruises
- While accurate estimation of the age of a single
bruise is not possible, a fresh bruise can be
distinguished easily from one which is several
days old. - Establishing that bruises are of different ages
may be of medical importance where there is an
allegation of repeated assaults - Child abuse
- Wife beating
- Where pre-existing injuries need to be
distinguished from those produced by a recent
assault like a chronic alcoholic who was
assaulted.
27Post Mortem Bruises
- Bruising is a phenomenon of living tissue- since
it usually requires circulating blood to push the
blood from the veins. - It isnt possible to tell bruises that occurred
causing death from those that occurred minutes
earlier. You can only say they occurred at or
about time of death.
28Post Mortem Bruises
- It requires considerable violence to produce a
bruise post mortem or after death. - These bruises are smaller relative to the degree
of force used. - Post mortem bruises are most readily produced in
areas of hypostasis (post mortem lividity, livor
mortis) or where tissues can be forcibly
compressed against bone. - A bruise can develop on the head after the body
is left lying on the back.
29Post Mortem Lividity (hypostasis, livor mortis)
- The settling, after death, of blood within the
blood vessels under the influence of gravity. - This results in a purplish discoloration of
parts of the body that are lower while sparing
areas of pressure contact - contact pallor. - The pattern and distribution of lividity
distinguishes it from bruising. - A body found on its back has livor mortis on the
dorsal (back) side with pale areas where the bone
contacted the floor.
30Decomposition
- Post mortem decomposition with its initial green
discoloration of the anterior abdominal wall is
readily distinguished from bruising. - Putrefactive lysis of blood cells within the
vessels and decompositional breakdown of the
vessel walls results in diffusion of lysed blood
into the adjacent tissues. - Existing bruises are enlarged by this process.
- Later, putrefactive hemolytic staining of tissue
may mask ante mortem bruising (e.g. in the neck
muscles in case of choking).
31Patterns of Injury
- Bruises to the knuckles of the hands, together
with bruises of the eyelids, bridge of the nose,
cheeks and lips, suggest a fist fight. - Bruising around the eyes (spectacle bruises) may
be produced by direct blows, but also commonly
result from a fracture of the base of the skull,
e.g. in vehicle collisions or gunshot wounds to
the head - They may also follow blunt impact to the forehead
producing jolting of the eyeballs in their
sockets with tearing of small orbital blood
vessels.
32Patterns of Injury
- Bruising of the genitalia and around the anus
suggests sexual assault. - Severe bruising of the genitalia, with or without
laceration, can be produced by kicks. - Counter-pressure bruising, with or without
abrasion, to the back, (shoulder blades, sacrum
and pelvis) suggests pressure against a firm
surface as in forceful restraint on the ground. - Similar bruising may be seen on boney prominences
of the front of the pelvis.
33Patterns of Injury
- In kicking assaults with the shod foot, bruises
are invariably associated with multiple abrasions
and lacerations. - Gangs, individuals without weapons
- The bruises and abrasions may be patterned by the
boot. - Bruising is typically extensive and targeted on
the face, neck, ears, groin, and kidney area. - Internal bruising is usually severe.
34Patterns of Injury
- Bruises are painful and therefore not commonly
self-inflicted extensive bruising creates a
presumption of assault. - Accidents generally are unforeseen and the
injuries they produce tend not to follow a
recognizable pattern. - Some places bruise easily accidentally though
shins and hips.
35Patterns of Injury
- Injuries in motor vehicle collisions almost
invariably include abrasions and lacerations as
well as bruises. - Patterns of injury may allow reconstruction of
incidents involving pedestrians or allow
distinction between driver and front seat
passenger.
36Participation Question
- Give me an example of forensic usefulness of
analysis of bruises.
37- Abrasions
- Friction injury removing skin or tissue
38Abrasions
- Side impact produces a moving abrasion
- Indicates direction.
- Trace material (e.g. grit).
- Direct impact produces an imprint abrasion
- Pattern of causative object.
- All abrasions reflect site of impact (in contrast
with bruises). - Assessment of age of abrasions is difficult.
- Post-mortem abrasions - Brown, leathery
39Incised Wounds (Cuts, Slashes, Stab)
- Stab wounds or puncture wounds are penetrating
injuries whose depth within the body is much
greater than the dimensions of the wound on the
body surface. - Breach of the full thickness of the skin due to
contact with a sharp edge.
40Stab Wounds
- Forensic Importance
- Reflects sharp edge, not weapon type
- No trace evidence
- Bleeds profusely
- Hemorrhage and air embolism
- They can be produced by any long thin object
which impacts the body with sufficient force to
penetrate. - The typical instrument is a knife, but any sharp
pointed, or keen-edged object will work.
41Stab Wounds Should be Described at Autopsy
- Site relative to local anatomical landmarks as
well as its distance from the midline and above
the heel (or below the crown of the head). - Shape and Size including the dimensions with the
wound edges closed back. - Direction (approximately) in three dimensions.
- Depth of the wound track at autopsy.
- Damage to tissues and organs along the wound
track. - Effects of damage described above.
42Stab Wounds Shape of Weapon
- A knife blade with a double edge will normally
produce a symmetrical elliptical wound with both
ends pointed, clean cut edges and without any
associated bruising or marginal abrasion. - A knife with a single-edged blade may show
relative blunting ("fish-tailing") of one end of
the entry slit. A single edged blade can produce
a wound with two pointed ends, mimicking an
injury from a double edged blade. - A bayonet, which has a ridge along the back of
the blade with a groove along each side, may
produce a slit like an elongated letter "T".
43Stab Wounds Shape of Weapon
- Stab wounds produced with relatively blunt
instruments such as pokers, closed scissors and
files, tend to bruise and scrape the wound
margin. - These blunter instruments also tend to lacerate,
as well as cleanly penetrate, the skin the
blunter the point of the instrument and the
thicker its shaft, the more likely is the entry
hole to become a ragged, often cross shaped
split. - Forensic Pathologist sometimes practices wound
type The Body Farm.
44Stab Wounds Degree of Force
- The most reliable estimate of blade width is made
from the deepest wound with the shortest skin
surface length. - It is easy to over-estimate the amount of force
required to produce a stab wound. - The depth of a wound is not generally an
indication of the degree of force used.
45Stab Wounds Degree of Force
- The most critical factor is the sharpness of the
point of the instrument relatively little force
is required to produce a stab wound provided a
knife with a sharp point. - After clothing, the skin offers the greatest
resistance to penetration once this is overcome,
then the blade easily cuts into deeper tissue.
46Stab Wounds Degree of Force
- The penetration of bone does imply a significant
degree of force. - The tip of the blade may break off when driven
into bone and should be recovered for matching
with the weapon. - In estimating the force exerted by an assailant,
consideration should be given to the possibility
of counter pressure by the victim, e.g. running
or falling forwards.
47Stab Wounds Length of Weapon
- The depth of the wound (the length of the wound
track, provides some indication of the length of
the stabbing instrument). - The wound track length may be less than the
length of the instrument if the weapon was not
thrust into the body to its full length. - The wound track can be longer than the knife if
there is force compressing tissues.
48Stab Wounds Clothing
- Cuts on the clothing should be noted and
correlated with injuries to the body. - More than one cut on the clothing may correspond
with a single injury to the body as a result of
folds in the clothing. - Cuts to the clothing may not exactly overlie
corresponding wounds to the body. - There may be stab or slash marks on the clothing
without corresponding injuries to the body, e.g.
"defense"-type slashes to the arms.
49Stab Wounds Clothing
- Blood flow patterns on the clothing may indicate
the position of the victim at the time of the
stabbing. - Blood drops on the tops of the shoes from a stab
to the chest in a victim standing upright. - Blood flow direction can change with movements of
the body. - Wound track can be indicated by undercutting and
beveling of the external wound. - Extrapolation from the direction of wound tracks
to an opinion on the relative positions of an
assailant and victim should be, since two
potentially moving objects are involved.
50Stab Wounds Cause of Death
- Most deaths from stab wounds are homicides.
- Homicidal stab wounds are usually multiple, since
most wounds leave the victim capable of some
resistance for a measurable time during which the
thrusts are repeated. - Single homicidal stabbings are often associated
with drugged, drunk, sleeping, or otherwise
partially incapacitated victims and are almost
always aimed at the heart.
51Stab Wounds Cause of Death
- Homicidal stab wounds to the chest are all likely
to be deep, penetrating the chest wall, and more
than one may be lethal. - Stabs in the back strongly suggest homicide.
- In cases of multiple scattered stabs, the larger
the number the greater the certainty of murder. - There is often a sexual motive to deaths with
this type of "over-kill".
52Defense Stab Wounds
- "Defense wounds" are the result of the immediate
and instinctive reaction of a victim to ward off
anticipated injuries and may be seen in both
homicidal and accidental deaths. - Defense wounds result from raising the arm to
ward off the attack or attempts to grasp the
weapon. - The resulting injuries may be stabs or slashes or
both.
53Defense Stab Wounds
- Attempts to grab the knife results in deep cuts
to the palm of the hand and the palm side of
fingers. - With the hand in a gripping position the palm
skin is loose and folded so that resultant cuts
appear irregular and ragged. - They may be duplicated by the thrust and
withdrawal of the weapon. - Penetration of the hand or arm is also a defense
wound. - The absence of defense wounds does not exclude
homicide since the victim may be incapable of
effective defense.
54Suicidal Stab Wounds
- Suicide by stabbing is distinctive. The wounds,
if multiple, have a location and direction
accessible to the victim and are typically
grouped in the "pit" of the stomach. - Use of one hand is indicated by a consistent
direction of penetration. - Multiple wound tracks extending from the same
slit in the skin reflects partial withdrawal of
the weapon and further thrusts (possibly trial
feelers), and suggests possible suicide.
55Suicidal Stab Wounds
- Typically a suicidal stabbing is to the bare skin
and the clothing may be removed or pulled aside
to effect this. - Defense wounds do not occur in suicide, although
the sharpness of a knife may be tested by running
the blade across the tips of the fingers. - Multiple scattered wounds weighs against suicide
unless there was serious mental illness.
56Suicidal Stab Wounds
- Fatalities from a single stab wound can be
difficult and such a wound may be homicidal,
suicidal, or accidental. - Autopsy findings should always be interpreted in
the light of information concerning the
circumstances and scene of death. - If the stab wound was inflicted during a fight
then the usual defense is that it was accidental,
the victim having ran or fallen on to the weapon. - The position and direction of the wound may help
resolve the issue.
57Stab vs Slash
- Stab wounds are deep and not wide.
- Slash wounds are wide and not deep.
58Penetrating Wounds (Punctures)
- Breach in full skin thickness and depth is
greater than length - Long, thin, sharp or blunt object.
- If sharp object then equals "stab wound".
59Lacerations (Tears, Splits)
- Splitting of the skin by the direct crushing of
blunt trauma. - Typically over bone, e.g. scalp, eyebrow,
cheekbone.
60Lacerations
- Distinguished from incised wounds by
- Adjacent abrasion/bruise
- Ragged edge
- Tissue bridges in depth
- Forensic Importance
- Not related to object shape
- Trace evidence
- Relatively little blood loss (except scalp)
- Rarely suicidal
61Lacerations
- Typical Examples
- Stellate pattern from poker end
- Circles/crescents from hammer
- Y-shaped from metal rod
- Inside lips from blow to mouth.
- Stretching lacerations in vehicular accidents.
62Bite Marks
- Double crescent of abrasions and bruises
- Early Examination, loss of definition
- Swab for saliva, photograph
- Comparative value
- Child abuse, sexual assault.
63Assault
- Any type of wound, combinations
- Scattered, multiple directions, uniform force
- Defense injuries
- Several potentially lethal
- Clothing
- Secondary injuries
64Order of Infliction
- Tentative or scattered first
- Fatal and grouped last
- Distant shots before close shots.
65Accidental
- Any area, single, clothing
- Defense injuries
- Secondary injuries
- Check history (suicide attempts, assaults)
66Blood Spatter
- Bruises and abrasions, none
- Lacerations, not much
- Incised and stab wounds, often profuse.
67Strangulation
- Strangulation implies pressure to the neck, and
deaths due to strangulation are therefore of
immense forensic importance. - It can be defined as a circumferential squeezing
of the neck that is independent of the
gravitational weight or suspension of the head. - Manual strangulation
- Ligature strangulation
- Choke holds
68Signs of Strangulation
- Obstruction of jugular veins with impaired venous
return to the heart, leading to cyanosis (blue
color), congestion (tissue swelling), and
petechiae. - Obstruction of carotid arteries.
- Stimulation of baroreceptors in the carotid
sinuses and carotid sheaths. - Elevation of larynx and tongue, closing the
oropharynx.
69Petechia
- Very small hemorrhages (ranging in size from a
pinpoint to a pinhead), which occur in tissues,
may be described as petechia, or petechial
hemorrhages (from the Italian petecchia, which
has the Latinized plural petechiae). - These hemorrhages may also be described as
punctate (from the Latin punctum, a point).
70(No Transcript)
71Manual Strangulation
- Usually caused by men against women, and rarely
against another man since a large disparity in
physical strength between the assailant and
victim is needed.
72Signs of Manual Strangulation
- Disc-like finger-tip bruises
- Abrasions
- Linear finger-nail scratches (from victim or
assailant) - Often limited signs of suffocation as fingers are
more likely to probe deeper neck structures and
cause reflex cardiac arrest
73Signs of Manual Strangulation
- Sustained pressure may cause congestion and
blueness of the tongue, pharynx and larynx - Hemorrhage under the skin of the neck and
bruising of the strap muscles - Damage to the larynx - particularly the superior
horns of the thyroid cartilage, and the greater
horns of the hyoid bone
74Ligature Strangulation
- Where a constricting band is tightened around the
neck, there is usually gross congestion, cyanosis
and petechiae in the face if the pressure is
maintained for more than about 20 seconds. - The ligature mark is a vital part of the
evidence, as it often reproduces the pattern and
dimensions of the ligature itself.
75Ligature Strangulation
- If the assailant has removed the ligature from
the scene, and is subsequently arrested, possible
ligatures found on the assailant or in his home
can be compared with the mark on the victim's
neck. - Some modern techniques involving computer imaging
are being developed to assist in this comparison
process. - A rising peak indicating a suspension point, is
seen in cases of hanging or suspension. - Victims may struggle less than manual
strangulation.
76Choke Holds
- These include the so-called 'carotid sleeper' and
'bar arm' choke holds that are sometimes used in
law-enforcement situations, although they are
increasingly being outlawed in many
jurisdictions. - There is often little or no external neck injury
visible, while hemorrhages in the strap muscles
can be more extensive and broader in nature. - If the bar arm hold has been of sufficient
strength, the airway may have been obstructed,
leading to 'air-hunger', and lead to violent
struggling on the part of the restrained person.
77Asphyxia
- Smothering - the covering of the mouth or nose
(or external occlusion) e.g. by a plastic bag or
in overlay deaths (may see abrasions etc in a
homicidal smothering if the victim could put up a
struggle) - Gagging - the tongue is pushed backwards and
upwards, and the gag becomes saturated with
saliva and mucus causing further obstruction. - Foreign body obstruction (those at risk being
children/ infants, the intoxicated and those with
neurological difficulties with swallowing etc) - Swelling of the airway lining (anaphylactic
hypersensitivity reactions, or thermal/ heat
injury).
78Carbon Monoxide
- Carbon monoxide poisoning is a form of asphyxia
that results when CO is breathed. - Poorly ventilated houses with faulty heaters,
housefires, and motor vehicle exhaust are the
most common sources. - Even small atmospheric concentrations of CO are
dangerous, because CO binds to hemoglobin 200
times more avidly than oxygen. - Drowsiness and headache occur at
carboxyhemoglobin concentrations between 10 and
20. - Levels from 20 to 30 can be fatal to persons
with pre-existing cardiac or respiratory disease.
- Levels above 30 to 40 can be fatal to anyone.
79Note the bright "cherry red" or bright pink
lividity to the hand.
80Drowning
- Drowning may not produce extensive findings.
- In 10 to 15 of cases, intense laryngospasm may
even prevent water from entering the lungs. - In some cases, some of the plant material in the
water is aspirated into a bronchus, as seen
through microscopic examination. - A frothy fluid may exude from mouth and nose.
- Prolonged immersion may produce skin wrinkling
and slippage.
81Drowning
- Decomposition is some times held back by a
phenomenon known as saponification the process
where certain soft tissues are said to saponify
or literally to make soap. - The process of saponification begins after
decomposition has loosened and even partially
removed a layer of skin. The underlying fatty
layer is then exposed. This fat, in a warm, moist
environment, undergoes a process called
hydrolysis. - These fatty acid tails from the fat layer combine
with calcium and ammonium to form insoluble
soaps.
82Drowning
- Adipocere is made from the adipose layer of fat
lying just under the skin. - Adipocere appears as a grey-white waxy substance
and its formation of adipocere inhibits further
decomposition. - Dry environments and the presence of oxygen
inhibit adipocere formation. Adipocere usually
indicates a postmortem interval of a least
several months duration.
83Role of the Forensic Pathologist in an Autopsy
- Cause of Death
- medical diagnosis denoting disease or injury
- Proximate vs. immediate.
- Mechanism of Death
- altered physiology by which disease/injury
produces death (arrhythmia, exsanguination, blood
loss) - Manner of Death
- Homicide
- Suicide Not always easy to determine
- Accidental may involve human negligence
- Natural Causes disease or old age
84Participation Question
85Normal Postmortem Changes
- rigor mortis
- livor mortis
- desiccation
- putrefaction
- autolysis
86Rigor Mortis
- Stiffening of muscles seconds or minutes after
death - Rigor mortis results when ATP concentrations
fall - ATP relaxed muscles
- No ATP contracted muscles
- Rigor mortis stops when muscles begin to
decompose 36 hours after death - Rigor mortis is used to estimate time of death
(more discussion later)
87Livor mortis
- Livor mortis purplish discoloration of the body
and organ surfaces - Becomes visible 30 minutes to 2 hours after death
- Results from breakdown of hemoglobin heme
leaking into extravascular tissues - Livor mortis is also used to estimate time of
death.
88Other Normal Postmortem Changes
- Desiccation mucous membranes (lips, eyes)
shrivel and look darkly colored - time depends on location of the body,
environmental conditions - Putrefaction
- Greenish discoloration of skin
- Growth of bacteria unchecked by immune system
causes gas production which may swell, rupture
organs or make soft tissue appear swollen - time again depends on environment of body (few
days to weeks if colder)
89Normal Postmortem Changes
- Autolysis cells begin to break open and ooze
contents - Liquefaction of soft tissues
- Proteins break down into amino acids which are
further degraded by bacteria into biogenic
amines - this is what smells (putrescine, cadaverine)
