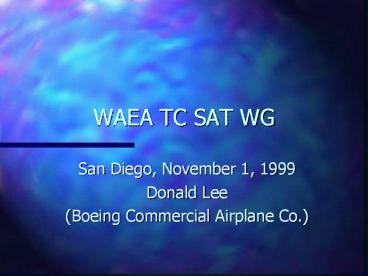

• San Diego, November 1, 1999
• Donald Lee
• (Boeing Commercial Airplane Co.)

2
WAEA TC SAT WG

• Report of 11/1/99 Meeting
• 13 attendees -
• 1 Airline 6 Suppliers 2 OEM
• Reviewed of Draft White Paper
• Reported on ARINC 485 DBS Specific Protocol
  Definitions
• Continued Interface Definition - Cable

3
Scope

• White paper complete 1st Quarter 2000
• Include Existing Systems in Baseline Document.
• Complete work on Block Diagrams Cables.
• Define standard ARINC 485 DBS protocol.
• Cover both Fuselage and Tail/Fin systems.

4
(No Transcript)
5
Agreements

• Satellite system suppliers will define Cabling
  between Antenna and STIA.
• STIA and CEC standardized cable 95 defined.
• Airline and Airframe manufacturer control what
  subset is installed as provisions.
• ARINC 429 satellite protocol definitions will be
  included as appendix to WG White Paper.
• Separate Provisions for Tail Mounted and Fuselage
  Mounted Installations.

6
(No Transcript)
7
ISSUES

• Maximum cable lengths
• Certifiable 75? Coax
• ARINC 485 DBS protocol definitions

8
Homework

• Suppliers and OEM to identify a 70? Coax that
  meets BMS13-65 ADB-100 requirements.
• Complete 485 Protocol Definition addition for
  Satellite TV Systems.
• Roll WG edits into White Paper to support
  November 16th review Telecon.
• Generate final draft of White Paper for review
  and at January meeting.

9
NEXT MEETING

• Telecon scheduled Nov 16, 1999
• Next meeting scheduled for Jan 2000 Universal
  City Hilton
