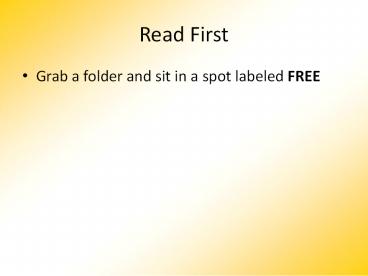

Read First

1
Read First

• Grab a folder and sit in a spot labeled FREE

2
Do First

• 1. Take out a sheet of paper

3
Quiz Corrections

• The average for both quizzes were in the 60
• You will be spending todays class doing test
  corrections to earn up to 10 points back per a
  quiz
• If you havent taken a quiz then you will take
  them in class

4
Correction Directions

• Go through each quiz and highlight any vocabulary
  terms we have covered. Make a list of all the
  terms and define each on a separate sheet of
  paper. Then go back to your questions and answer
  them correctly. You should do this separately
  for each quiz.
• You are doing this independently

5
Points

• You will receive 5 points for the highlighted and
  defined vocabulary
• 30 words 10 points
• 25 words 8 points
• 20 words 6 point
• 15 words 4 points
• 10 words 2 points
• 5 words 1 pointint

• You will receive the other 5 points based upon
  your score
• 95 100 5 points
• 90 95 4 points
• 85 90 3 points
• 80 85 2 points
• 75 80 1 point

6
Prentice Hall EARTH SCIENCE

• Tarbuck Lutgens

?
7
Chapter 5
Weathering, Soil, and Mass Movements
8
5.1 Weathering
? Mechanical weathering occurs when physical
forces break rock into smaller and smaller pieces
without changing the rocks mineral composition.
? In nature three physical process are especially
important causes of weathering frost wedging,
unloading, and biological activity.
9
Increase in Surface Area by Mechanical Weathering
10
5.1 Weathering
1. Frost wedging

• The mechanical breakup of rock caused by the
  expansion of freezing water in cracks and crevices

• Sections of rock that are wedged loose may tumble
  into large piles called talus, which typically
  form at the base of steep, rocky cliffs.

11
Frost Wedging
12
5.1 Weathering
2. Unloading

• Reduced pressure on igneous rock causes it to
  expand and allows slabs of outer rock to break
  off in layers in a process called exfoliation.

3. Biological activity

• The activity of organisms, including plants,
  burrowing animals, and humans, can also cause
  mechanical weathering.

13
Unloading and Exfoliation of Igneous Rocks
14
Weathering and Biological Activity
15
5.1 Weathering
? Chemical weathering is the transformation of
rock into one or more new compounds.
? Chemical Weathering of Granite
Weathering of potassium feldspar produces clay
minerals, soluble salt (potassium bicarbonate),
and silica in solution.
Quartz remains substantially unaltered.
16
5.1 Weathering
? Weathering of Silicate Minerals
Produces insoluble iron oxides and clay minerals
? Spheroidal Weathering
Causes the corners and edges of rock to be more
rounded
17
5.1 Weathering
? Two other factors affecting the rate of
weathering are rock characteristics and climate.
1. Rock characteristics

• Mineral composition and solubility

• Physical features such as joints

18
5.1 Weathering
2. Climate
Temperature and moisture are the most crucial
factors.
Chemical weathering is most effective in areas
with high temperatures and abundant moisture.
19
Spheroidal Weathering
20
5.1 Weathering
? Differential Weathering
Caused by variations in composition
Creates unusual and spectacular rock
formations and landforms
21
Do First

• 1. 30 seconds from bell, turn in corrections
• 2. Think about What makes soil?

22
5.2 Soil
? Soil is part of the regolith that supports the
growth of plants.
Regolith is the layer of rock and mineral
fragments that covers most of Earths land
surface.
Bedrock is the layer of solid rock
23
(No Transcript)
24
5.2 Soil
? Soil Composition

• Soil has four major components mineral
  matter, or broken-down rock humus or organic
  matter, which is the decayed remains of
  organisms water and air.
• Organic matter is mostly made of plants

25
Composition by Volume of Good-Quality Soil
26
5.2 Soil
? Soil Texture
Texture refers to the proportions of different
particle sizes. The three sizes are
- Sand (large size)
- Silt
- Clay (small size)
Loam (a mixture of all three sizes) is best
suited for plant life.
27
Using a Soil Texture Triangle
28
Using a Soil Texture Triangle
29
5.2 Soil
? Soil Structure
Soil particles clump together to give a soil
its structure.
30
5.2 Soil
? The most important factors in soil formation
are parent material, time, climate, organisms,
and slope.
1. Parent material is the material from which the
soil forms. There are two types of soils based
upon their parent material
Residual soilparent material is the bedrock
Transported soilparent material has been
carried from elsewhere and deposited, forms
faster
31
Parent Material and Soils
32
5.2 Soil
2. Time
Important in all geologic processes
The longer a soil has been forming, the
thicker it becomes.
3. Climate

• Greatest effect on soil formation
• Warm, wet climates are best for soil formation

33
5.2 Soil
4. Organisms
Organisms influence the soil's physical and
chemical properties.
Provide organic matter to soil such as waste
or dead organisms

• 5. Slope
• Angle

- Steep slopes often have poorly developed soils.
- Optimum slope is a flat-to-undulating upland
surface.
34
5.2 Soil
5. Slope
Orientation, or direction the slope is facing
- Soil temperature
- Moisture
35
5.2 Soil

• Soil varies in composition, texture, structure,
  and color at different depths.
• Soil horizons are zones or layers of soil.
• A soil profile is a vertical section through all
  the soil horizons.

The A horizon is commonly know as topsoil.
The B horizon is subsoil and contains clay
particles washed out from the A horizon.
The C horizon is between B horizon and
unaltered parent material.
36
Soil Profile
37
A Soil Profile Showing Different Horizons
38
Label the horizons (A, B, C) and parent material.
39
Number the profiles in numerical order of
development.
40
Match the graphs to their profile
41
5.2 Soil
? Three common types of soil are pedalfer,
pedocal, and laterite.
1. Pedalfer
Best developed under forest vegetation
Accumulation of iron oxides and aluminum-rich
clays in the B horizon
42
5.2 Soil
2. Pedocal
Accumulates calcium carbonate
Associated with drier grasslands
3. Laterite
Hot, wet, tropical climates
Intense chemical weathering
43
5.2 Soil
? Water and wind erode soil.
? Rates of Erosion

• Depends upon climate, slope, and type of
  vegetation
• Human activities that remove natural vegetation,
  such as farming, logging, and construction, have
  greatly accelerated erosion.

? Sediment Deposition
Water reservoirs fill with eroded sediment
which has to be removed..
Sediments are contaminated by pesticides and
fertilizers.
44
5.2 Soil
? Controlling Erosion
Planting rows of trees called windbreaks

• Terracing hillsides

• Plowing along the contours of hills

• Rotating crops

45
5.3 Mass Movements
? The transfer of rock and soil downslope due to
gravity is called mass movement.
? Among the factors that commonly trigger mass
movements are saturation of surface materials
with water, oversteepening of slopes, removal of
vegetation, and earthquakes.
46
5.3 Mass Movements
? Geologists classify mass movements based on the
kind of material that moves, how it moves, and
the speed of movement.
1. Rockfalls
A rockfall occurs when rocks or rocks
fragments fall freely through the air.
47
5.3 Mass Movements
2. Slides
In a slide, a block of material moves suddenly
along a flat, inclined surface.
Slides that include segments of bedrock are
called rockslides.
3. Slumps
A slump is the downward movement of a block of
material along a curved surface.
48
Heavy Rains Can Trigger Slumps
49
5.3 Mass Movements
4. Flows
Flows are mass movements of material
containing a large amount of water.
Mudflows move quickly and carry a mixture of
soil, rock, and water that has a consistency of
wet concrete.
Earthflows move relatively slowly and
carryclay-rich sediment.
50
5.3 Mass Movements
5. Creep
Creep is the slow, downhill movement of soil
and regolith.
51
Creep
