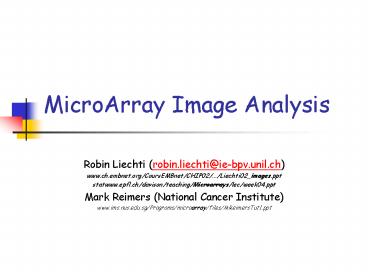

MicroArray Image Analysis

1
MicroArray Image Analysis

• Robin Liechti (robin.liechti_at_ie-bpv.unil.ch)
• www.ch.embnet.org/CoursEMBnet/CHIP02/.../Liechti02
  _images.ppt
• statwww.epfl.ch/davison/teaching/Microarrays/lec/w
  eek04.ppt
• Mark Reimers (National Cancer Institute)
• www.ims.nus.edu.sg/Programs/microarray/files/MReim
  ersTut1.ppt

2
Microarray analysis

• Array construction, hybridisation, scanning
• Quantitation of fluorescence signals
• Data visualisation
• Meta-analysis (clustering)
• More visualisation

3
Technical
4
Affymetrix Gene Chip
5
Images from scanner

• Resolution
• standard 10?m currently, max 5?m
• 100?m spot on chip 10 pixels in diameter
• Image format
• TIFF (tagged image file format) 16 bit (65536
  levels of grey)
• 1cm x 1cm image at 16 bit 2Mb (uncompressed)
• other formats exist e.g.. SCN (used at Stanford
  University)
• Separate image for each fluorescent sample
• channel 1, channel 2, etc.

6
Images 2 color
Spot color Signal strength Gene expression
yellow Control perturbed unchanged
red Control lt perturbed induced
green Control gt perturbed repressed
7
Images 1 color
8
Processing of images

• Addressing or gridding
• Assigning coordinates to each of the spots
• Segmentation
• Classification of pixels either as foreground or
  as background
• Intensity extraction (for each spot)
• Foreground fluorescence intensity pairs (R, G)
• Background intensities
• Quality measures

9
Affymetrix Image Reading

• About 100 pixels per probe cell
• Selects 16-25 brightest contiguous pixels
• Take average of selected pixels
• Variability in best pixels 5-20

Image courtesy of Affymetrix
10
Probe Variation

• Probes vary by two orders of magnitude on each
  chip

Signal from 16 probes for the GAPDH gene on one
chip

• Individual probes dont agree on fold changes
• across chips
• Bright probes more often, but not always, more
  reliable

11
Addressing
12
Addressing (I)

• The basic structure of the images is known
  (determined by the arrayer)

13
Addressing (II)

• The measurement process depends on the addressing
  procedure
• Addressing efficiency can be enhanced by allowing
  user intervention (slow!)
• Most software systems now provide for both manual
  and automatic gridding procedures

14
Example from GenePix software
http//transcriptome.ens.fr/sgdb/tools/download/im
age_analysis_en.pdf
15
Segmentation
16
Segmentation (I)

• Classification of pixels as foreground or
  background -gt fluorescence intensities are
  calculated for each spot as measure of transcript
  abundance
• Production of a spot mask set of foreground
  pixels for each spot

17
Segmentation (II)

• Segmentation methods
• Fixed circle segmentation
• Adaptive circle segmentation
• Adaptive shape segmentation
• Histogram segmentation

Fixed circle ScanAlyze, GenePix, QuantArray
Adaptive circle GenePix, Dapple
Adaptive shape Spot, region growing and watershed
Histogram method ImaGene, QuantArraym DeArray and adaptive thresholding
18
Fixed circle segmentation

• Fits a circle with a constant diameter to all
  spots in the image
• Easy to implement
• The spots need to be of the same shape and size

19
Adaptive circle segmentation

• The circle diameter is estimated separately for
  each spot

• Problematic if spot exhibits oval shapes

20
Adaptive shape segmentation

• Specification of starting points or seeds

• Regions grow outwards from the seed points
  preferentially according to the difference
  between a pixels value and the running mean of
  values in an adjoining region.

21
Histogram segmentation

• Uses a target mask chosen to be larger than any
  other spot
• Foreground and background intensity are
  determined from the histogram of pixel values for
  pixels within the masked area
• Example QuantArray
• Background mean between 5th and 20th percentile
• Foreground mean between 80th and 95th
  percentile
• Unstable when a large target mask is set to
  compensate for variation in spot size

22
Example from GenePix software
http//transcriptome.ens.fr/sgdb/tools/download/im
age_analysis_en.pdf
23
Information extraction
24
Spot intensity

• The total amount of hybridization for a spot is
  proportional to the total fluorescence at the
  spot
• Spot intensity sum of pixel intensities within
  the spot mask
• Since later calculations are based on ratios
  between cy5 and cy3, we compute the average
  pixel value over the spot mask
• alternative use ratios of medians instead of
  means

25
Background intensity

• Motivation spots measured intensity includes a
  contribution of non-specific hybridization and
  other chemicals on the glass
• Fluorescence from regions not occupied by DNA
  should by different from regions occupied by DNA
  -gt could be interesting to use local negative
  controls (spotted DNA that should not hybridize)
• Different background methods Local background,
  morphological opening, constant background, no
  adjustment

26
Local background

• Focusing on small regions surrounding the spot
  mask.
• Median of pixel values in this region
• Most software package implement such an approach

• By not considering the pixels immediately
  surrounding the spots, the background estimate is
  less sensitive to the performance of the
  segmentation procedure

27
Constant background

• Global method which subtracts a constant
  background for all spots
• Some findings suggests that the binding of
  fluorescent dyes to negative control spots is
  lower than the binding to the glass slide
• -gt More meaningful to estimate background based
  on a set of negative control spots
• If no negative control spots approximation of
  the average background third percentile of all
  the spot foreground values

28
No adjustment

• Do not consider the background

29
(No Transcript)
30
References

• Yang, Y. H., Buckley, M. J., Dudoit, S. and
  Speed, T. P. (2001), Comparisons of methods for
  image analysis on cDNA microarray data.
  Technical report 584, Department of Statistics,
  University of California, Berkeley.
• Yang, Y. H., Buckley, M. J. and Speed, T. P.
  (2001), Analysis of cDNA microarray images.
  Briefings in bioinformatics, 2 (4), 341-349.

31
Next time

• Data formats/files for Affymetrix microarrays
• CEL and CDF
• Intro to R
• Reading in microarray data
• Exploring array data
• Assignment
• For the gene, Pbx1, determine the probe design on
  either the mouse Affymetrix 1.0 ST MoGene array
  or the Zebrafish genome array
• ? What is the difference between a probe and a
  probeset?
• You should be able to use resources at
  www.affymetrix.com but you might need to register
  to get access to data files.

32
For Pbx1, How many probes? What are the sequences
of the probes? Where are the probes placed along
the gene structure for Pbx1?
