Transcript and Presenter's Notes

Title: Today 1/16


1

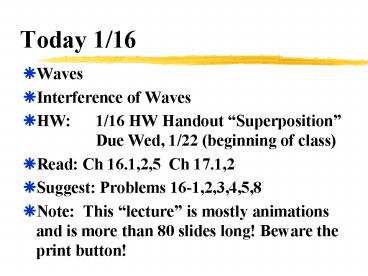

Today 1/16
  • Waves
  • Interference of Waves
  • HW 1/16 HW Handout Superposition Due Wed,
    1/22 (beginning of class)
  • Read Ch 16.1,2,5 Ch 17.1,2
  • Suggest Problems 16-1,2,3,4,5,8
  • Note This lecture is mostly animations and is
    more than 80 slides long! Beware the print button!

2
Things to think about
Consider a traveling wave sound, light, football
stadium, water...
How would you define a wavelength?
How would you define a frequency?
How would you define a wave velocity?
How does the direction of the waves motion
compare to the direction of the individual
particles motion?
What happens when two waves run into each other?
3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
How does the direction of the waves motion
compare to the direction of the individual
particles motion?
Wave moves right while particles move up and
down.Called a transverse wave
Examples are light, water, and football stadium,
sound is a longitudinal wave.
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
Wavelength (?) ?
? 8 units
Wave Velocity (v) ?
Direction is to the right, v ?x/?t
?x is ? and ?t is T, the time for a particle to
go through one complete oscillation, as in SHM.
v ?/T
Frequency, f 1/T also as in SHM.
v ?f
39
What happens when two waves collide?
40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
waves just meeting
44
?
?
?
Superposition!!!
Green wave says move up but blue wave says move
down so...
Particle does not move!!
Superposition means superimpose all effects at
a chosen location then add them up (as vectors)
to get the net effect at that location.
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
(No Transcript)
51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
Now lets put this in motion.
58
Destructive interference
Constructive interference
59
Destructive interference
Constructive interference
60
Destructive interference
Constructive interference
61
Destructive interference
Constructive interference
62
Destructive interference
Constructive interference
63
Destructive interference
Constructive interference
64
Destructive interference
Constructive interference
65
Destructive interference
Constructive interference
66
Destructive interference
Constructive interference
67
Destructive interference
Constructive interference
68
Destructive interference
Constructive interference
69
Destructive interference
Constructive interference
70
Destructive interference
Constructive interference
71
Destructive interference
Constructive interference
72
Destructive interference
Constructive interference
73
Destructive interference
Constructive interference
74
Destructive interference
Constructive interference
75
Destructive interference
Constructive interference
76
Destructive interference
Constructive interference
77
Destructive interference
Constructive interference
78
Destructive interference
Constructive interference
79
Destructive interference
Constructive interference
80
Destructive interference
Constructive interference
This is a standing wave and is a
superposition of two traveling waves. These
two waves interfere with each other causing
locations of constructive and destructive
interference.
81
Destructive interference
Constructive interference
Note that the locations of constructive and
destructive interference alternate. These
locations are called nodes (destructive) and
anti-nodes (constructive).
82
Your first Homework...
