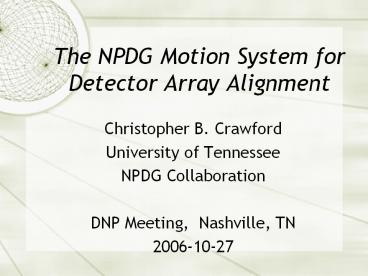

Title: The NPDG Motion System for Detector Array Alignment


1
The NPDG Motion System for Detector Array
Alignment
  • Christopher B. Crawford
  • University of Tennessee
  • NPDG Collaboration
  • DNP Meeting, Nashville, TN
  • 2006-10-27

2
Introduction
  • NPDG probes the Parity Violating (PV)weak
    hadronic interaction
  • Interference of strong (PC) and weak (PV) vertex
  • Low backgrounds -5 x 10-8 expected asymmetry
  • insensitive to MOST background physics processes
    (PC)

UP-DOWN Asymmetry
LEFT-RIGHT Asymmetry
Cartesian invariants
3
Left-Right Asymmetries
  • Three processes lead to LR-asymmetry
  • PC npdg asymmetry
  • Csoto, Gibson, and Payne, PRC 56, 631 (1997)
  • np-gtnp elastic scattering
  • beam steered by analyzing power of LH2
  • eg. 12C used in p,n polarimetry at higher
    energies
  • P-wave contribution vanishes as k3 at low energy
  • Mott-Schwinger scattering
  • interaction of neutron spin with Coulomb field of
    nucleus
  • electromagnetic spin-orbit interaction
  • analyzing power 10-7 at 45 deg

0.23 x 10-8
2 x 10-8
10-8
at 2 MeV
(Michael Gericke et al.)
4
Motivation
  • U-D and L-R asymmetry mixing
  • from misalignment (rotation) of detectors
  • goal suppression LR asymmetry by factor of
  • 100-1 sin(0.57 deg)
  • Geometry factors
  • account for extent of target and detector
  • can be measuredinstead of MC calculation
  • Detector systematics
  • demonstrate understanding of rates

5
Formalism
  • detector yield depends on distance
  • extract positions from the gradient

6
CsI(Tl) Detector Array
  • 4 rings of 12 detectors
  • 15 x 15 x 15 cm3 each
  • VPDs insensitive to B field
  • detection efficiency 84
  • current-mode operation
  • 5 x 107 gammas/pulse
  • counting statistics limited

7
Detector Motion Stand
  • constructed at TRIUMF
  • lt 0.001 position precision
  • extensive safety features
  • LabVIEW computer interface

8
Data and Analysis
  • yields measured over 5x5 grid in x and y
  • over-determined for study of linearity
  • targets B4C, Cd, LH2
  • analysis
  • detector rates normalized by beam monitors
  • pedestals and empty target subtracted
  • Y(dx,dy) fit to obtain absolute detector
    positions
  • relative detector positions compared with
    physical survey of array
  • need to be corrected for extended geometry by
    Monte Carlo

9
Results - Cd target, ring 2
?x 5.6 mm ?y 2.8 mm
x position (mm)
x position (mm)
10
Preliminary Results, LH2
  • taken after target started warming up

11
Conclusions
  • technique for measuringdetector positions
    demonstratedwith success on Cd target
  • 5 mm precision 1 deg.
  • 50 x suppression of L-R asymmetry
  • LH2 target measurements in progress
  • first run affected by venting of target
  • next run in December
