CELL BIOLOGY The Early Discoveries

1

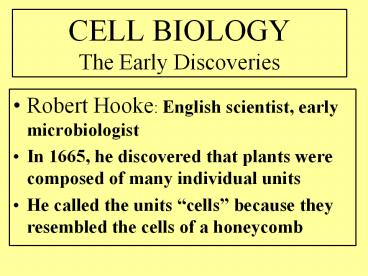

CELL BIOLOGYThe Early Discoveries

• Robert Hooke English scientist, early
  microbiologist
• In 1665, he discovered that plants were composed
  of many individual units
• He called the units cells because they
  resembled the cells of a honeycomb

2
(No Transcript)
3
Robert Brown (1830s) - Showed that cells contain
a central nucleus, and are filled with fluid

• Matthias Schleiden (1838)
• Showed that ALL plants are made of
• cells, and that cells are the basis for
• various functions of the plant

4
Theodor Schwann (1839) -Showed that all animals
are made of cells, and that cells are the basis
for various functions
Rudolf Virchow (1858) -Showed that cells come
from other living cells
5
CELL THEORY
1) All organisms are composed of cells, which are
the basic units of structure and function
2) All cells are produced from other cells
6
Cell Characteristics
Cells can vary greatly in size, from bacteria to
ostrich eggs
Cell shapes are also extremely varied, from
spheres to rods to cubes
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
Cell Functions
Individual cells take in and burn food for
energy, rid themselves of waste, exchange gases,
and make new living material.
11
Examples of Cell Function

• Storage (Orange cells)
• Structure (Bone cells)
• Transport (Blood cells)
• Movement (Muscle cells)
• Energy Capture (Leaf cells)
• Communication (Nerve cells)

12
The Cell and its Environment

• The Cell Membrane
• serves as a boundary between the cell and its
  environment
• holds the contents of the cell together
• acts as a gatekeeper for the cell (keeps some
  things out, lets others in)

13
(No Transcript)
14
Properties of Cell Membranes
The cell membrane is 1) Semi-permeable 2)
Flexible and Strong
15
Structure of the Cell Membrane

• Composed mostly of Phospholipid molecules
• Also is imbedded with large proteins
• Some proteins go all the way through the membrane

16
Electron micrograph of the cell Membrane in
cross section
17
The phospholipid bi-layer of a cell membrane
18
(No Transcript)
19
Phospholipid layers
Proteins
20
(No Transcript)
21
(No Transcript)
22
Crossing the Membrane
The cell membrane allows materials to pass into
and out of the cell in a variety of ways.
23
1) Diffusion -movement of particles from an
area of high concentration to an area of low
concentration -will work until both
concentrations are equal. This is
called Dynamic Equilibrium
24
Concentration Gradient
High Low
25
Diffusion is responsible for most gases crossing
the membrane barrier.
What gases would need to cross into or out of a
cell?
26
2) Osmosis -movement of water into and out of a
cell across the membrane.
-Osmotic Balance is similar to Dynamic
Equilibrium, but relates to water , not particles

27
Passive Transport/Facilitated Diffusion
-For larger molecules and particles -Molecules/par
ticles do not enter between the phospholipids,
but through a special channel in a protein
28
Specific sites on the membrane allow facilitated
diffusion Cross-membrane proteins make channels
for things to move in or out.
29
Active Transport
-Cell uses energy to move particles against a
concentration gradient. -Things move from LOW
concentration to HIGH -Similar to Facilitated
Diffusion, but cell uses energy to go against a
concentration gradient.
Compare and Contrast Active Transport and
Facilitated Diffusion
30
(No Transcript)
