Title: RESPIRATORY PROTECTION

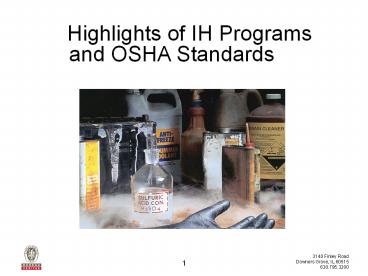

1
Highlights of IH Programs and OSHA
Standards
2
INTRODUCTION
  • Hazard Communication
  • Hearing Conservation
  • Personal Protective Equipment
  • Respiratory Protection
  • Heat Stress
  • Cold Stress
  • Confined Spaces
  • Ergonomics
  • Radiation

3
INTRODUCTION
  • You should already be very familiar with the
    specific requirements of the OSHA standards.
  • This presentation highlights programs as they
    relate to potential employee exposures to
    environmental stressors.
  • It does not cover all aspects of each standard.

4
HAZARD COMUNICATION
The OSHA Standard was written to ensure that
employers and employees know about work hazards
and how to protect themselves so that the
incidence of illnesses and injuries due to
hazardous chemicals is reduced.
Hazard Communication Program
Container Labeling
Material Safety Data Sheet
MSDS
Program
Label
5
HAZARD COMUNICATION
  • How can workplace exposures be minimized?
  • Perform a thorough hazard assessment
  • Be informed about the hazards of the chemicals
    you use
  • This information is obtained from MSDSs and
    labels
  • Communication of hazards to others in area
  • Hazards
  • Detecting exposures, symptoms
  • Protective measures

6
HAZARD COMUNICATION
  • Ensure containers are labeled properly.
  • Each container of hazardous chemicals must be
    labeled or marked with
  • Identity of the chemical
  • Appropriate hazard warnings
  • Name and address of the responsible party

7
HAZARD COMUNICATION
  • Material Safety Data Sheets (MSDS)
  • Prepared by the chemical manufacturer or importer
    describes
  • Physical hazards, such as fire and explosion
  • Health hazards, such as signs of exposure
  • Routes of exposure
  • Precautions for safe handling and use
  • Emergency and first-aid procedures
  • Control measures

8
HAZARD COMUNICATION
  • MSDS provides information about the
  • Physical and chemical characteristics
  • Health effects
  • Exposure limits
  • Carcinogenicity (cancer-causing)
  • Identification (name, address, and telephone
    number) of the organization responsible for
    preparing the sheet
  • Must be readily accessible to employees in their
    work area

9
HEARING CONSERVATION
10
(No Transcript)
11
HEARING CONSERVATION
When noise exposures equal or exceed 85 dBA (as
an 8-hour TWA), a hearing conservation program
must be implemented.
12
HEARING CONSERVATION
  • Types of Hearing Loss
  • Conductive
  • Sensorineural

13
HEARING CONSERVATION
  • Conductive
  • Not caused by noise exposure
  • Disorder in the external or middle ear that
    prevents sound from reaching the inner ear
  • e.g. wax in ear, infection, etc.
  • Inner ear intact
  • Non-occupational
  • Reversible

14
HEARING CONSERVATION
  • Sensorineural
  • Poor transmission of sound by bone or nerve
    pathways
  • Damage to the cochlea and/or auditory nerve
  • Deep structures of the ear are damaged
  • Induced by occupational noise
  • Not reversible

15
(No Transcript)
16
HEARING CONSERVATION
There are two sound measuring instruments
typically used for noise monitoring.
Area Sampling
Personal Sampling
Sound Level Meters
Noise Dosimeters
17
RESTRICTED AREAS
Tool Noise level will probably exceed
Air gun 108
Air hammer 110
Air track drill 110
Asphalt grinder 111
Backhoe 85
Belt sander 90
Bored piledriver using auger (at 15 m)- the acoustical conditions of measurement were not reported 81
Brick saw 94
Bulldozer 87
Chipper, pneumatic 100
Chipping gun 96
Chopsaw 92
Circular saw 88
18
HEARING PROTECTION
  • Earmuffs
  • Ear Plugs

19
HEARING PROTECTION
  • Noise Reduction Rating (NRR)
  • A rating that is assigned to specific personal
    hearing protection that gives an estimated
    reduction when the protection is worn properly.
  • Only valid if HP worn correctly

NO
20
HEARING PROTECTION
There are four methods for determining the
adequacy of hearing protection. The most common
is
Manufacturers Noise Reduction Rating 25 dBA
Employees Exposure 100 dBA (8-hour TWA)
Will not work
Attenuation 100 dBA - (25 dBA - 7dBA)/2 91 dBA
Attenuation calculated using OSHA method
21
PERSONAL PROTECTIVE EQUIPMENT
22
PERSONAL PROTECTIVE EQUIPMENT
  • Basic Principles
  • Must protect response personnel from exposure
  • Must know what chemicals are involved in exposure
  • Must know general concentration of exposure
  • Must select appropriate PPE materials
  • Must know limitations

23
PERSONAL PROTECTIVE EQUIPMENT
  • Selection and Use
  • Prepare ahead of time!
  • There is not one material that protects against
    all chemicals!
  • Protect eyes, head, face, hands, body, feet

24
PERSONAL PROTECTIVE EQUIPMENT
  • Consider performance requirements when selecting
  • Aging resistance
  • Chemical resistance
  • Cleanability
  • Color
  • Comfort
  • Durability
  • Flexibility
  • Strength
  • Size
  • Service Life
  • Thermal Limits

25
PERSONAL PROTECTIVE EQUIPMENT
  • Chemical Resistance
  • Permeation
  • Degradation
  • Penetration

26
PERSONAL PROTECTIVE EQUIPMENT
  • Permeation
  • Diffusion of chemicals through intact material

27
PERSONAL PROTECTIVE EQUIPMENT
  • Degradation
  • A loss or change in one or more physical
    properties of a protective clothing material due
    to contact with a chemical
  • A chemical process

28
PERSONAL PROTECTIVE EQUIPMENT
  • Penetration
  • The flow of a chemical through closures, porous
    materials, seams and pinholes or other
    imperfections in a protective clothing material
    on a non-molecular level
  • A physical process

29
PERSONAL PROTECTIVE EQUIPMENT
  • Must know the type of chemical you are up
    against, as chemicals will break through
    incompatible materials.
  • Breakthrough times (min.) are the times observed
    from the start of the test to first detection of
    the chemical on the other side of the sample
    material.
