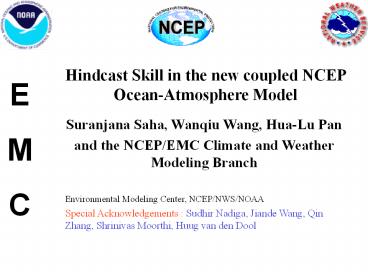

Hindcast Skill in SST Prediction in the new coupled NCEP Ocean-Atmosphere Model

1

Hindcast Skill in the new coupled NCEP
Ocean-Atmosphere Model
E M C
Suranjana Saha, Wanqiu Wang, Hua-Lu Pan and the
NCEP/EMC Climate and Weather Modeling
Branch Environmental Modeling Center,
NCEP/NWS/NOAA Special Acknowledgements Sudhir
Nadiga, Jiande Wang, Qin Zhang, Shrinivas
Moorthi, Huug van den Dool
2
Introduction A new global coupled
atmosphere-ocean model has recently been
developed at NCEP/EMC. Components a) the
T62/64-layer version of the current NCEP
atmospheric GFS (Global Forecast System) model
and b) the 40-level GFDL Modular Ocean Model
(version 3) Note Direct coupling with no flux
correction This model will replace the current
operational NCEP coupled model (CMP14) for SST
prediction in 2004.
3

• Hindcast Skill Assessment
• 5-member ensemble over 22 years from 1981-2002
• January and April initial conditions
• Other months to follow
• 9 month runs
• Initial atmospheric states 0000 GMT 19, 20, 21,
  22, and 23 for each month
• Reanalysis-2 archive
• .
• Initial ocean states NCEP GODAS (Global Ocean
  Data Assimilation System) 0000 GMT 21st of each
  month
• Same for all runs
• GODAS operational September 2003

4

• Hindcast Skill Assessment (cont)
• So far 220 runs have been made
• Hindcast skill
• Estimated after doing a bias correction for
  each year
• Uses model climatology based on the other years
• Anomaly correlation skill score for Nino 3.4
  region SST prediction
• Skill maps
• Global SST
• U.S. temperature and precipitation.
• Comparisons with CMP14 and CASST

5
Observed
Coupled Red monthly bias
6

• Composite Warm and Cold Events
• Events exceed ERSST variance by
• 1.0 SD (warm)
• 0.75 SD (cold)
• Heavy black line is mean

36 mo
- 36 mo
Peak
7
SST Climatology on Equator
Red coupled model
8
Ensemble Mean
CASST
CMP14
April IC
9
CASST
Ensemble Mean
January IC
CMP14
10
RMS Error April
11
RMS Error January
12
Observed
6 Month Lead (November) from April IC SST
anomaly for 1981-2002 Note Amplitudes
13
Observed
6 Month Lead (August) from January IC SST
anomaly for 1981-2002 Note Amplitudes
14
Hindcast Seasonally (3 month) Averaged SST
Anomaly Correlation April IC Note large
persistent skill in tropics
15
Hindcast Monthly Averaged SST Anomaly
Correlation April IC June-September Left New
Coupled System Right CMP14
16
Hindcast Monthly Averaged SST Anomaly
Correlation April IC October-January Left New
Coupled System Right CMP14
17
Hindcast Seasonally (3 month) Averaged SST
Anomaly Correlation January IC Note large
persistent skill in tropics
18
Hindcast Seasonally Averaged SST Anomaly
Correlation January IC Left New Coupled
System Right CMP14
19
Hindcast 3 month Averaged U. S. Surface
Temperature Anomaly Correlation April IC Note
areas of persistent skill gt 60 at up to 6 month
lead
20
U. S. Surface Temperature Hindcast Skill 3 Month
Averages April IC Comparison with CPC CCA Method
Note Coupled System skill complementary to CCA
21
U. S. Surface Temperature Hindcast Skill 3 Month
Averages January IC Comparison with CPC CCA
Method Note Coupled System skill complementary
to CCA
22
Hindcast 3 month Averaged U. S. Precipitation
Anomaly Correlation April IC Note areas of
persistent skill gt 60 at up to 6 month lead
23
U. S. Precipitation Hindcast Skill 3 Month
Averages April IC Comparison with CPC CCA Method
Note Coupled System skill complementary to CCA
24
U. S. Precipitation Hindcast Skill 3 Month
Averages January IC Comparison with CPC CCA
Method Note Coupled System skill complementary
to CCA
25
MJO Forecasts (W. Wang)

• Experiments

• damp GFS03 with damped SST anomalies
• clim GFS03 with climatological SSTs
• amip GFS03 with observed SSTs
• coup CFS03 with MOM3 ocean analysis
• All forecasts to 45 days
• Composite results

26
(Max pos. ampl. Over WPAC)
Phase 3
(Max pos. ampl. Over IO)
Phase 2
Phase 4
Phase 1
(Decay)
(Initiation)
27
Days 1-30
Observed
SST Expt.
Damped
Climo
AMIP
Coupled
Note coupling necessary for propagation in
Phases 1-3
28
Summary and Conclusions

• CFS03 hindcast skill for January and April
  initial conditions (1981-2002 ) have been
  evaluated
• For April, the SST AC skill over Nino 3.4 is
  better than CMP14 and CASST at all leads
• For January, the SST AC skill over Nino-3.4 is
  better than CMP14 and CASST for all leads, except
  lead 2

29
Summary and Conclusions (cont)

• Ensemble mean forecasts for U.S. temperature and
  precipitation show comparable skill to CPCs CCA
  method.
• This skill is complementary to CCA as it
  manifests itself in different geographical areas
  and can be used in CPCs operational seasonal
  consolidated forecast.
• Hindcasts for the rest of the calendar months are
  being performed
• Implementation is being planned for late 2004

30
New Climate Positions at NCEP/EMC

• UCAR Visiting Scientist Position at NCEP/EMC
• Work with NCEP Coupled Model
• http//www.earthworks-jobs.com/climate/ucar3101.ht
  ml
• NCEP Climate Team Leader (GS-15)
• Coordinate development activities with community
• Provide strategic guidance on NCEPs Climate
  Numerical Modeling activities
• Participate actively in development activities
  with EMC staff
